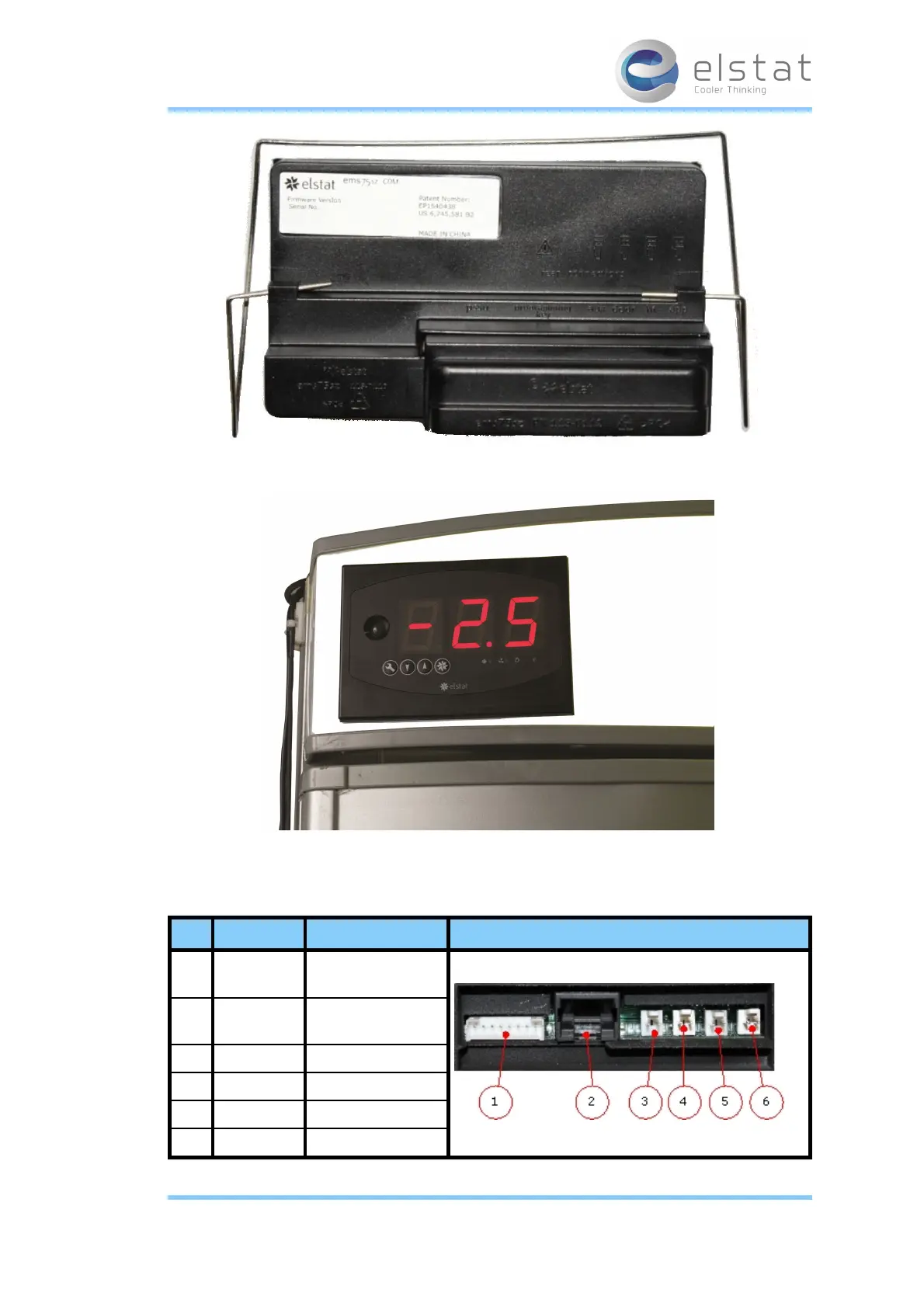

The image below shows the control display module fitted correctly into a header panel as seen from
the front of the cooler.
3.12 External control display module – electrical connections
The electrical connections of the external variant control display module as follows:
Label Description Connectors
1
Interface cable -
to power supply module
2
Parameter
programming port
3 aux Evaporator sensor
4 door Door switch
5 ht Condenser sensor
6 app Appliance sensor
16 of 86
27 February 2014
