The screws must be tightened to a maximum torque of 0.5Nm (0.37lbfft).
Caution: Using rivets invalidates the warranty.

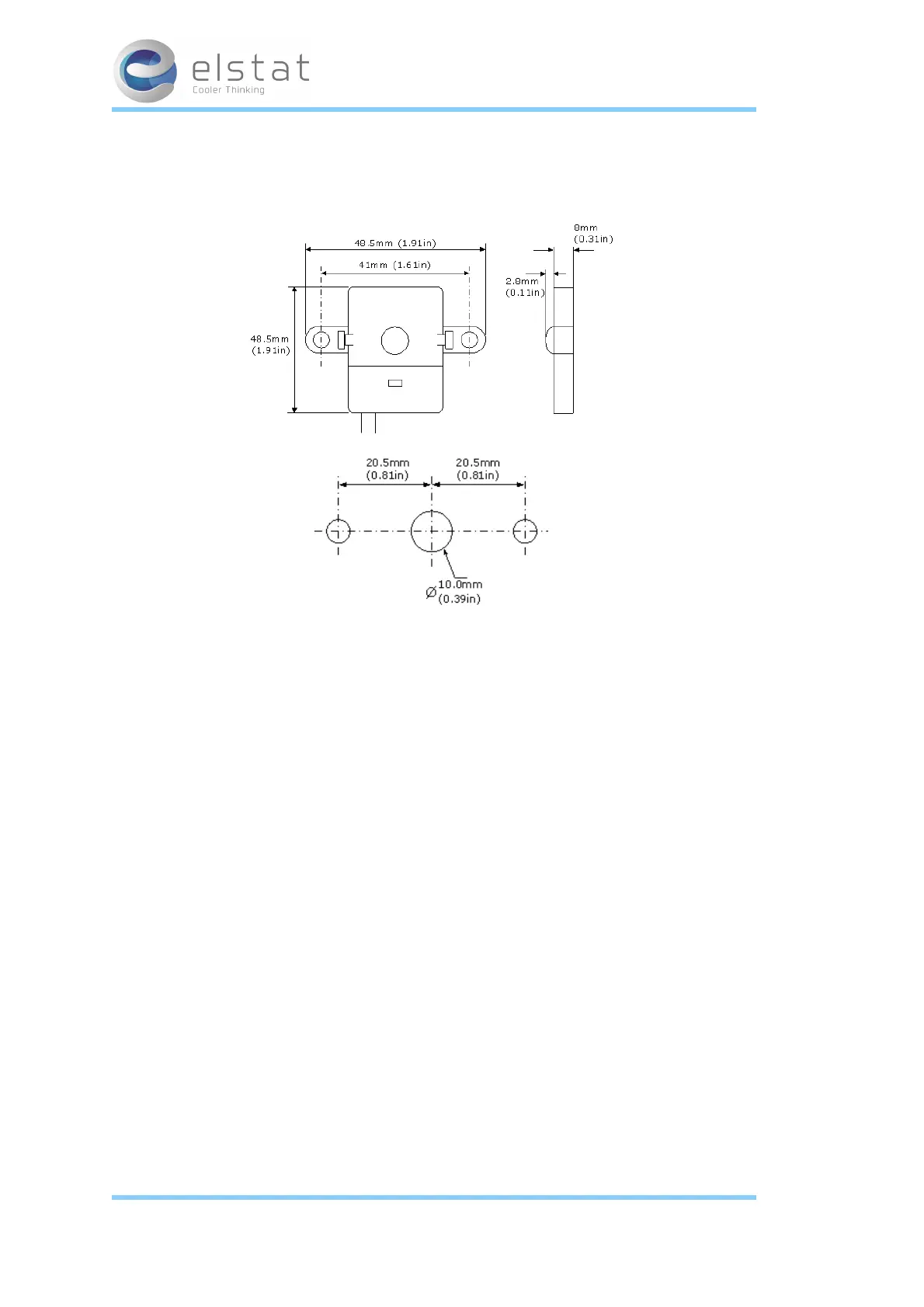

The dimensions and drilling details of the motion sensor are shown below.
The dimensions of the mounting holes are shown below.
