Installation Instructions
As the SPU can rotate almost 360°, a stopping pin should be in place to
prevent the SPU from rotating beyond its limits. Please see Figure 3-1.
Before rotating, loosen the three socket screws. Rotation of the SPU should
be smooth. When encountering resistance, stop rotating the SPU and check
Be Aware!
Special attention needs to be taken when the UFM Series 6 must
be installed in accordance with MID. Please see the Operation
and Maintenance Manual of your particular flow meter, latest valid
revision.
For FM and CSA Approved UFM Series 6 Meters, please also
see the related control drawings and installation remarks in the
UFM Series 6 Safety Instructions manual.
Please refer to Appendix I – References for more information
regarding these documents.

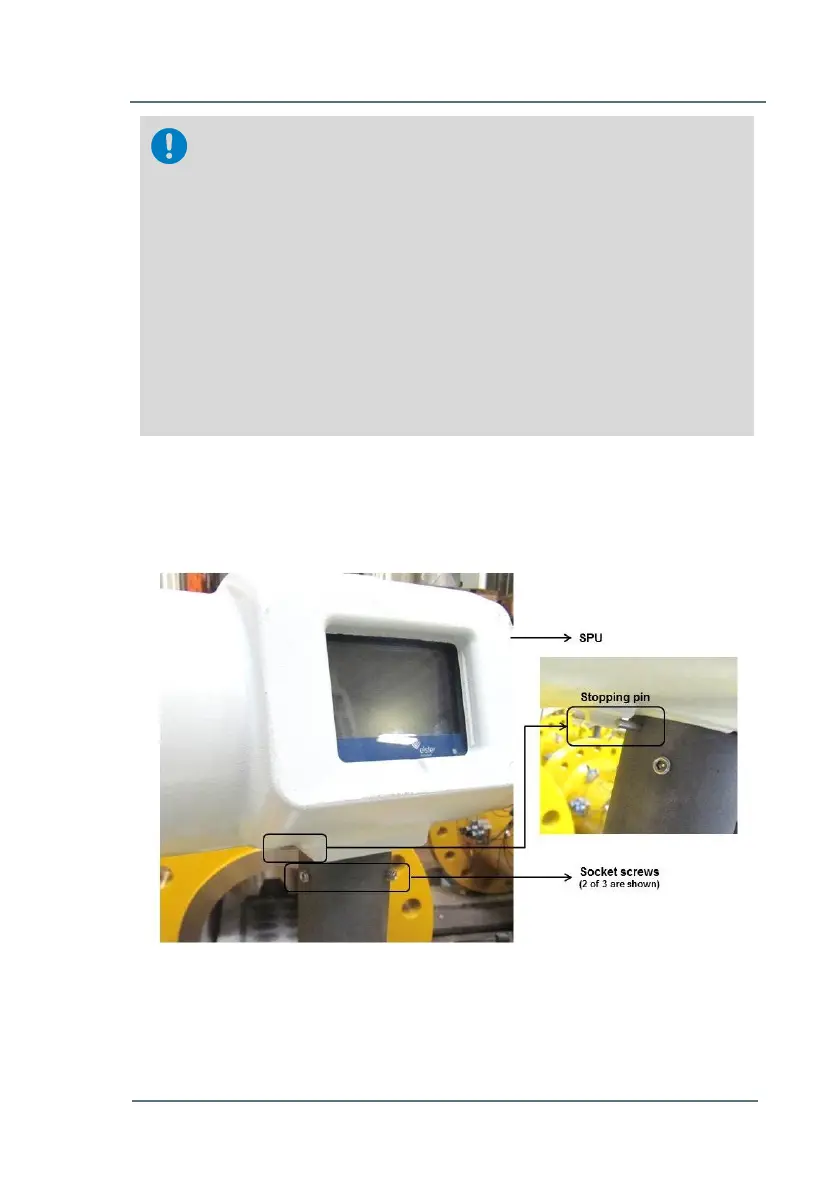

Figure 3-1: Rotation of the SPU
