12 A100C - BS Single Phase Electronic Meter
_____________________________________________________________________________

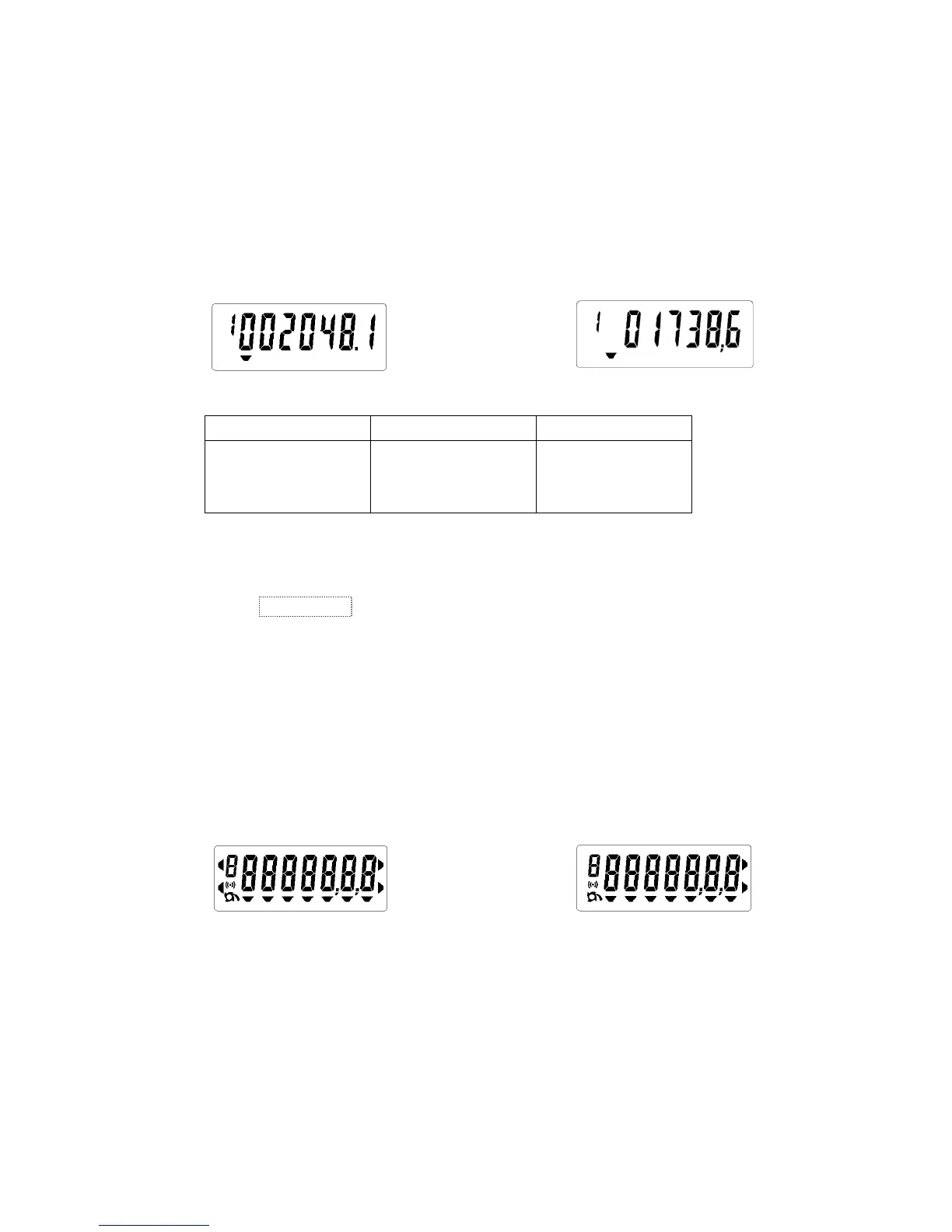

12.2 Display Modes (all meter types)
The resolution of the display can be set at manufacture to 7, 6 or 5 digits.
The decimal point indicator can be configured to be a point or a comma and set to 0, 1 or 2
places.
Seven digit resolution to one Six digit resolution to one
decimal place. Point separator decimal place. Comma
separator
7 Digits 6 Digits 5 Digits
1 2 3 4 5 6 7
2 3 4 5 6 7. 8
3 4 5 6 7. 8 9
2 3 4 5 6 7
3 4 5 6 7. 8
4 5 6 7. 8 9
3 4 5 6 7
4 5 6 7. 8
5 6 7. 8 9
Internal storage is :- 1 2 3 4 5 6 7. 8 9 0
For 6 digit registration the display is display is a window of this.
e.g. 1 2 3 4 5 6 7. 8 9 0
12.3 All Meter Types
The following items may be included in the display sequence.
Segment Test Pattern
The Test Pattern is always displayed at power up. All segments should be 'on'.
The Test Pattern is optional in the display sequence.
Power Up Display Sequence
Note: The two chevrons to the left vertical of the display are included in the Test Pattern only
at power up.
© Elster Metering Limited - M130 300 2C - 5.2007
