Elster A100C User Manual

24 A100C - BS Single Phase Electronic Meter
_____________________________________________________________________________
U
n
I
b
I
max
SINGLE PHASE (A100C) MODEL CODE
MODEL
TYPE (nameplate)
SJ1LABE
S S G N S J -
B
N
PRODUCT/TERMINATION
Single Phase, BS terminal arrangement (L-N-N-L)
SJ
SERVICE TYPE
1-phase 2-wire
1
CURRENT RANGE
20-100A BS only (Imax any integral of Ib up to 100A)
L
10-100A BS only (Imax any integral of Ib up to 100A)
M
5-100A BS only (Imax any integral of Ib up to 100A)
N
VOLTAGE
220 – 250V
A
110 – 127V
C
-
FREQUENCY, ACCURACY CLASS
50 Hz, Class 1 kWh (IEC62053-21) – see note 1, 4
B
50 Hz, Class 2 kWh (IEC62053-21) – see note 1
C
60 Hz, Class 1 kWh (IEC62053-21) – see note 1, 4
E
-
60 Hz, Class 2 kWh (IEC62053-21) – see note 1
F
-
TARIFF & HARDWARE CONFIGURATION
Single Rate, kWh registration
B
Two-rate, kWh registration, switched to neutral
E
DISPLAY CONFIGURATION
Customer specified display configuration S
DISPLAY CYCLE, REGISTER SOURCES
Customer specified display sequence and register sources S
TEST INDICATOR(S) (see important note 3)
Non-modulated 40ms pulses G
PULSING/ABSOLUTE OUTPUT(see important note 3 overleaf)
No pulse or serial data output N
SO pulse output, tied to neutral, one auxiliary terminal (2-rate only) P
SO pulse output, floating, two auxiliary terminals (1-rate only) Q
Absolute serial data output - tied to neutral, one auxiliary terminal (2-rate only, not with 1107 port) S
Absolute serial data output - floating, two auxiliary terminals (1-rate only, not with 1107 port) T
COMMUNICATIONS
IrDA optical port, data rate set at time of manufacture S
IEC 1107 bidirectional optical port, max baud rate and 20ms turnaround option set at manufacture T
OTHER OPTIONS
Non – extended BS terminal cover J
Extended BS terminal cover, no cut-out for cables K -
Extended BS terminal cover, with cut-out for cables U -
Clear short non-removing terminal cover, slotted brass large head main terminal screws X -
Supplied without terminal cover Z
-
VERSION
Original (changed to denote hardware and firmware changes, not functionality) OBSOLETE
-A
Firmware 2-01168-D (FLAG)
-B
Firmware 2-01167-E (IrDA)
-C
SPECIAL ADDITIONS
None available N
- Indicates types approved by OFGEM, Approval Number 984

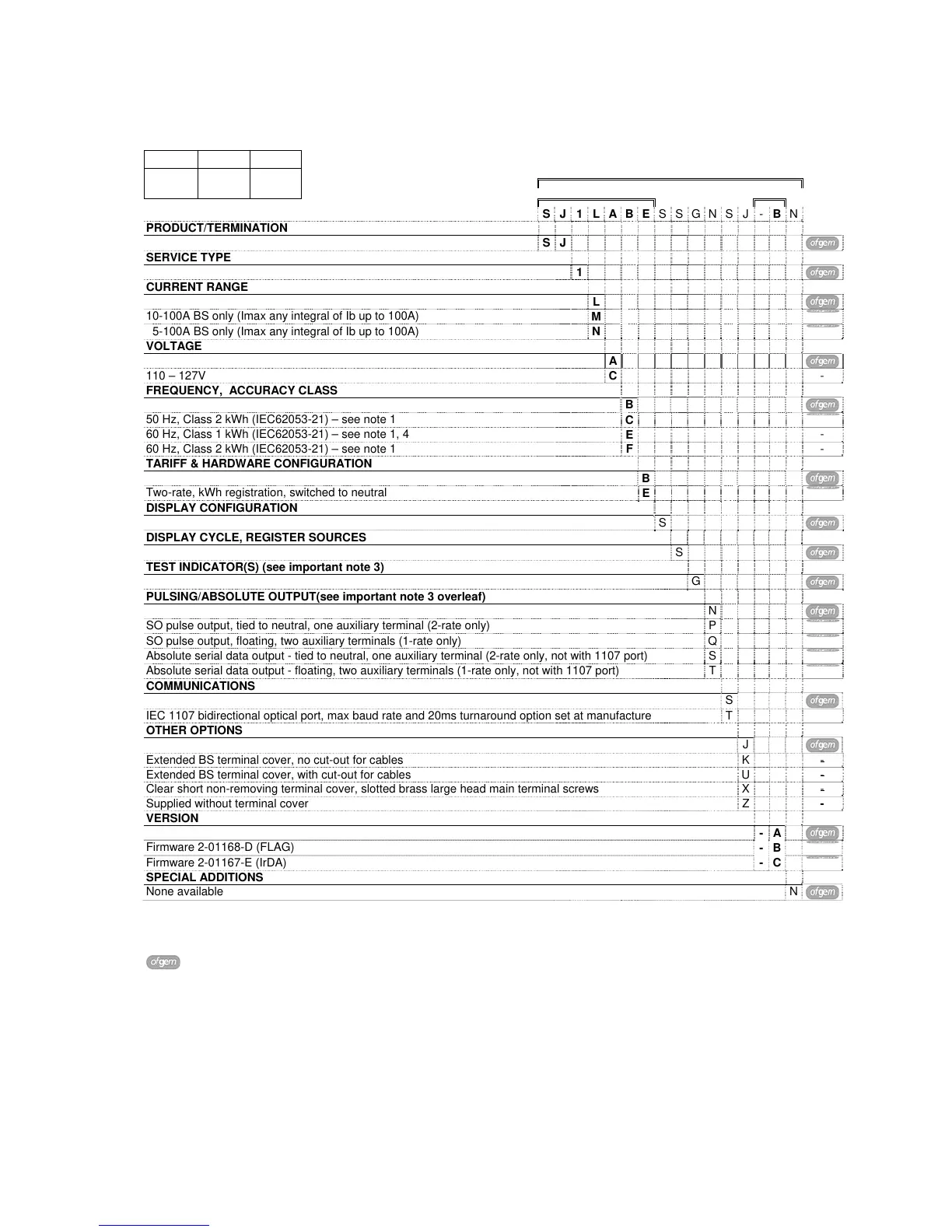

Figure 1 - Model Code
© Elster Metering Limited - M130 300 2C - 5.2007
