16 A100C - BS Single Phase Electronic Meter
_____________________________________________________________________________

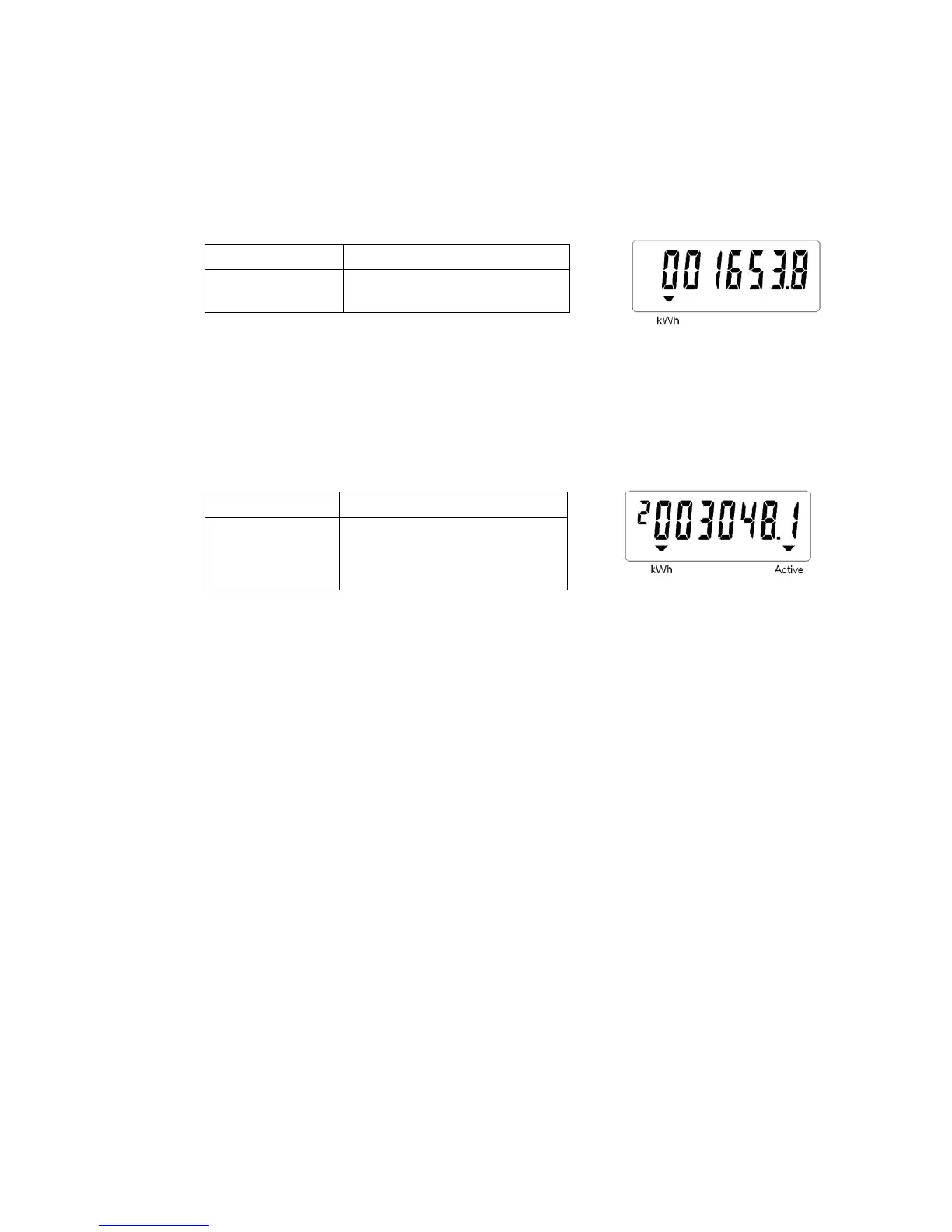

Single Rate kWh Import/Export Meter – normal operation
Chevron 1 indicates Import kWh is displayed. Chevron 3 indicates that export kWhs is being
displayed.
Chevrons
Reference id
1 - kWh (import)
3 - kWh (export)
Not used
2 Rate kWh Import/Export Meter – normal operation
Chevron 1 indicates Import kWh for Rate 1, Rate 2 or cumulative is displayed. The 'reference
id' identifies the rate being displayed. Chevron 3 indicates that export kWhs is displayed.
Chevron 7 indicates that rate being displayed is currently active.
Chevrons Reference id
1 - kWh (import)
3 - kWh (export)
7 - Active Rate
1 = Rate 1
2 = Rate 2
C = Cumulative (Rate 1 + Rate 2)
© Elster Metering Limited - M130 300 2C - 5.2007
