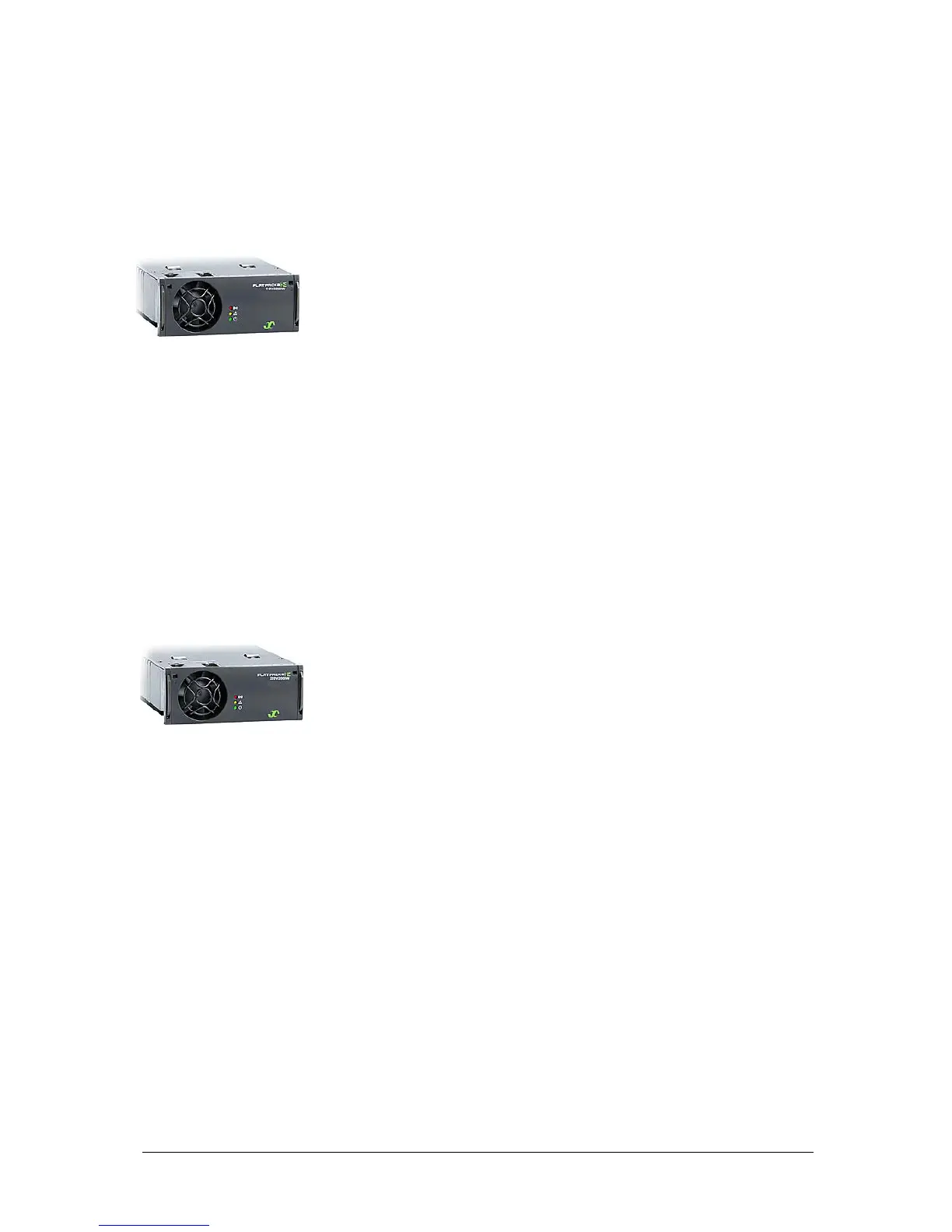

Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial)
Part number 241115.805. High efficiency rectifier for DC
power supply facilities with or without battery in all areas of
industry, power generation and power distribution.
With efficiency up to 94.4%, the losses have been reduced
by 50% compared to the current industry standard.
The HE rectifier also has an extremely high efficiency at low
load, which historically has been a drawback with most
modern soft switching technologies.
The wide DC output range (WOR) can be used in both
110VDC and 125VDC systems, and is suitable for charging
both NiCd and lead acid battery banks. For NiCd battery
banks the any number cells from 84 to 105 are fully
supported.
The “Flatpack2 Rectifier 110VDC, 2000W HE WOR” is only to
be used in Smartpack2-based or UPC4-based power systems.
The rectifiers are to be mounted in dedicated High Current &
Voltage racks (4AC-HC-HVDC Power Shelves, Part 268035).
Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial)
Part number 241115.815. High efficiency rectifier for DC
power supply facilities with or without battery in all areas of
industry, power generation and power distribution.
With efficiency up to 95.3%, the losses have been reduced
by 50% compared to the current industry standard.
The HE rectifier also has an extremely high efficiency at low
load, which historically has been a drawback with most
modern soft switching technologies.
The wide DC output range (WOR) is suitable for charging
both NiCd and lead acid battery banks. For NiCd battery
banks the any number cells from 170 to 180 are fully
supported.
The “Flatpack2 Rectifier 220VDC, 2000W HE WOR” is only to
be used in UPC4-based power systems.
The rectifiers are to be mounted in dedicated High Current &
Voltage racks (4AC-HC-HVDC Power Shelves, Part 268035).
