1 Introduction
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 5
Flatpack2 PS System ~ Hybrid Solar
The example in Figure 2 represents a typical hybrid, solar Flatpack2 PS system for DC
power supply of telecom and industrial equipment.
The system is fed from strings of solar panels (DC feed), and uses a diesel generator as
AC feed backup at night and during cloudy days, thus ensuring extra battery charging.
Extra AC feed backup can also be supplied by wind turbines or from the Mains grid.
The hybrid, solar system consists of paralleled solar chargers and rectifiers in power
shelves, Smartpack2-based system controllers and DC distribution unit. Battery banks,
LVD contactors, etc. are typically also a part of the system.
The Smartpack2 Master controller serves as the local user interface, while the
Smartpack2 Basic controller monitors the system’s internal wiring. The I/O Monitor2 CAN
node provides the system with input monitoring and output controlling signals.
You can configure the system from a standard web browser, via WebPower, or installing
the PowerSuite application in a computer.

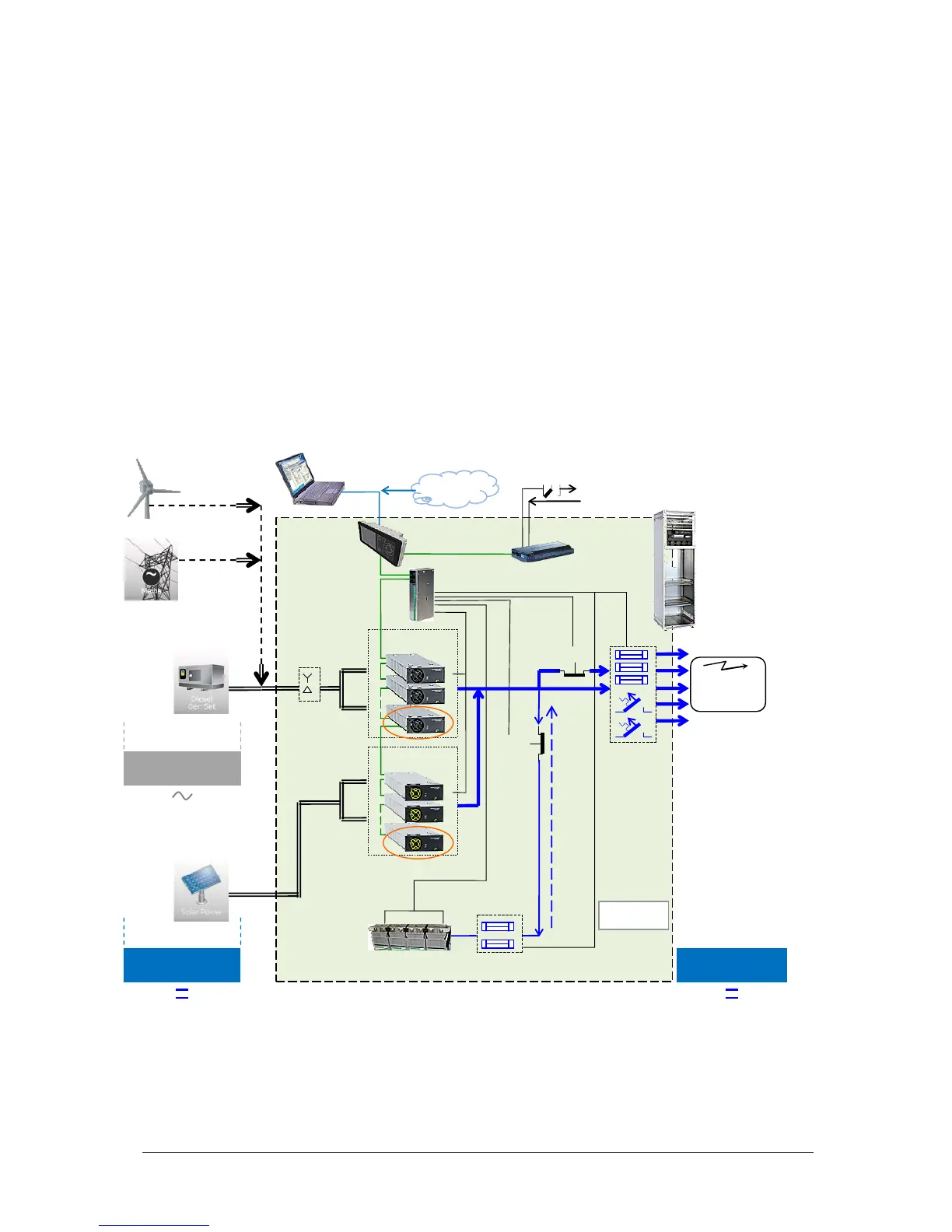

Figure 2 Typical hybrid, solar Flatpack2 PS system for DC power supply of telecom or
industrial equipment
Battery string #1
AC mains
supply
selector
Temp.
Sensors
LVLD
LVBD
Fuse Alarm
Battery
Fuses
Load Fuses
& MCBs
Flatpack2 HE
Rectifiers
CAN Bus
DC
Distribution
DC Supply
(48V)
Flatpack2
Hybrid Solar
System
Ethernet
cable
Internet
Telecom and
Industrial
equipment
Smartpack2
Master Controller
Smartpack2
Basic Controller
Alarm Outputs NC-C-NO
Config. Inputs
WebPower
(web-based
user interface)
I/O Monitor2
CAN node
Flatpack2 HE
Solar Chargers
Wind Turbine
AC Mains Grid
(230VAC or 400VAC)
AC Generator
Solar Panels
AC Supply
(Single- or three-
phase)
DC Supply
(170-230VDC)
