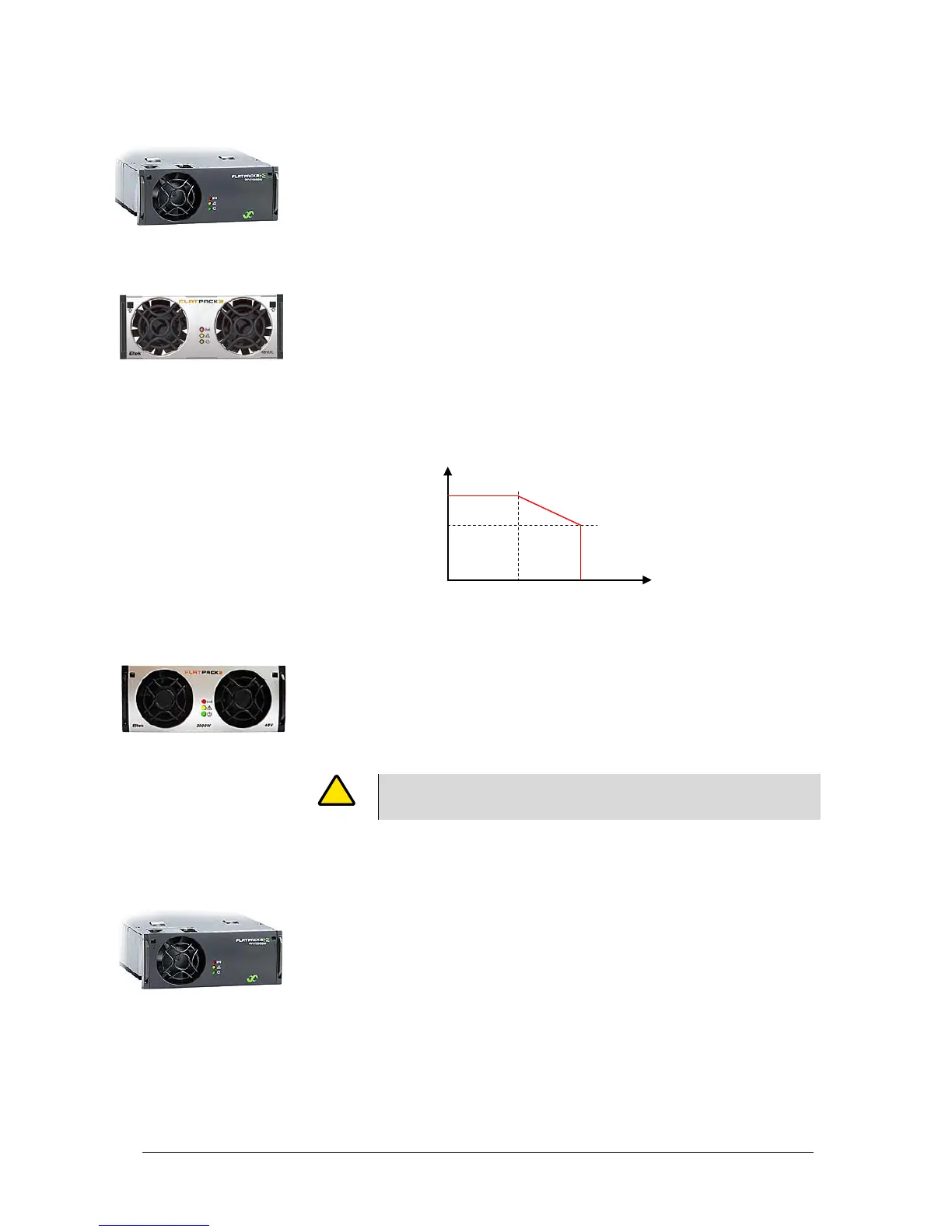

2 Flatpack2 Rectifier
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 9
Flatpack2 Rectifier 24V, 1800W HE
Part number 241115.205. For a description, refer to chapter
Flatpack2 Rectifier 48V, 2000W HE”, page 9. For technical
data, read chapter “Specifications Flatpack2 Rectifier 24V,
1800W HE”, page 18.
Flatpack2 Rectifier 48V, 1800W
Part number 241115.001. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 1800W” on page 19
Flatpack2 Rectifier 48V, 2000W
Part number 241115.100. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W” on page 20
Flatpack2 Rectifier 48V, 3000W
Part number 241119.100. Flatpack2 DC power systems using
these modules are implemented by mounting the rectifiers in
dedicated High Current racks (4AC-HC-3kW Power Shelves,
Part 222058).
Refer to chapter “Specifications Flatpack2 Rectifier 48V,
3000W” on page 21.
Flatpack2 Rectifier 48V, 2000W HE
Part number 241115.105. The combination of innovative
design, efficiency and reliability makes the Flatpack2 HE
rectifier stands out. With an efficiency of up to 96.5%, the
losses have been reduced by 50% compared to the current
industry standard.
Also, the Flatpack2 HE rectifier has an extremely high
efficiency at low load, which historically has been a drawback
with most modern soft switching technologies.
Refer to chapter “Specifications Flatpack2 Rectifier 48V,
2000W HE” on page 22.
P (W)
Temp (°C)
+45
Flatpack2 Rectifier 48V, 2000W
Operating Temperature
Output voltage vs. Temperature
+75
2000
1350
CAUTION: Do not install 3kW rectifiers in power systems implemented with 2kW
power racks (4AC Power Shelves or 2AC Power Shelves); otherwise the product
guaranty becomes invalidated.
Device
Hazard
!
