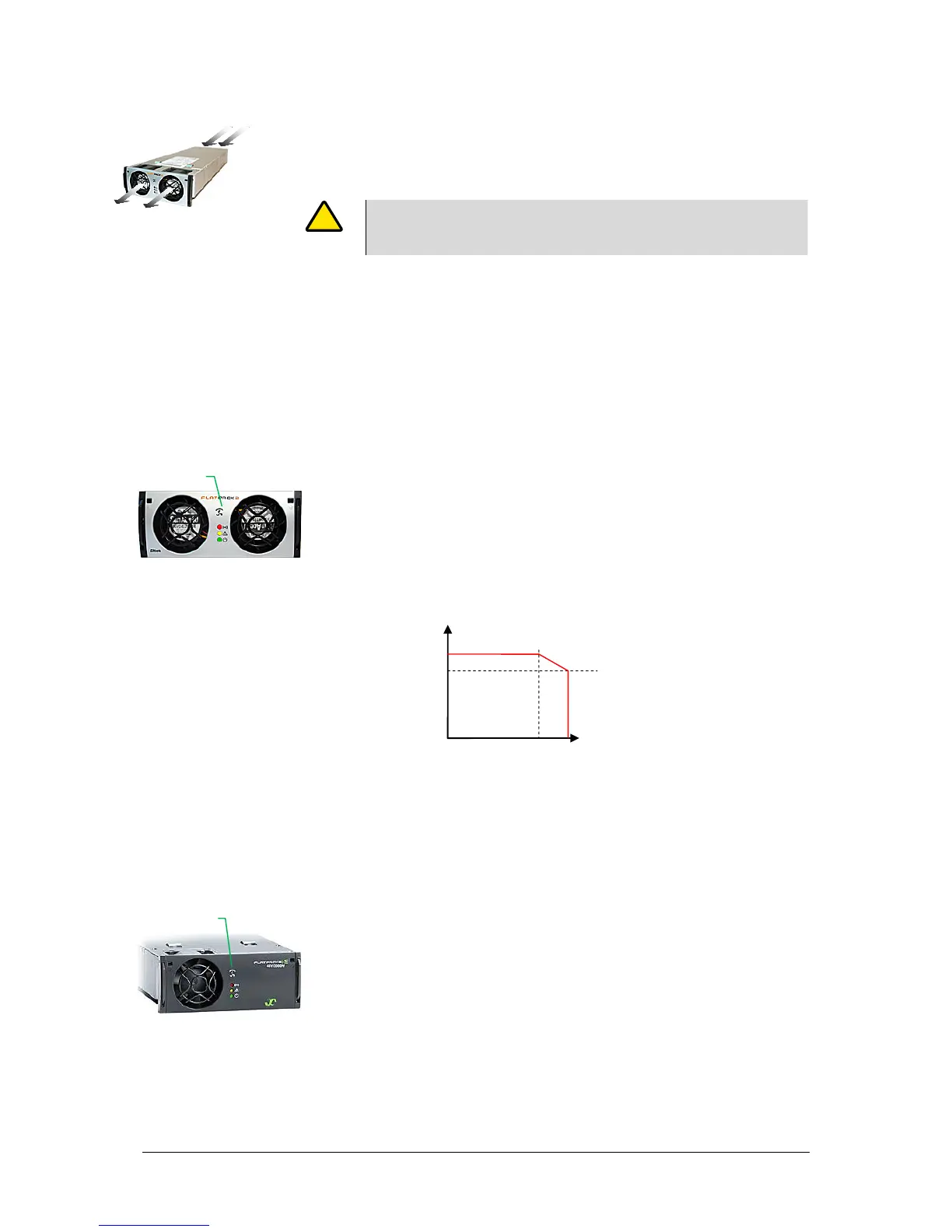

2 Flatpack2 Rectifier
12 User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09
Heat Management ~ Back-to-Front Air Flow
The following Flatpack2 rectifier options are always to be installed
in power systems designed for Back-to-Front Air Flow heat
management.
Flatpack2 Rectifier 48V, 2000W BF
Part number 241115.110
The technical specifications for “Flatpack2 Rectifier 48V,
2000W BF” are the same as for “Flatpack2 Rectifier 48V,
2000W”, except for their heat management and operating
temperatures, which are:
“Flatpack2 Rectifier 48V, 2000W”
Heat management: Front-to-Back Air Flow
Operating Temperature: (see page 20)
“Flatpack2 Rectifier 48V, 2000W BF”
Heat management: Back-to-Front Air Flow
Operating Temperature:
40 C to +65°C (40°F to +149°F)
For other specifications, refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W” on page 20
Flatpack2 Rectifier 48V, 2000W HE, BF
Part number 241115.115. Refer to chapter “Specifications
Flatpack2 Rectifier 48V, 2000W HE, BF” on page 28.
Air Flow
CAUTION:
Do not install rectifiers with Front-to-Back heat management in power systems
designed for Back-to-Front heat management; otherwise the product guaranty
becomes invalidated.
Device
Hazard
!
Flatpack2 Rectifier 48V, 2000W BF
Operating Temperature
Output voltage vs. Temperature
P (W)
Temp (°C)
+50
+65
2000
1500
Fan direction icon:
counterclockwise
Fan direction icon:
counterclockwise
