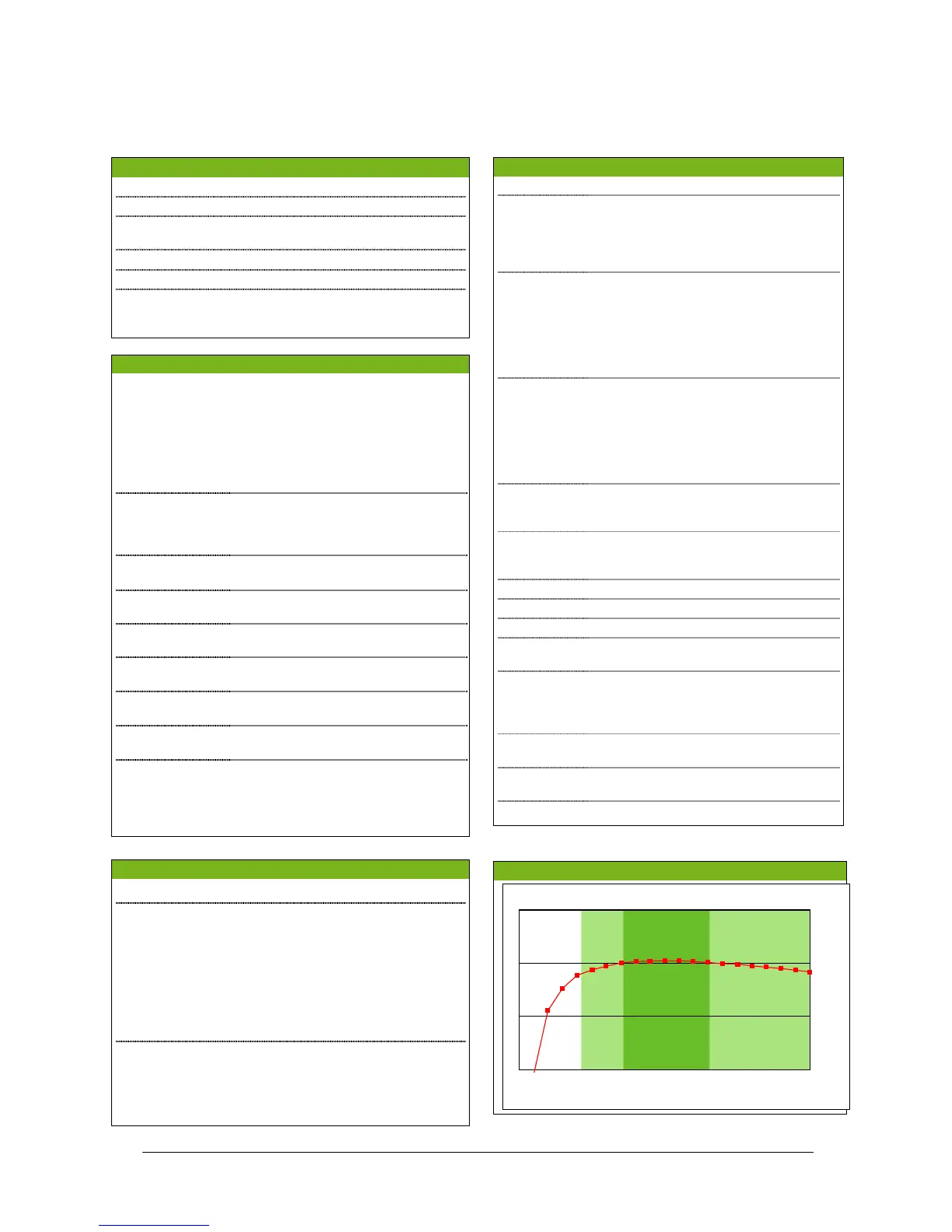

5 Technical Specifications
User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09 27
Applicable Standards
Electrical safety IEC 60950-1 /UL 60950-1 / CSA 22.2
EMC ETSI EN 300 386 V.1.4.1
EN 61000-6-1 (immunity, light
industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
EN 61000-6-5 (immunity, power
station and substation)
Mains Harmonics EN 61000-3-2
Environment ETSI EN 300 019-2-1 Class 1.2
ETSI EN 300 019-2-2 Class 2.3
ETSI EN 300 019-2-3 Class 3.2
ETSI EN 300 132-2
RoHS compliant
Efficiency
241115.815.DS3 – v2
Specifications are subject to change without notice
Efficiency at 230Vac, 245V output
85 %
90 %
95 %
100 %
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Output Load (W)
95%
94%
Specifications Flatpack2 Rectifier 220VDC, 2000W HE
WOR - (Industrial)
AC Input
Voltage
85-300 VAC (Nominal 185 275 VAC)
Frequency 45 to 66Hz
Maximum
Current
11.9 A
rms
maximum at nominal input and full
load
Power Factor > 0.99 at 50% load or more
THD
< 5 % at nominal input and full load
Input
Protection
o Varistors for transient protection
o Mains fuse in both lines
o
Disconnect above 300 VAC
DC Output (floating)
Voltage
Adjustable
NiCd batteries
Default: 245.3 VDC (without controller)
Range: 178.5-297 VDC
Float charge: 1,40 1.45 VDC/cell
Boost charge: 1.45 1.70 VDC/cell
Standby/Test: 1.05 1.2 VDC/cell
No of cells configurable in controller
Min: 170 / Max: 180
Output Power 2000 W at nominal input, derating linear
below 185VAC to 850W at 85VAC
Constant Power > 220V > Constant
Current
Maximum Current 9.16 Amps at 220 VDC and nominal
input
Current Sharing ±5% of maximum current from 10 to
100% load
Static voltage
regulation
±0.5% from 10% to 100% load
Dynamic voltage
regulation
±5.0% for 10-80% or 80-10% load
variation, regulation time < 50ms
Hold up time > 20ms; output voltage > 178 VDC at
1500W load
Ripple and Noise < 1000 mV peak to peak, 30 MHz
bandwidth
Output
Protection
o Overvoltage shutdown
o Hot plug-in
o OR-ing diode
o Short circuit proof
o
High temperature protection
Other Specifications
Efficiency
>95% at 35-65% load
Isolation 3.0 KVAC input to output
1.5 KVAC – input to earth
1.5 KVDC – output to earth
3.0 KVAC CAN to primary
3.0 KVAC CAN to secondary
Alarms: o Low mains shutdown
o High temperature shutdown
o Rectifier Failure
o Overvoltage shutdown on output
o Fan failure
o Low voltage alarm
o
CAN bus failure
Warnings:
o Low temperature shutdown
o Rectifier in power derate mode
o Remote battery current limit activated
o Input voltage out of range, flashing at
overvoltage
o Loss of CAN communication with
control unit, stand alone mode
Visual
indications
o
Green LED: ON, no faults
o Red LED: rectifier failure
o
Yellow LED : rectifier warning
Operating
temp
-40 to +75°C (-40 to +167°F), derating
above +55°C (+131°F) to 1350W at
+75°C (+167°F)
Storage temp -40 to +85°C (-40 to +185°F)
Cooling
Fan (front to back airflow)
Fan Speed Temperature and load regulated
MTBF > 459, 000 hours Telcordia SR-332 Issue I,
method III (a) (T
ambient
: 25°C)
Acoustic
Noise
< 40dBA at nominal input and full load
(T
ambient
<= 25°C)
< 58dBA at nominal input and full load
(T
ambient
> 40°C)
Humidity Operating: 5% to 95% RH non-condensing
Storage: 0% to 99% RH non-condensing
Dimensions 109 x 41.5 x 327mm (wxhxd)
(4.25 x 1.69 x 13”)
Weight 1.950 kg (4.3lbs)
