EM Test esd NX30
Instruction Manual V 1.00.7 20 / 33

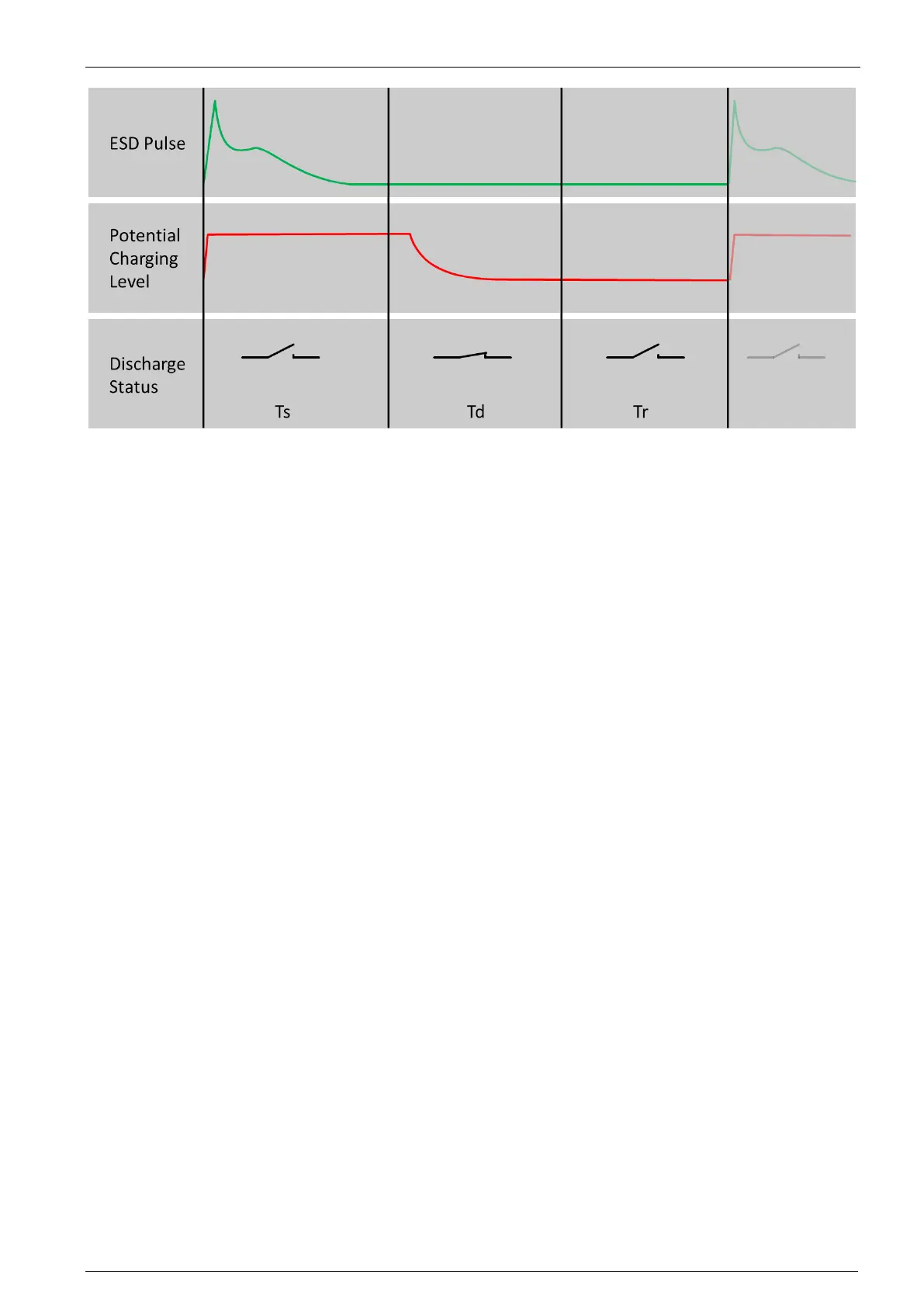

EUT discharge on esd NX30/NX30.1: To remove the charged energy of a EUT, the simulator has an switch. With the time
of the charge removing procedure can be programmed. All timing parameters can be set from 0.1 up to 99 s in 0.1 s steps.
The DUT will be discharged during T2.
External EUT discharge on esd NX30: To remove the charged energy of a EUT, an external charge removing box can be
connected to the base station.
