8 TYPICAL PULSE DATA

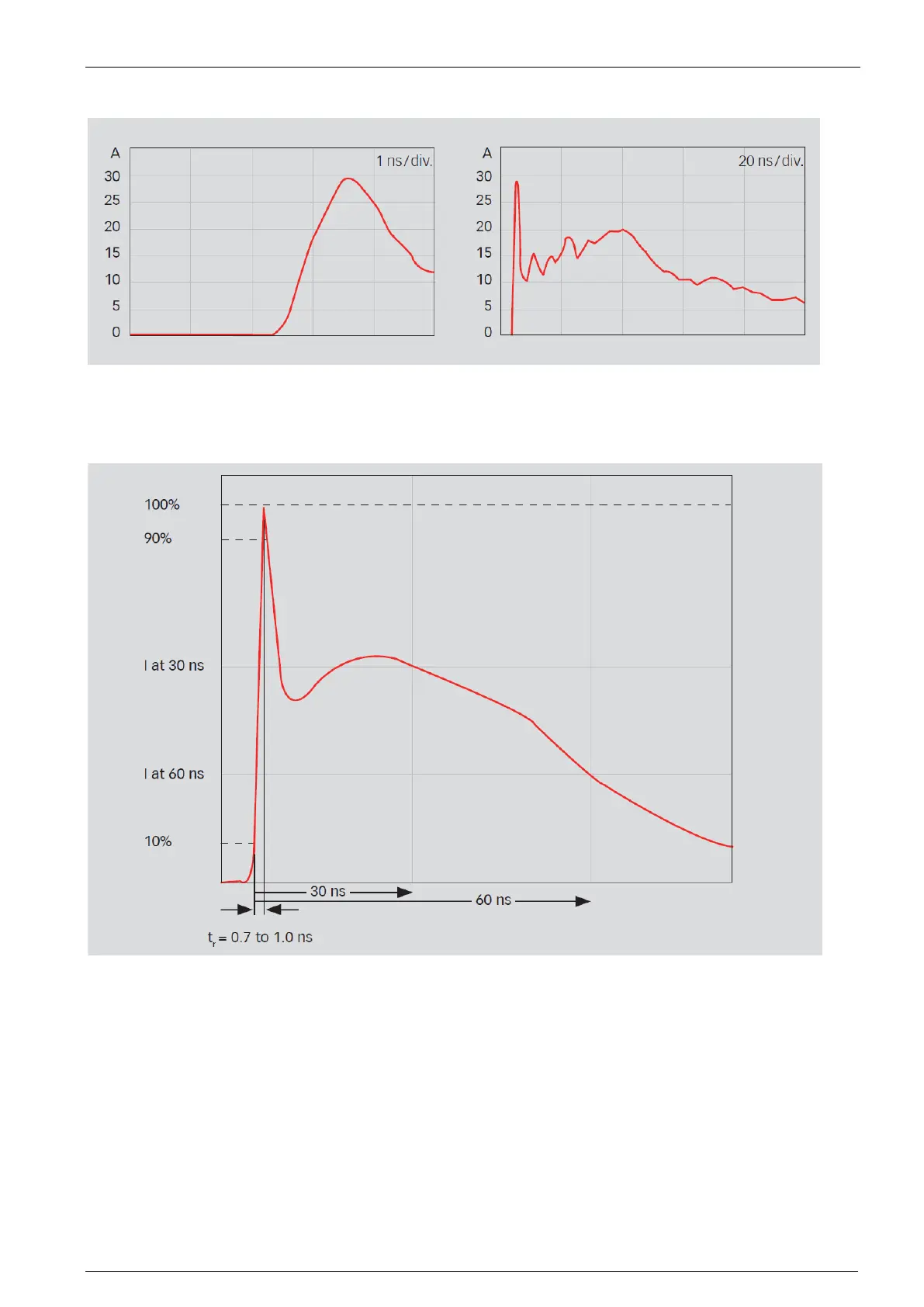

Contact-discharge 8 kV Contact-discharge 8 kV
pulse rising edge (tr ca. 0.8 ns) current at 30 ns und 60 ns
Reference figure quoted in IEC / EN 61000-4-2
