EM Test esd NX30
Instruction Manual V 1.00.7 27 / 33

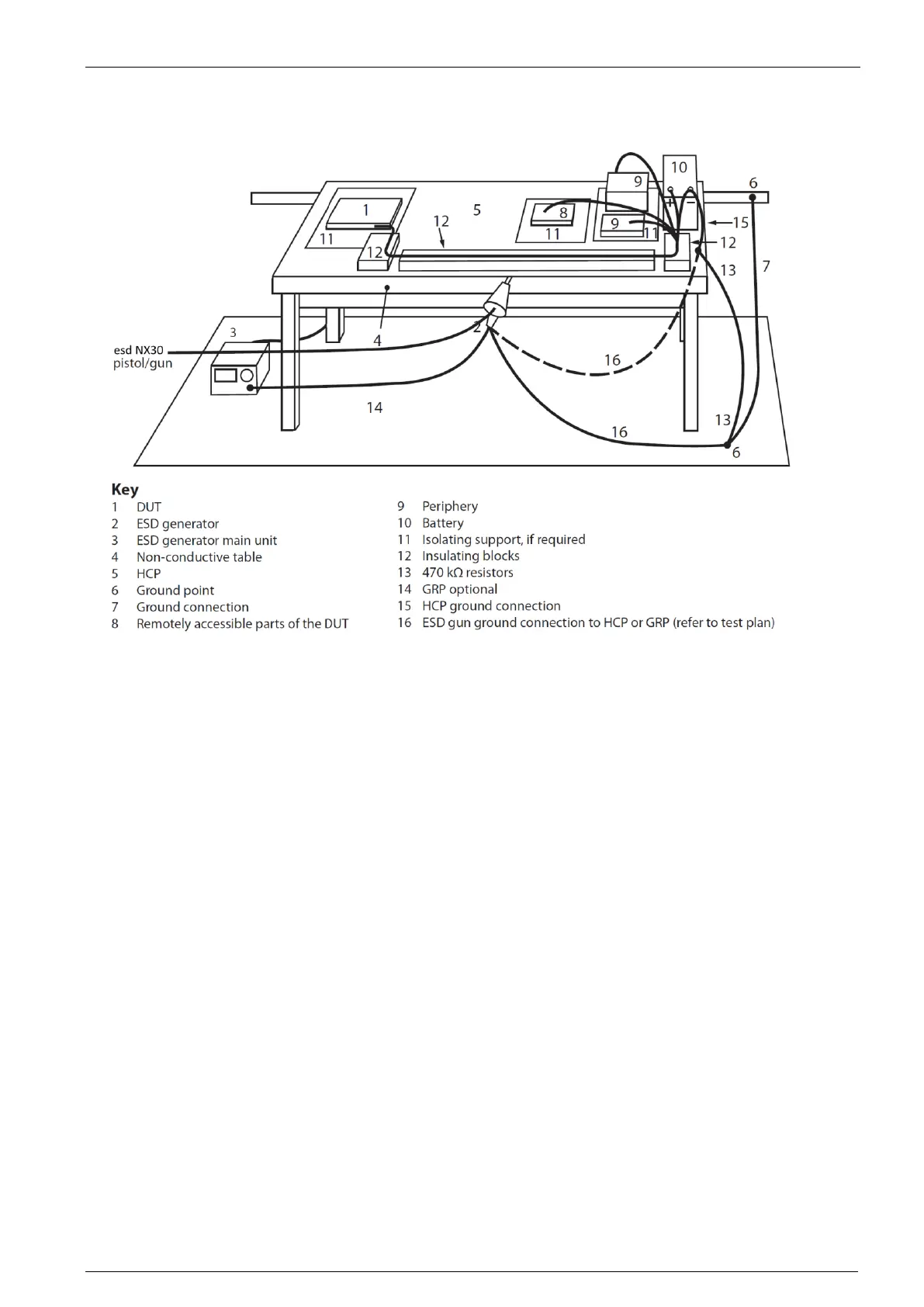

Example of test set-up for automotive EUTs including harness and auxiliary equipment.
Note that in case cable (16) gets connected to HCP (5), the bleed off resistors 13 have no more effect for the ESD phenom-
enon. They can be kept away or replaced by a direct (0 Ohm) connection to ground, an alternative is to connect grounding
wire 6 directly to the HCP.
