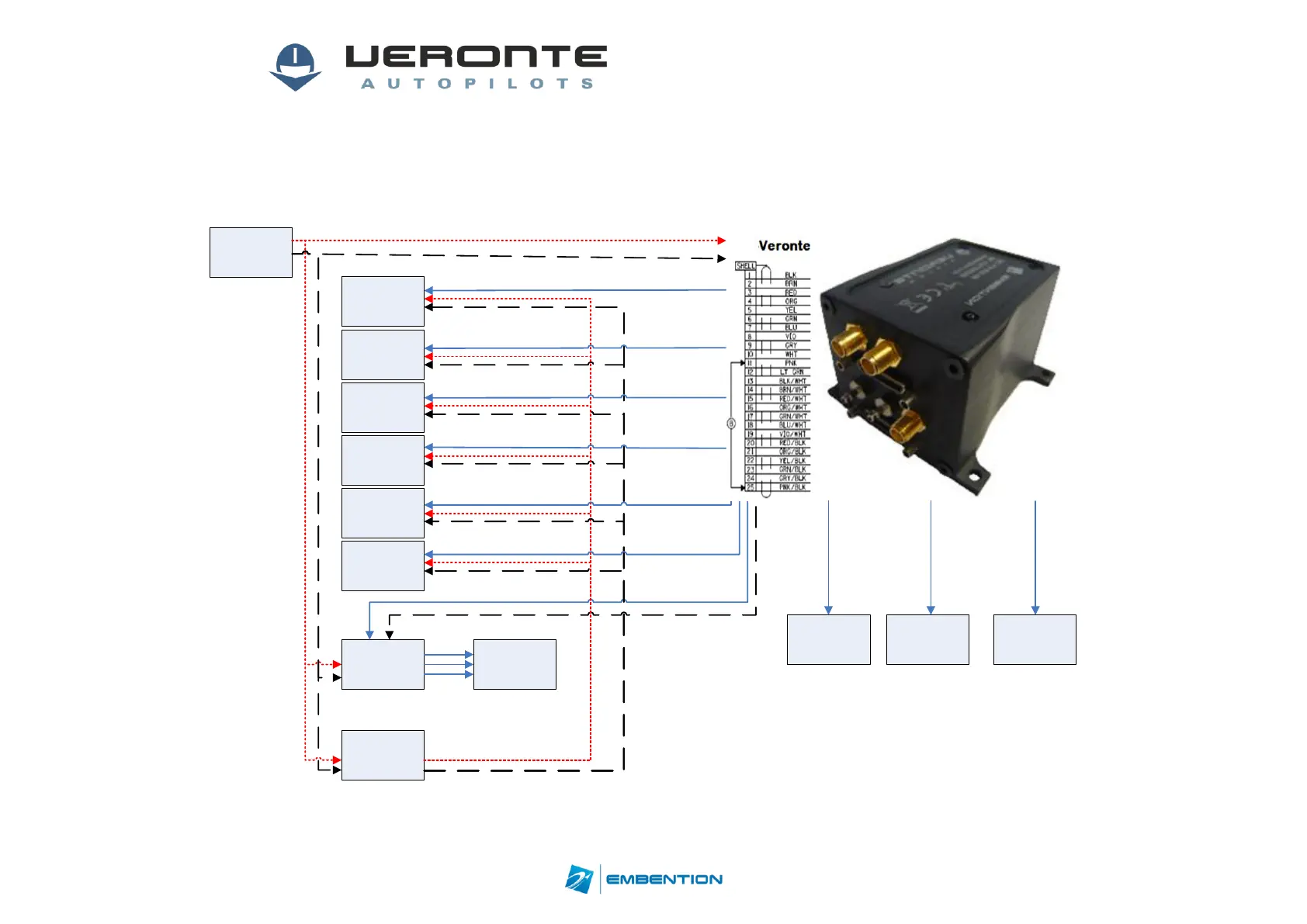

8. Annex 3: Connexion example – Fixed wing
Battery
Aileron left
ESC Motor
DC/DC
Pin 14 – V+
Pin 3 – CH3
Pin 5 – CH5
Pin1 – CH1
Pin 15 – V-
Aileron right
Pin 13 – GND
Elevator
Rudder
Pin 2 – CH2
Pin 4 – CH4
Gimbal Pan
Gimbal Tilt
Pin 6 – CH6
Pin 7 – CH7
GPS antenna RF antennaStatic pressure
