2. Aircraft Mounting
2.1.1. Enclosure
Veronte is provided using an anodized-
aluminium enclosure with enhanced EMI
shielding and IP protection. The total
weight including a 900 MHz / 2.4GHz radio
module is 190g.

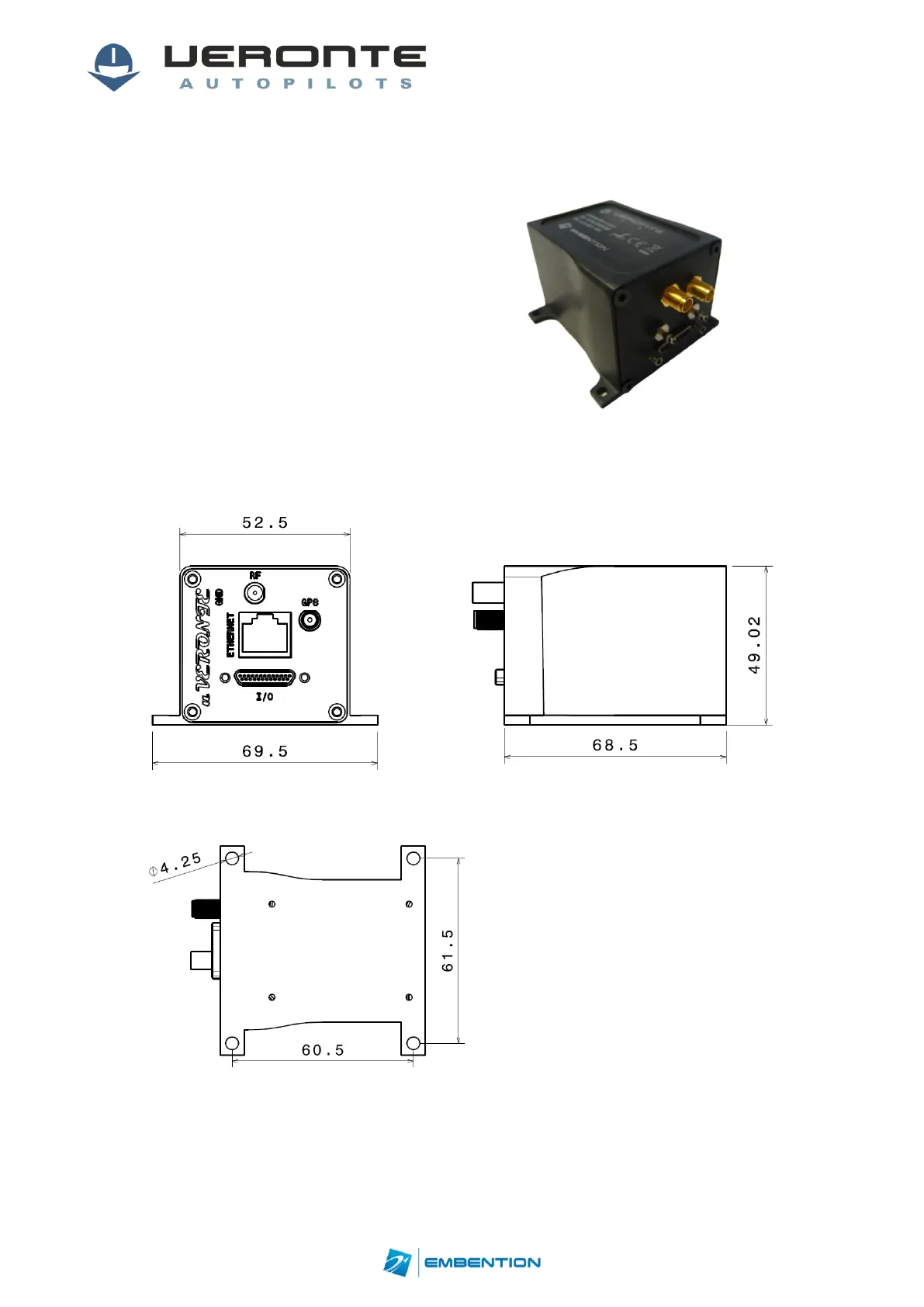

Figure 2: Veronte Air
All Veronte versionsshare thesame enclosure.Theonly differenceisthe distributionof the
connectors onthepanel.
Figure 3: Veronte dimensions (mm)
2.1.2. Mechanical Mounting
Figure 4: Veronte mounting dimensions (mm)
M4 screws are recommended for
mounting.
