Install Disk Array Enclosures (DAEs)
11
6. Tighten the rail screws at both the front and back of the cabinet.
Install the disk array enclosures
1. Slide the DAE into the 2U DAE rails in the cabinet.
2. Insert the four screws through the DAE front bracket screw holes and into the cabinet. It may
be easier to install the screws working in a diagonal pattern, such as bottom left and top right,
bottom right and top left.
3. When the DAE is in place, tighten all of the screws.

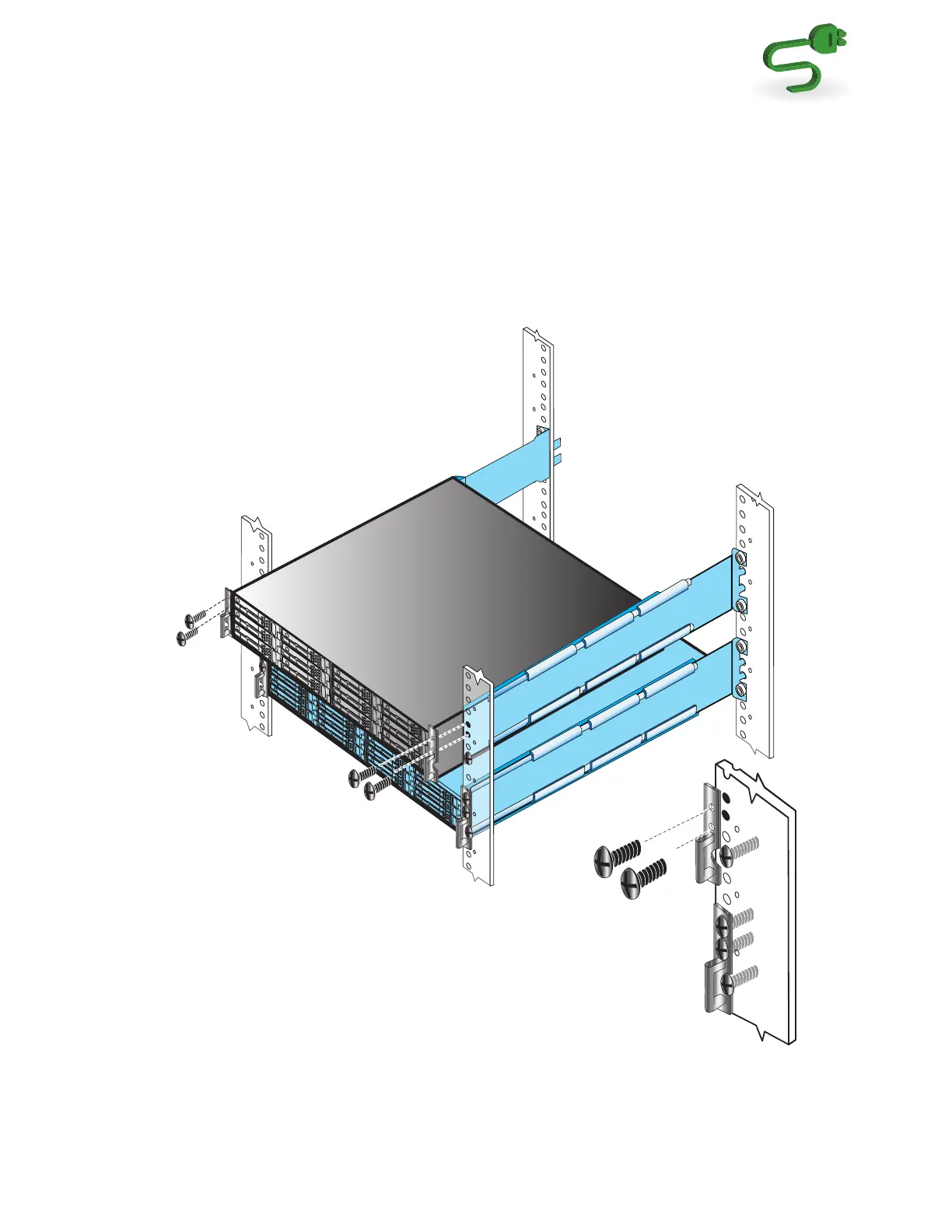

Figure 6 Installing a DAE
Front
4 screws hold the
component in the cabinet
(2 screws each side)
Front detail
Brackets are attached
to the components
