VNXe3100 Installation Guide
Attach storage processors to the network
1. Locate four CAT5e or better Ethernet cables.
2. Connect two Ethernet cables from the RJ45 ports labeled management to the LAN from
which you will configure the VNXe3100 system.
3. Connect two Ethernet cables from Ethernet port 2 to the LAN from which you will access your
data on the VNXe system.
Note: The SP A and SP B network data ports must be connected to the same subnet. In general, both SPs
should have mirrored configurations in order to provide Failover.

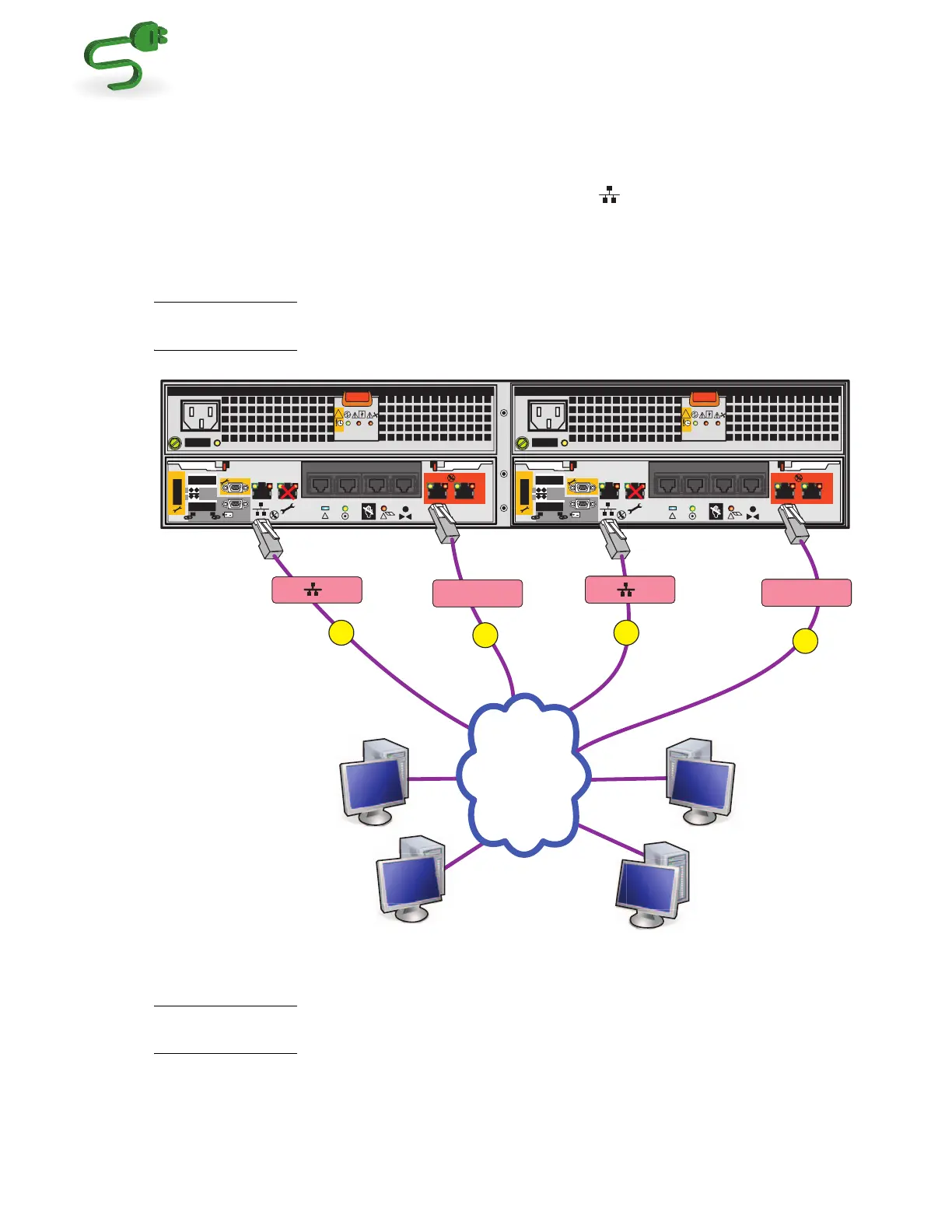

Figure 9 Cabling the storage processors to the network
Note: Additional information about the ports and cabling is available in the
VNXe3100 Hardware
Information Guide
.
2U Disk-processor enclosure rear
1
1
G
b
E
01
X4
6Gb SAS
6Gb SAS
23
1
1
G
b
E
01
X4
6Gb SAS
6Gb SAS
23
A
B
1
0
1
0
SP A MGMT
SP B MGMT
SP B DATA
D
SP ASP B
VNX-000784
LAN
SP A DATA
C
