EMC2 VNX Series Hardware Information Guide

VNX5400 product description
EMC VNX5400 Hardware Information Guide 7
For additional details on the locations of orderable parts, and their part number labels,
refer to the
VNX5400 Parts Location Guide .
Front view
Figure 1 shows an example of the front view of a File/Unified VNX5400 platform having a
3U, 25 (2.5-inch) disk drive DPE, two 2U Data Mover enclosures with four Data Movers,
and two 1U Control Stations (one optional).
Note: The example shown in Figure 1 does not show any DAEs.

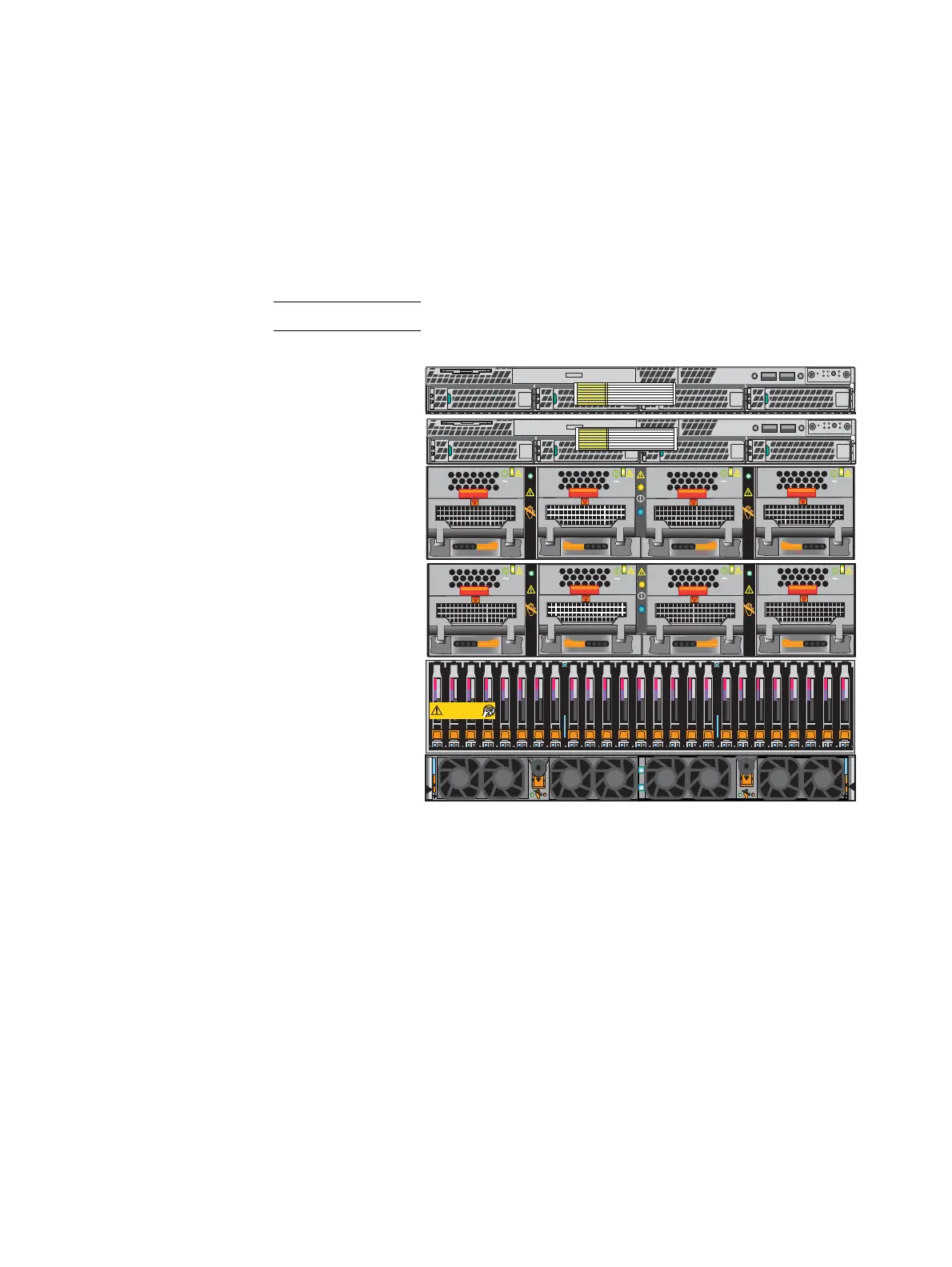

Figure 1 Example of a File/Unified VNX5400 platform (front view)
1
G
b
E
01
X4
6Gb SAS
6Gb SAS
23
1
0
1
G
b
E
01
X4
6Gb SAS
6Gb SAS
23
1
0
0
Will Make the Array Unusable
Caution: Array Software on drives 0-3. Removing or relocating them
A
B
SP
SP
AC
AC
AC
AC
3U, 25 (2.5-inch)
disk processor
enclosure
Data Mover
enclosure 0
Control Station 0
Control Station 1
(optional)
AC
AC
AC
AC
Data Mover
enclosure 1
VNX-000940
