44 EMC VNX5400 Hardware Information Guide
I/O modules

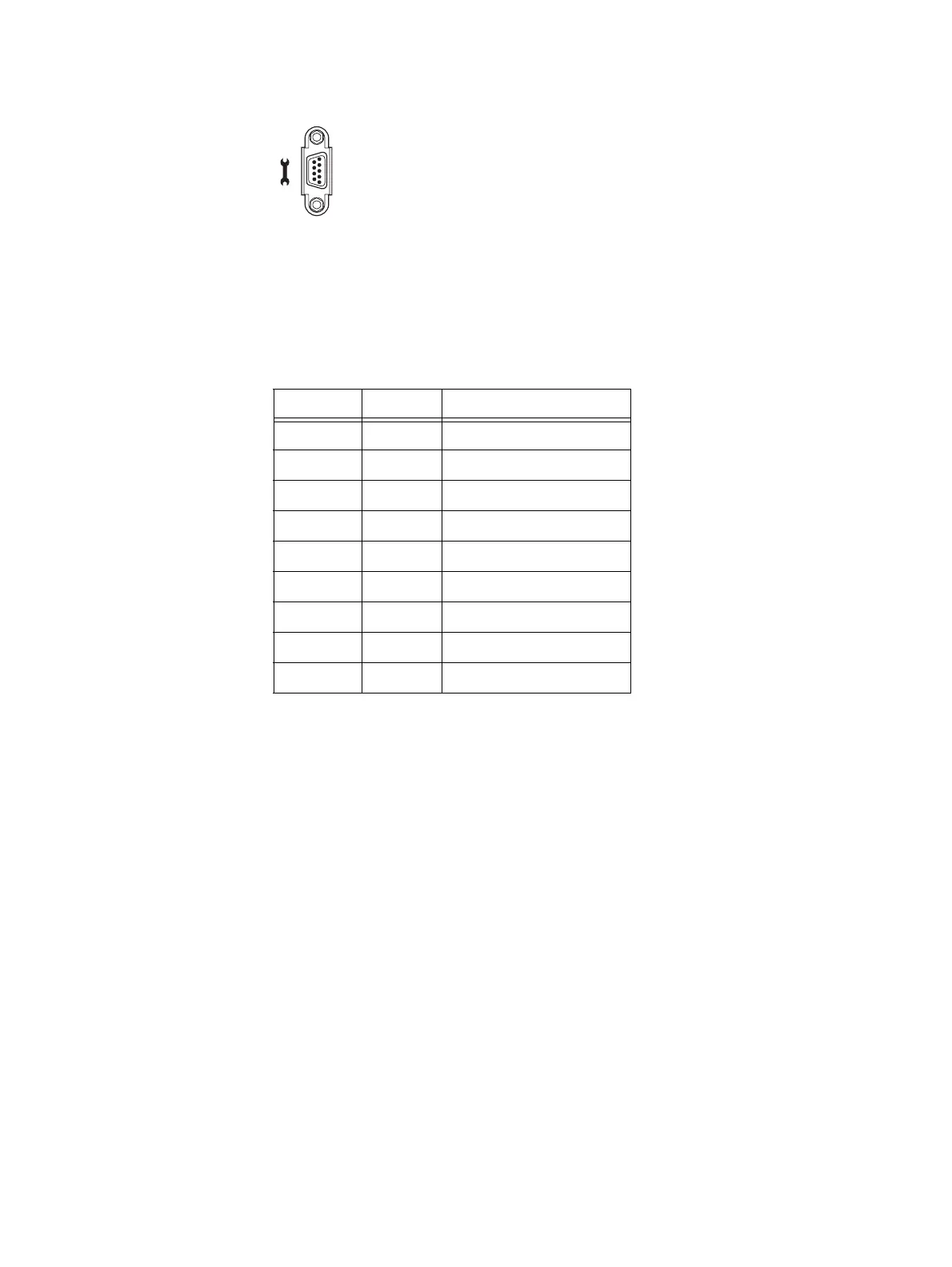

Figure 29 Data Mover management module serial console (DB-9) socket connector
Table 21 lists the Data Mover management module Ethernet (DB-9) pin signals used on
the connector.
I/O modules
Several types of I/O modules are supported in the Block, File, and Unified VNX5400. The
SP supports five types of I/O modules (see “Storage processor I/O module types” on
page 46) and the Data Mover supports four types (see “Data Mover I/O module types” on
page 60). In this section, each I/O module description includes the type of port (copper or
optical) as well as a description of the LEDs.
Fibre Channel ports
The Block and File/Unified VNX5400 platform SP does not come with built-in optical Fibre
Channel (FC) ports on the rear of each SP (A and B). As a result, the 8-Gb/s Fibre Channel
(FC) I/O module or the 16-Gb/s Fibre Channel (FC) I/O module is used to provide these FC
ports (see “Four-port 8-Gb/s FC I/O module” on page 47 and “Four-port 16-Gb/s FC I/O
module” on page 50, respectively). These ports provide an optical interface for
connecting to the front end.
Pin 1
5
9
6
Table 21 Data Mover management module (DB-9) socket connector pinout
DB-9 Pin Signal Description
1 CD Carrier detect
2 TXD Transmitted data
3 RXD Received data
4 DTR Data terminal ready
5GNDGround
6DSRData set ready
7 RTS Request to send
8 CTS Clear to send
9 RI Ring indicator (not used)
