Data Mover management module LEDs

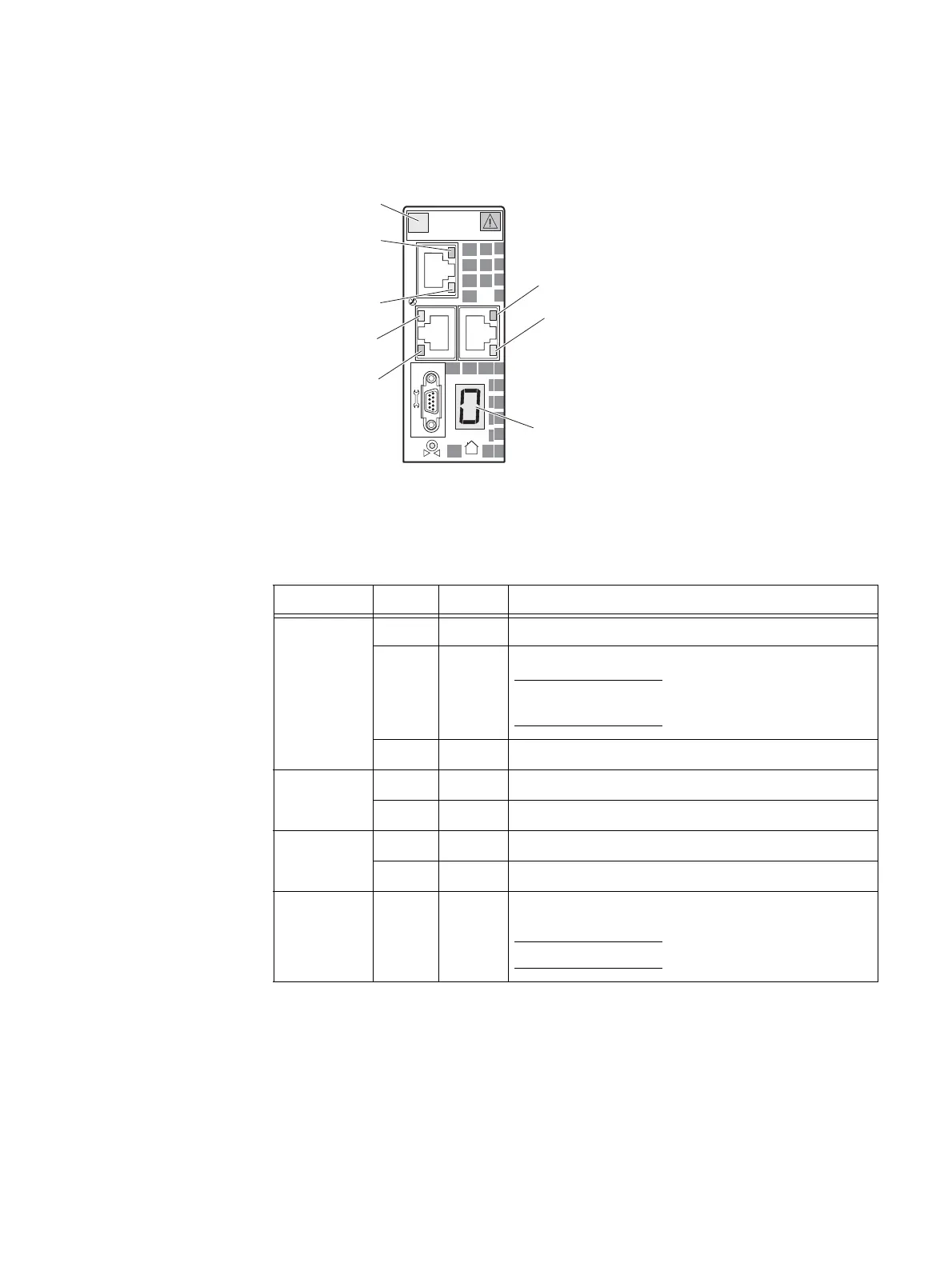

Figure 28 shows the LEDs and Table 20 describes them.
Figure 28 Data Mover management module LEDs
Data Mover management module serial console (DB-9) socket connector
The back of the File/Unified VNX5400 platform Data Mover management module includes
a standard serial console Electronics Industries Association (EIA) RS-232 interface (DB-9)
socket connector (labeled with a wrench tool icon on the left). Notice the orientation of
the pins (Figure 29 on page 44).
2
0
1
#
Port 2 (Link LED)
Port 0 (Link LED)
Numeric display
(Data Mover enclosure ID)
Port 1 (Activity LED)
Power/Fault LED
Port 0 (Activity LED)
Port 2 (Activity LED)
Port 1 (Link LED)
CNS-001671
Table 20 Data Mover management module LEDs
LED Color State Description
Power/Fault Green On Data Mover management module is powered up.
Amber On Data Mover management module has faulted.
Note: LED is always illuminated at powerup, until it is
initialized.
—OffData Mover management module is powered down.
Link (each
port has one)
Green On Network connection
— Off No network connection
Activity (each
port has one)
Amber Blinking Transmit/receive activity
— Off No network activity
Numeric
(7-segment)
display for
enclosure ID
— On Displays the enclosure ID assigned to the Data Mover
enclosure.
Note: Each enclosure is assigned a number at installation.
