7. Electrical Installation
Onceverifiedpreviousstepsproceedasfollows:
  -checkthat“BNC”oflevelprobehasbeenconnectedasdescribedin“Hydraulic
  Installation”chapter.
  -connect“BNC”andexternalsignaltopump’s“INPUT”connectors.
1
Level Probe Input available on: FTE, FPDR, FIC, FIS, FPV, FPVM, FCL
2
External Signal Input available on: FPDR (optional), FIC, FIS, FPV, FPVM, FTE
ExternalSignalInput
2
LevelProbeInput
1

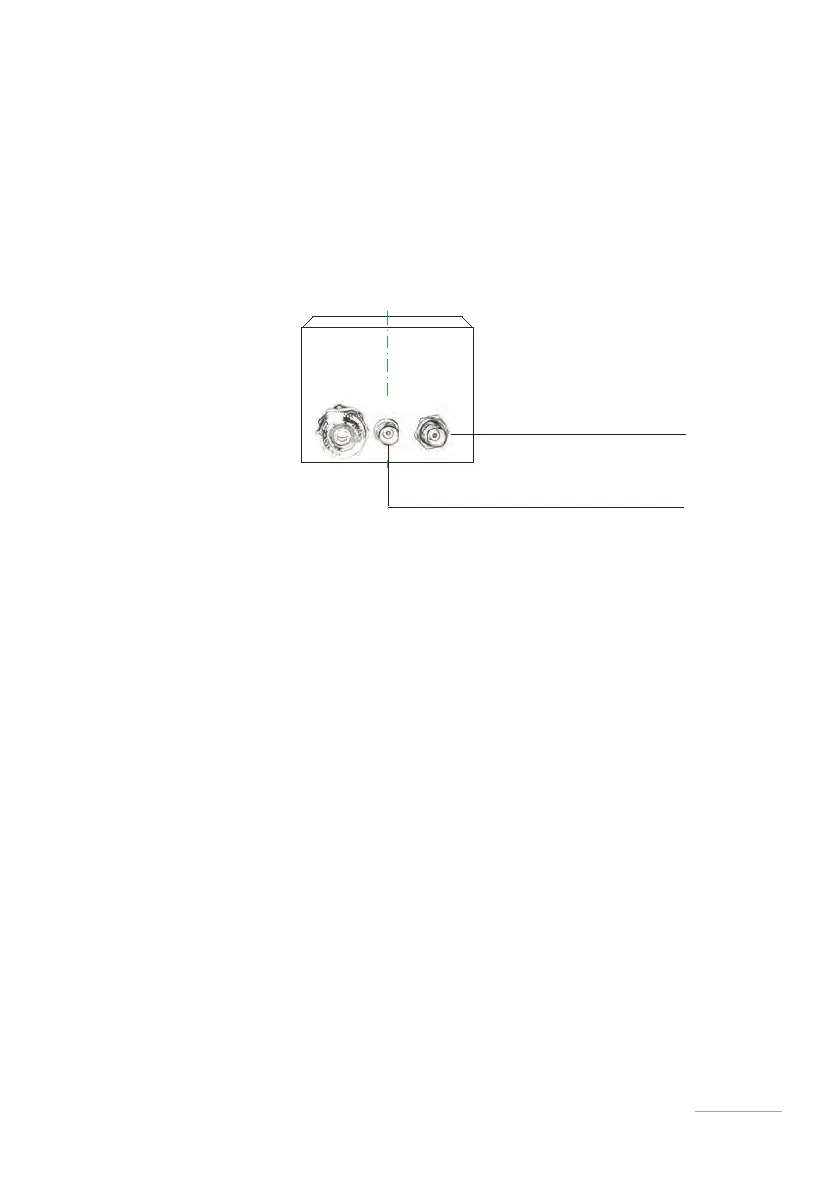

(bottom view)
