Emerson 375 - Bench Hook-Up

Fieldbus Functionality
4-7
Bench Hook-Up
Figure 4-3 illustrates one method of connecting the 375
Field Communicator on a bench.
For segments that are limited in size, the power
conditioner and terminators can be contained in a single
wiring block.

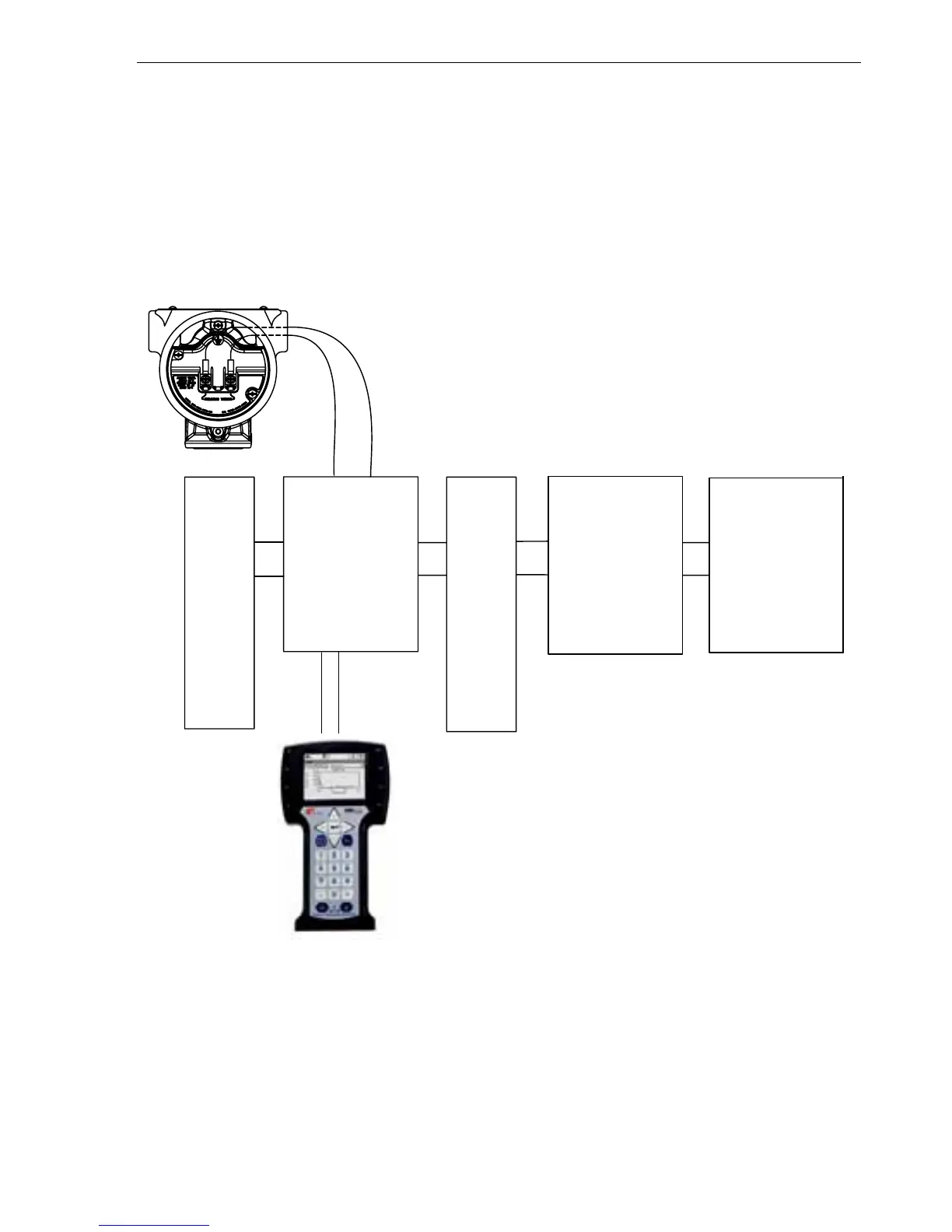

Figure 4-3. Bench wiring diagram example
T
e
r
m
i
n
a
t
o
r
T
e
r
m
i
n
a
t
o
r
Connection
Block
Fieldbus
Power
Conditioner
24 VDC
Power
Supply
+
+
+
+
+
-
-
-
-
-
