Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Installation 39

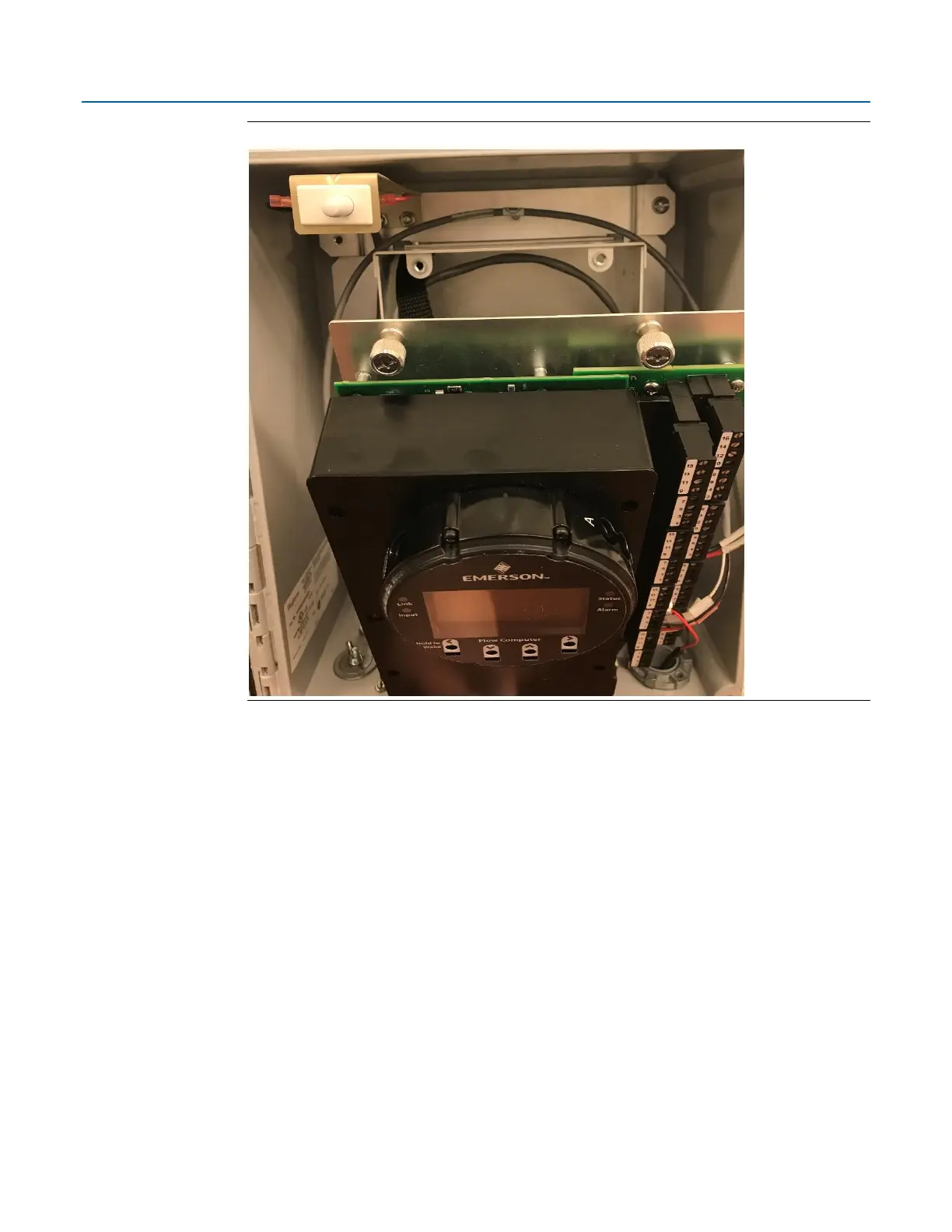

Figure 2-25. Rotate Assembly Forward
5.
The battery cable inside the battery compartment is divided into two branches, each with its
own pair of connectors. Take either pair of connectors and connect them to the battery; the
red (positive) wire connector attaches to the red connection point on the battery and the
black (negative) wire connector attaches to the black connection point on the battery.
