Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
60 Installation
Connecting to Ethernet
The Ethernet port is a standard 8-pin 10/100 Base T RJ-45 modular connector located on the
bottom right side of the CPU enclosure.

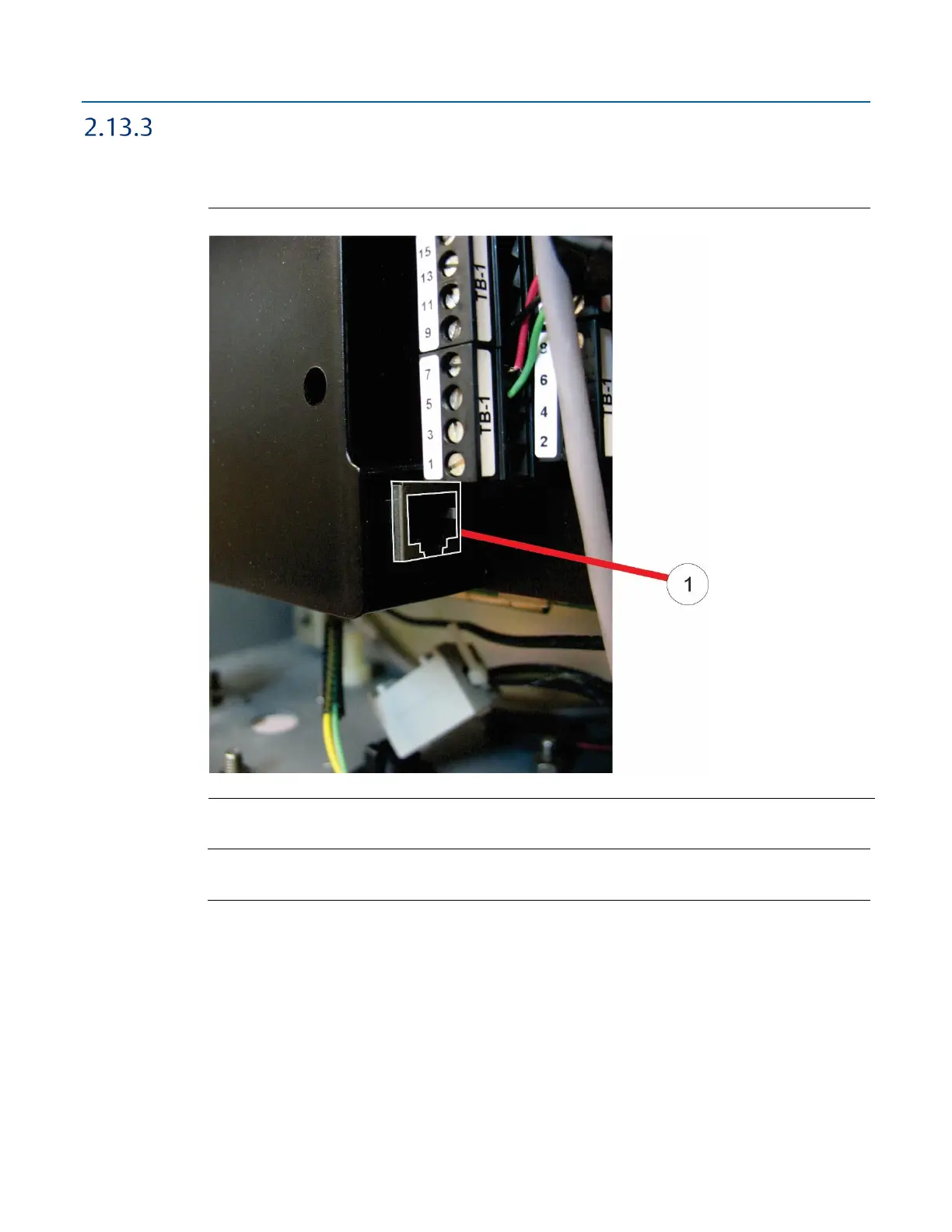

Figure 2-48. Connecting to Ethernet
Connect to an Ethernet switch using the appropriate Category 5 shielded patch cable.
Notes
The default Ethernet IP address is 192.168.1.10; the default port is 20000.
If you ordered Ethernet, the unit ships with Ethernet enabled. If you need to operate the device in
lower power mode, you must disable Ethernet. Jumper J10 on the CPU module (see Figure 2-49)
determines whether Ethernet is enabled or disabled. Refer to the CPU Enclosure and Electronics Field
Replacement Guide (D301803X012) for information on how to open the unit to gain access to the
CPU module.
