Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Installation 59

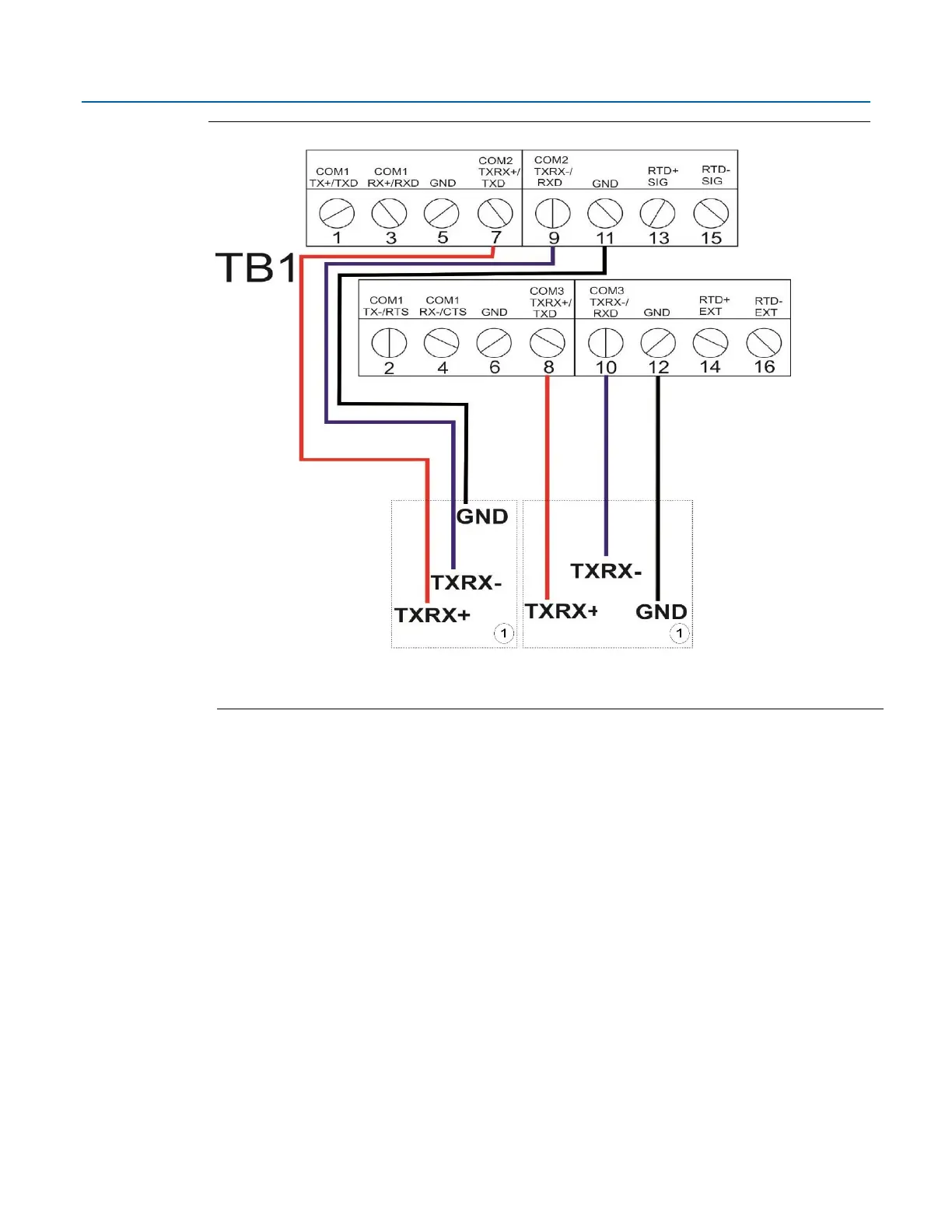

Figure 2-47. Connecting a Device to COM2 or COM3 Using RS-485
1
RS-485 Port on other device
Regardless of the interface standard (RS-232 or RS-485), you must use FBxConnect to configure the
port for proper usage.
