AI/AO6). If module is present you can
configure any (or none) of the four
channels as AOs.
▪
1 or 2 additional isolated channels on
optional 6-channel expansion I/O
module (ISO AI/AO7 and ISO AI/AO8).
If module is present you can configure
one, both, or neither as AOs. This
module is allowed only if 8-channel
expansion I/O module is also present.
▪
You can configure a fail state so that
on power up or if the CPU fails the
output drives to 0
A
▪
When you configure a channel as an AO
it cannot be used as an AI
3.2.1 AO Wiring
The following diagrams show how to wire the analog output.

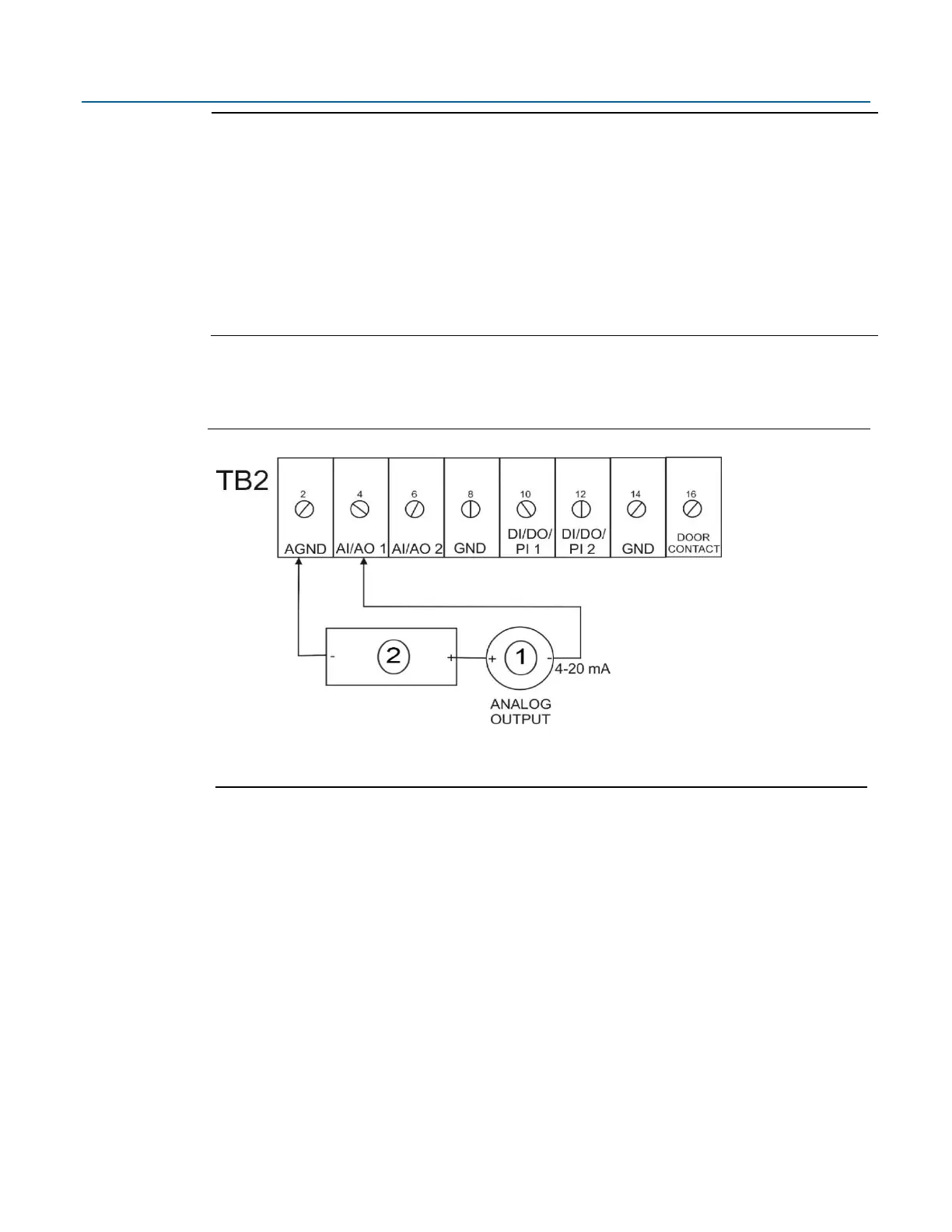

Figure 3-5. AO Wiring: Base I/O (AI/AO1 & AI/AO2)
