Emerson ControlWave Series User Manual

Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
I/O Configuration and Wiring 65

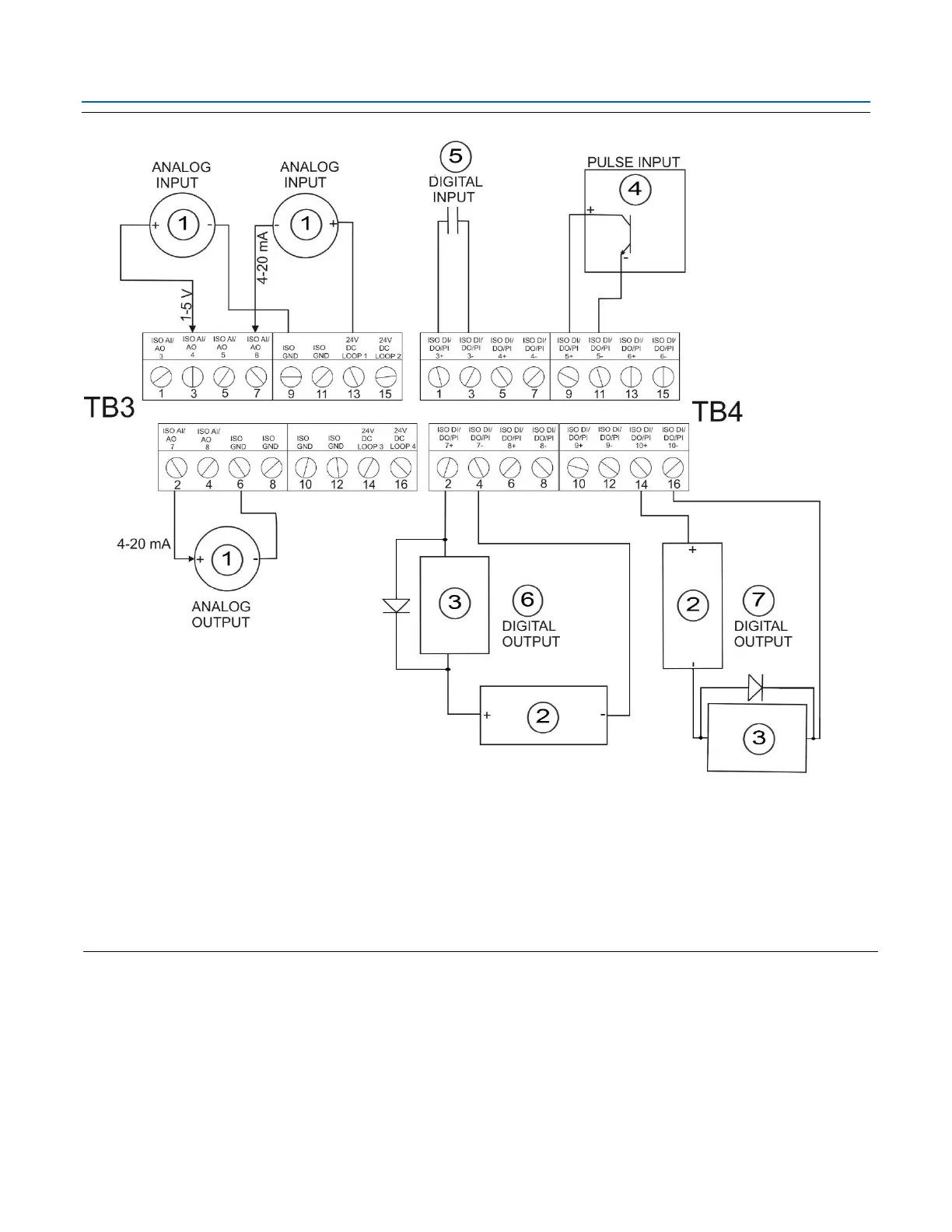

Figure 3-2. Wiring for 8-channel Expansion I/O Module and 6-channel Expansion I/O Module
1
Field Device
2
Power Supply 30Vdc Max
3
500 mA load max
4
Open Drain Type or Open Collector Device (Externally Powered)
5
Dry contact
6
Low Side Switch
7
High Side Switch
3.1 Analog Inputs
The FB2200 flow computer includes two on-board channels you can individually configure as either
analog inputs (AI) or analog outputs (AO). The optional 8-channel expansion I/O module includes 4
additional channels you can individually configure as AIs or AOs. In addition, if you purchased the
optional 6-channel expansion I/O module, there are two additional channels you can individually
configure as either AIs or AOs.
