52 Installation

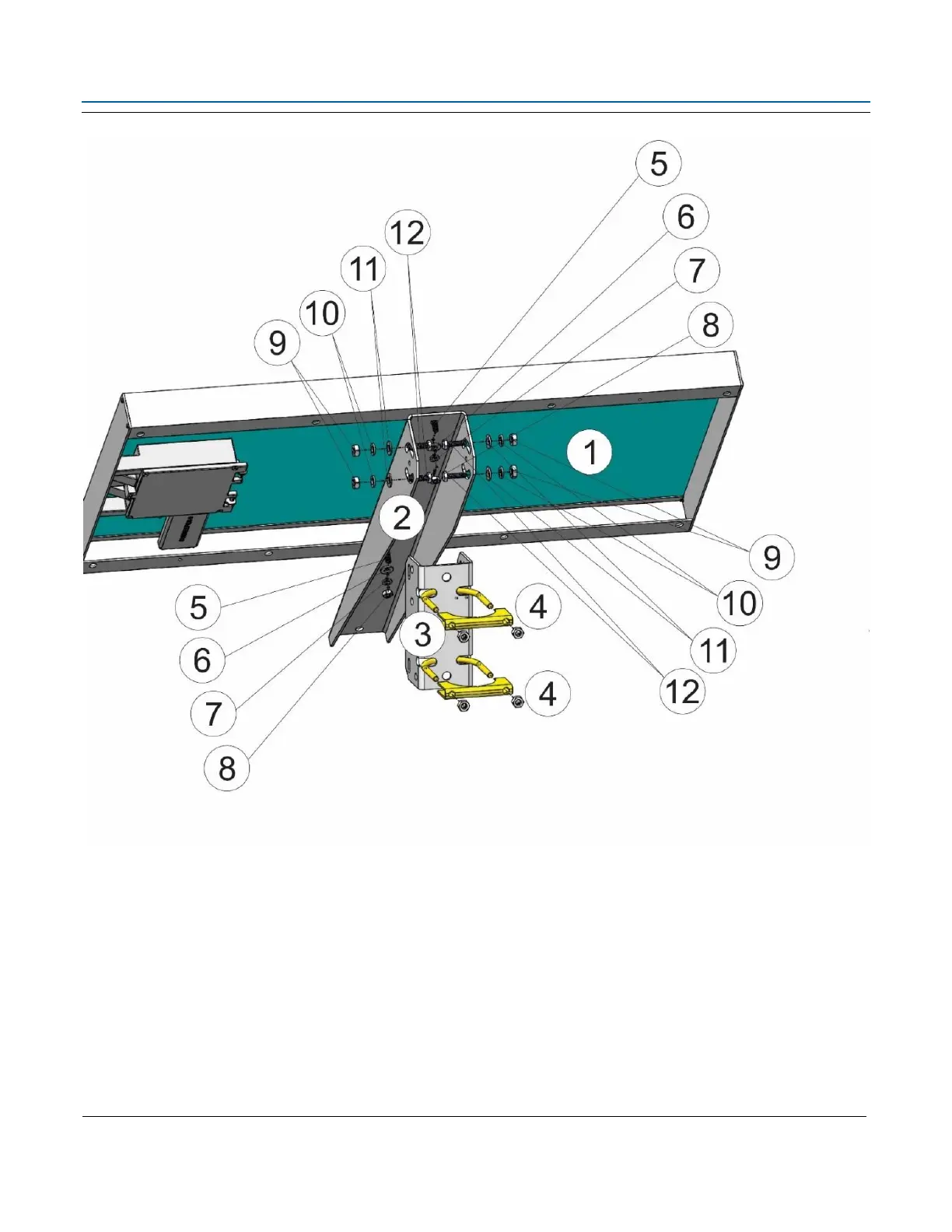

Figure 2-40. Installing 30W Solar Panel
1
30W solar panel
2
Adjustable angle bracket
3
Pole mounting bracket
4
U-bolt assembly (2)
5
¼ x 20 x .75LG Hex head cap screw (2)
6
¼ flat washer (2)
7
¼ lock washer (2)
8
¼-20 hex nut (2)
9
5/16-18 hex nut (4)
10
5/16 lock washer (4)
11
5/16 flat washer (4)
12
5/16-18 x 0.75 LG Hex head cap screw (4)
