• Calibration Polarity configuration parameter selections are:
- Digital Input 1 Calibrate Active High
- Digital Input 1 Calibrate Active Low
• Calibration Gating configuration parameter selections are:
- Edge gated, active high

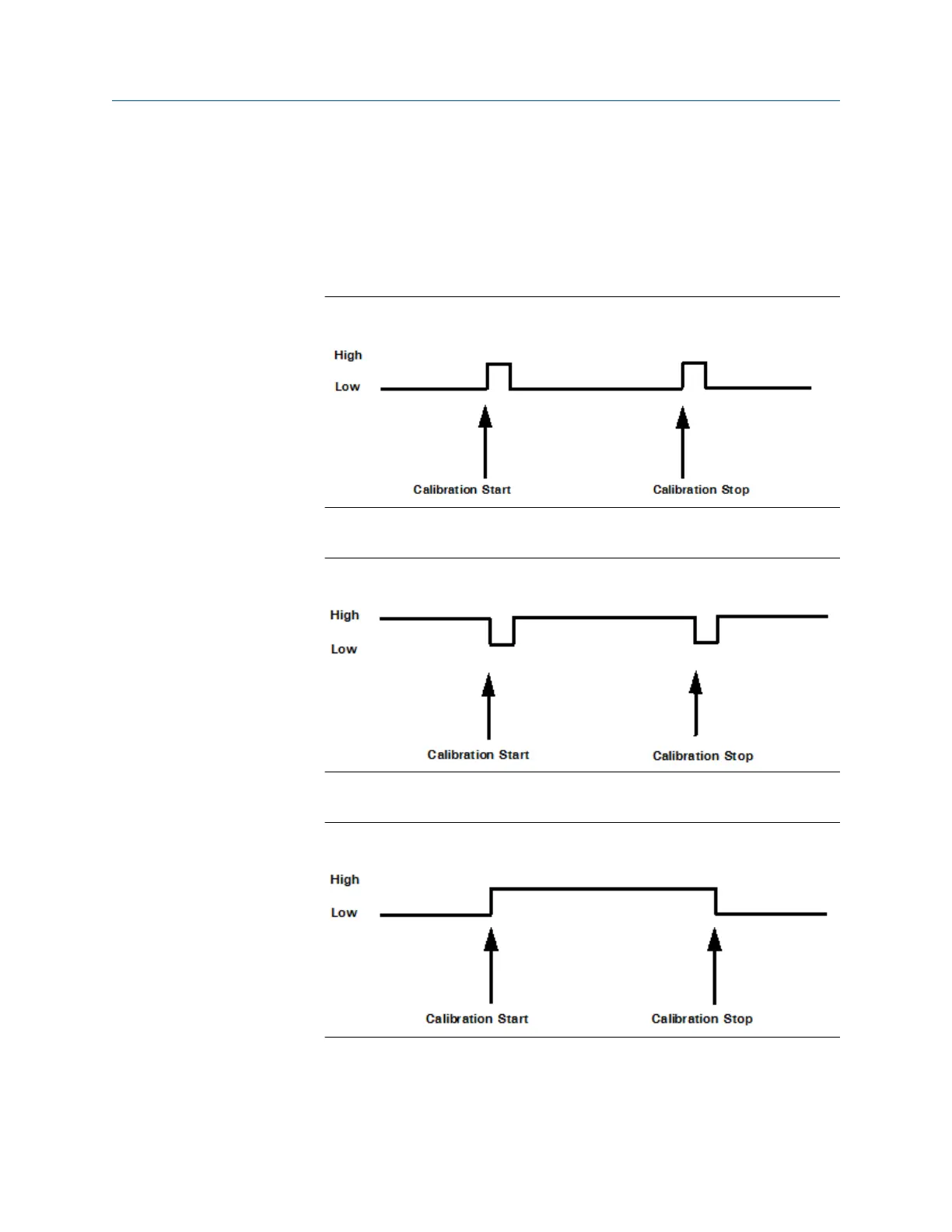

Gating configuration parameter Edge gated, active highFigure 4-12:
- Edge gated, active low
Gating configuration parameter Edge gated, active lowFigure 4-13:
-
State gated, active high
Gating configuration parameter State gated, active highFigure 4-14:
- State gated, active low
Configuration
