Serial Port A parameters (continued)Table 3-4:
Port/Communi-
cation Description Common features
Ethernet • Preferred port for diagnostic com-
munication via Daniel MeterLink
• 10 Mbps/100Mbps
• 10 Mbps/100Mbps
(1) RS-485 2-wire connections use TX+ and TX - on the CPU Module
(2) Denotes auto-detected protocols
NOTICE
If not using Ethernet, a full duplex serial connection is necessary for Daniel MeterLink to
communicate with a Daniel 3410 Series Gas Ultrasonic Meter.

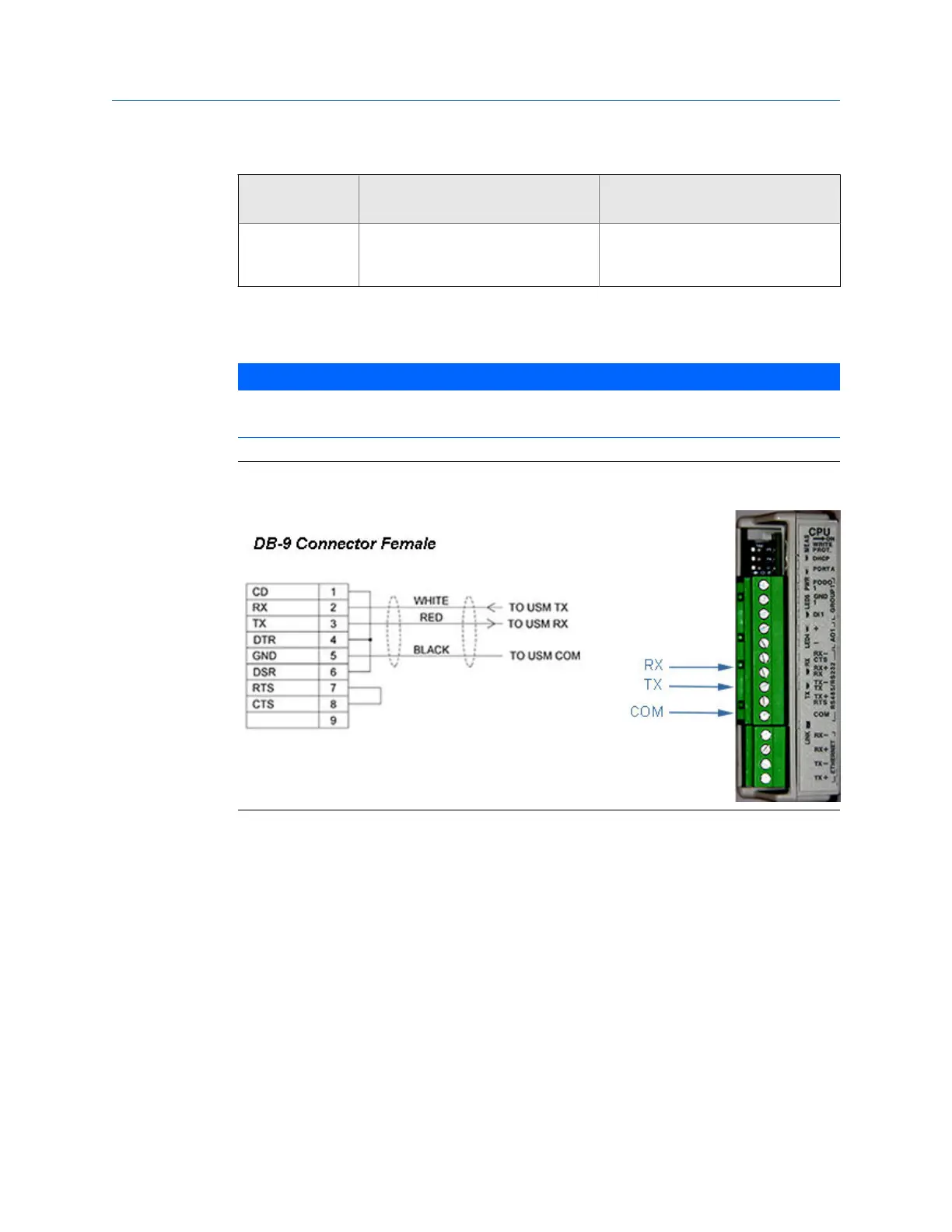

PC to meter serial connection wiringFigure 3-9:
3.5.2 I/O connections
The Daniel 3410 Series Gas Ultrasonic Flow Meter provides the I/O connections on the CPU
Module.
