Emerson Daniel 3415

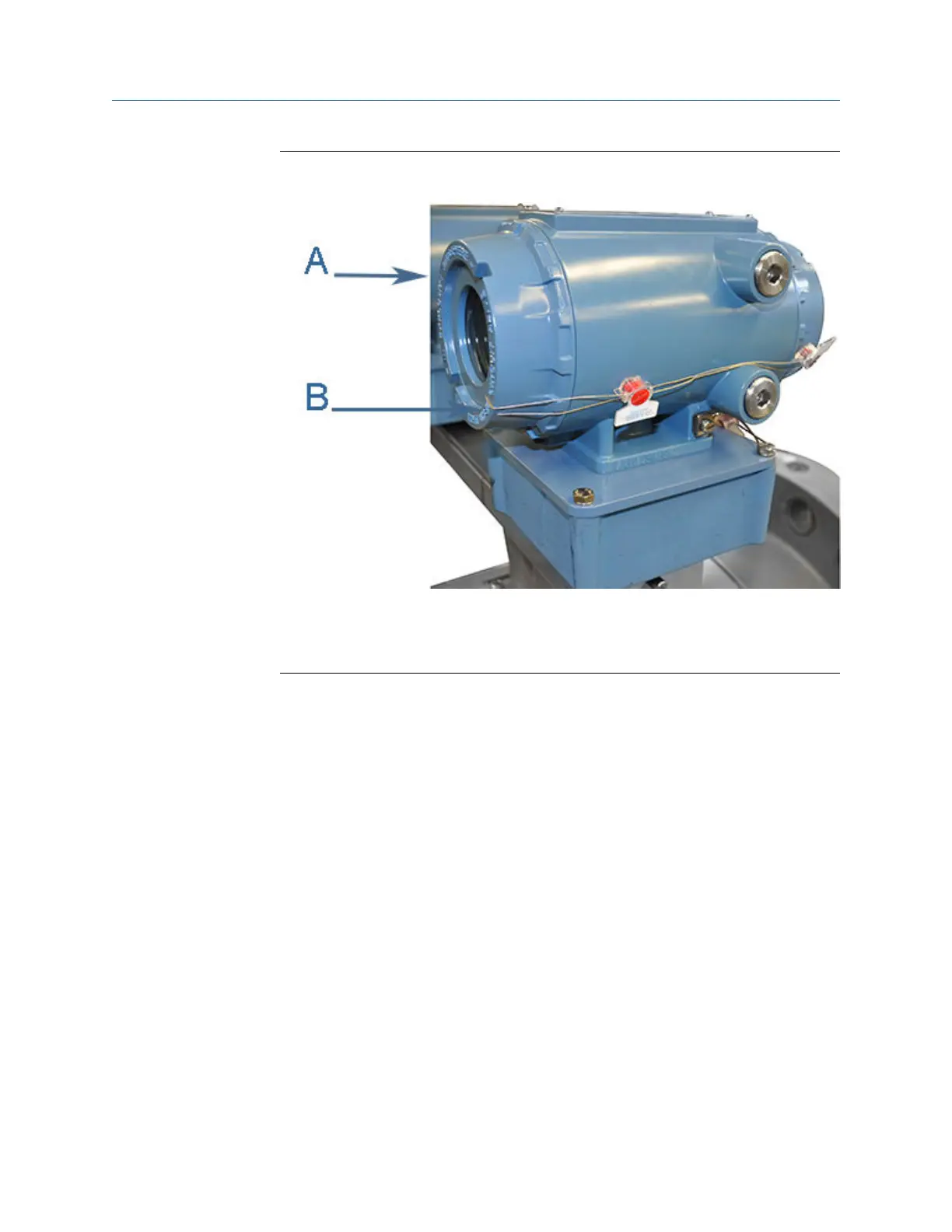

Transmitter electronics enclosure security sealsFigure 3-23:
A. Transmitter electronics enclosure endcap
B. Security wire seals
3. Adjust the security wire, removing all slack and thread into the lead seal.
4. Crimp lead seal and cut wire ends to remove excess wire.
3.6.2
Base Enclosure Security Seals
Use the following instructions to install the security seal wire on the Base Enclosure.
1. Install security wire seal into and through the hole in the socket head screw on the
Base Enclosure cover (maximum wire diameter .078 inch; 2.0mm).
Electrical installation
80 Gas Ultrasonic Flow Meter
