Emerson Daniel 3415

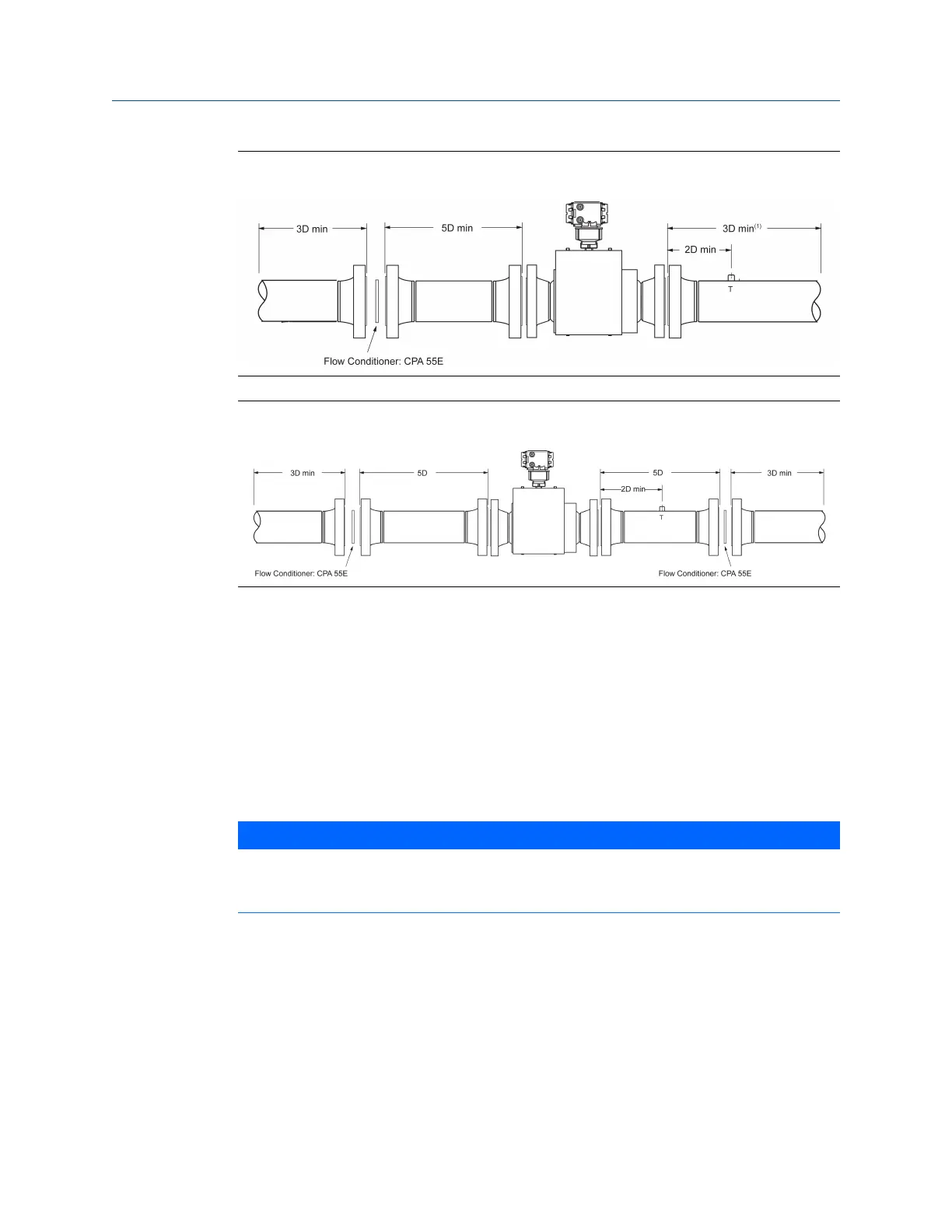

Piping Recommendation for Gas Ultrasonic Meter with Flow Conditioner
(compact installation)
Figure 2-8:
Piping Recommendation Bi-directional Gas Ultrasonic Meter with Flow
Conditioner (compact installation)
Figure 2-9:
All pipe lengths are minimum:
• P = Pressure measurement location
• T = Temperature measurement location
(1) For best results, flow conditioning is recommended
(2) D = Nominal pipe size in inches (i.e., 6 in pipe; 10D = 60 in)
http://www2.emersonprocess.com/en-US/brands/daniel/Flow/ultrasonics/Pages/
Ultrasonic-Series-3400.aspx
NOTICE
To access the product datasheet from the Daniel products page (above link), select the Daniel
Gas Ultrasonic Flow Meter link, click the Documentation tab, expand the Data Sheets - Bulletins
- Catalogs tab, then select the Data Sheet.
• The meter is provided with dowel pins to align the meter body bore with the bore of
the mating piping.
• Daniel 3410 Series Ultrasonic Gas Flow Meters should be mounted in horizontal
piping with the chord paths horizontal.
Mechanical installation
32 Gas Ultrasonic Flow Meter
