• Analog Output 2 (AO2) is user-configurable as a conventional 4-20 mA output - Type
2 CPU Module only
Digital input
The Daniel 3410 Series Gas Ultrasonic Flow Meter provides one digital input that can be
used as a general purpose input. The digital input must be configured via the Daniel
MeterLink Tools|Edit/Compare Configuration screen. DI1Mode must be set to Digital
Input/Calibration Input.
DHCP server switch settings
The meter can be configured to act as a DHCP server. The DHCP server is enabled/disabled
via CPU Module DHCP switch as follows:

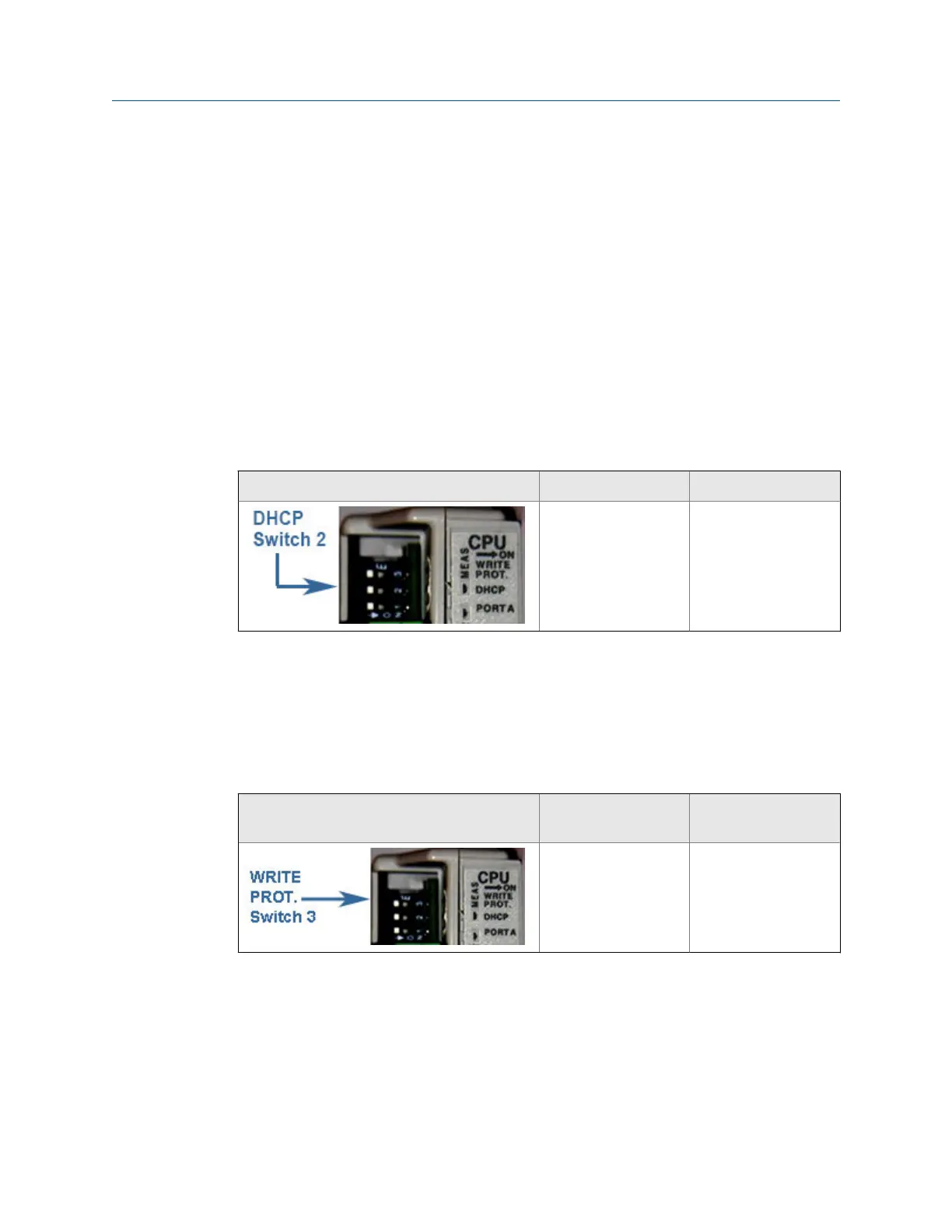

DHCP server switch settingsTable 3-8:
CPU Module switch DHCP server disabled DHCP server enabled
OFF ON
Configuration protect switch settings
The meter’s configuration parameters and firmware can be protected against changes via
the CPU Module WRITE PROT. switch as follows:
Configuration protect switch settingsTable 3-9:
CPU Module switch
Configuration protec-
ted
Configuration unpro-
tected
ON (default setting) OFF
External power source connection and fuse
Located inside the Transmitter Electronics Enclosure is a connector for a user-provided
external power source, a 2 Amp fuse and a 24V loop power connection for ultrasonic
meter analog outputs, temperature transmitter or pressure transmitter devices. The
current is limited to 88mA.
Electrical installation
Installation manual 77
