26 Digitax ST Installation Guide
www.controltechniques.com Issue: 2
Digitax ST EZMotion additional connections

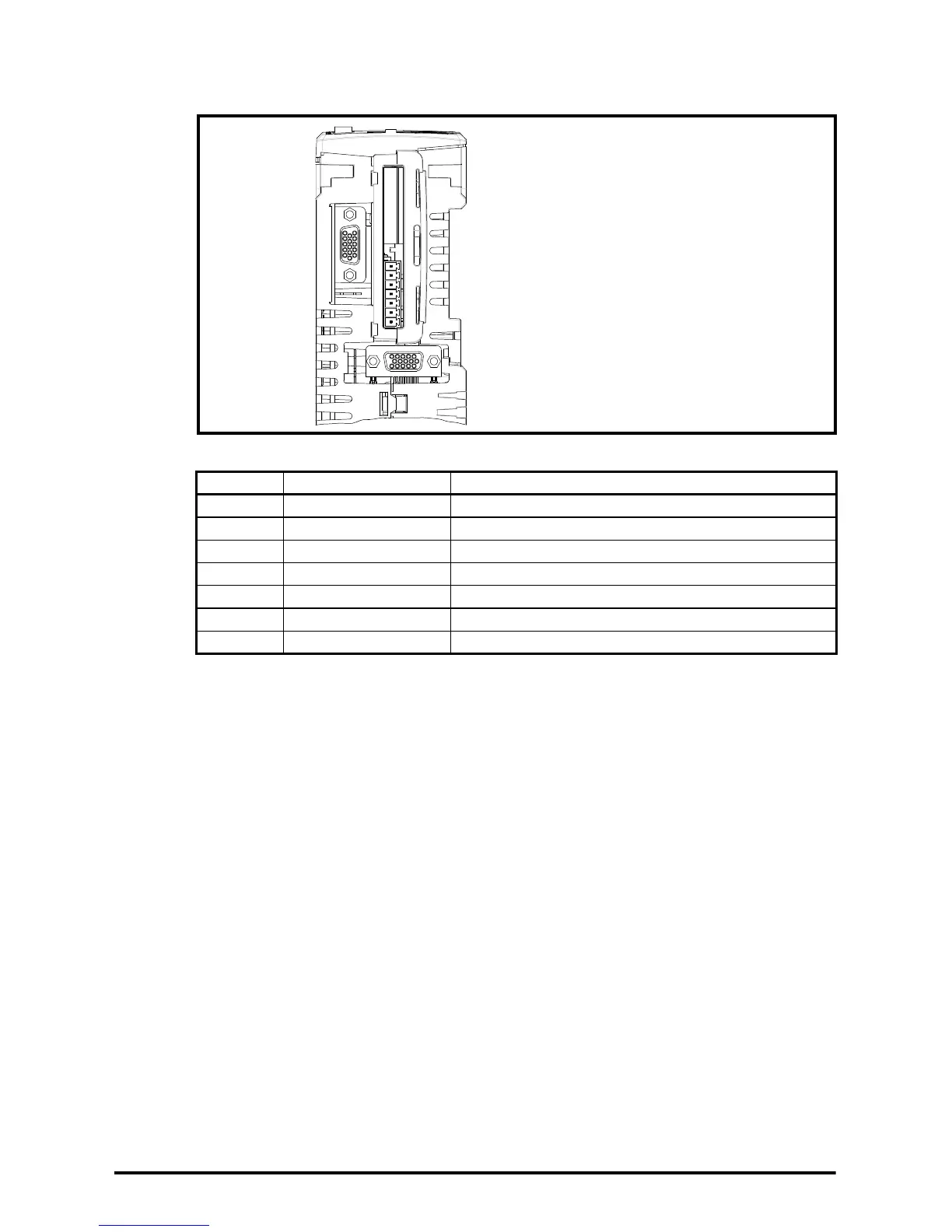

Figure 4-15 Digitax ST EZMotion terminals view
Table 4-6 Digitax EZMotion connector details
Terminal Function Description
1 0V common 0V common connection for digital I/O
2 Input 1 Digital input 1
3 Input 2 Digital input 2
4 Input 3 Digital input 3
5 Input 4 Digital input 4
6 Output 1 Digital output 1
7 Output 2 Digital output 2
Connector specification:
Maximum size cable = 1.5mm
2
Torque = 0.2 N m (1.8 lb in)
