14.2 Analogue input connection
14.2.1 Temperature probes (NTC and PTC)
2-row sensors that do not require polarity to be respected.

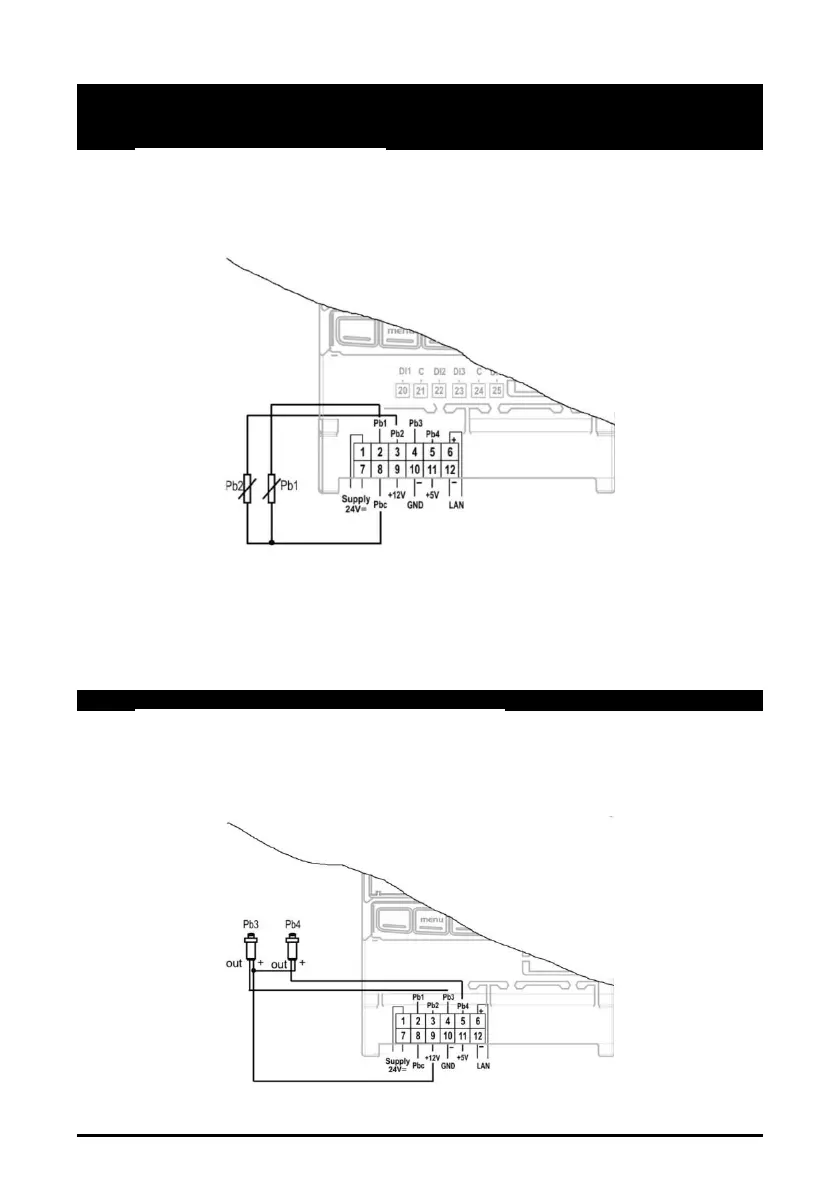

Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the common (PbC)
as shown in the diagram below.
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
- if used as a digital input (potential free - not live), use the same connection configuration as of the
sensors.
14.2.2 Pressure transducers and current probes (4 - 20 mA)
2-row sensors that require +12Vdc power supply.
Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the power supply
(+12V) as shown in the diagram below.
