14.4 LAN CONNECTION
IEV22D or IEV24D can be connected to an IC200 EVO series (IC206CX EVO, IC208CX EVO, IC205D
EVO, IC207D EVO).
Evaporating temperature probe has to be connected to the IEV and suction pressure transducer can be
connected to the IEV or to the Ichill (by configuring dedicated parameters).
To guarantee the best regulation is recommended to connect the suction pressure transducer directly to
the IEV.

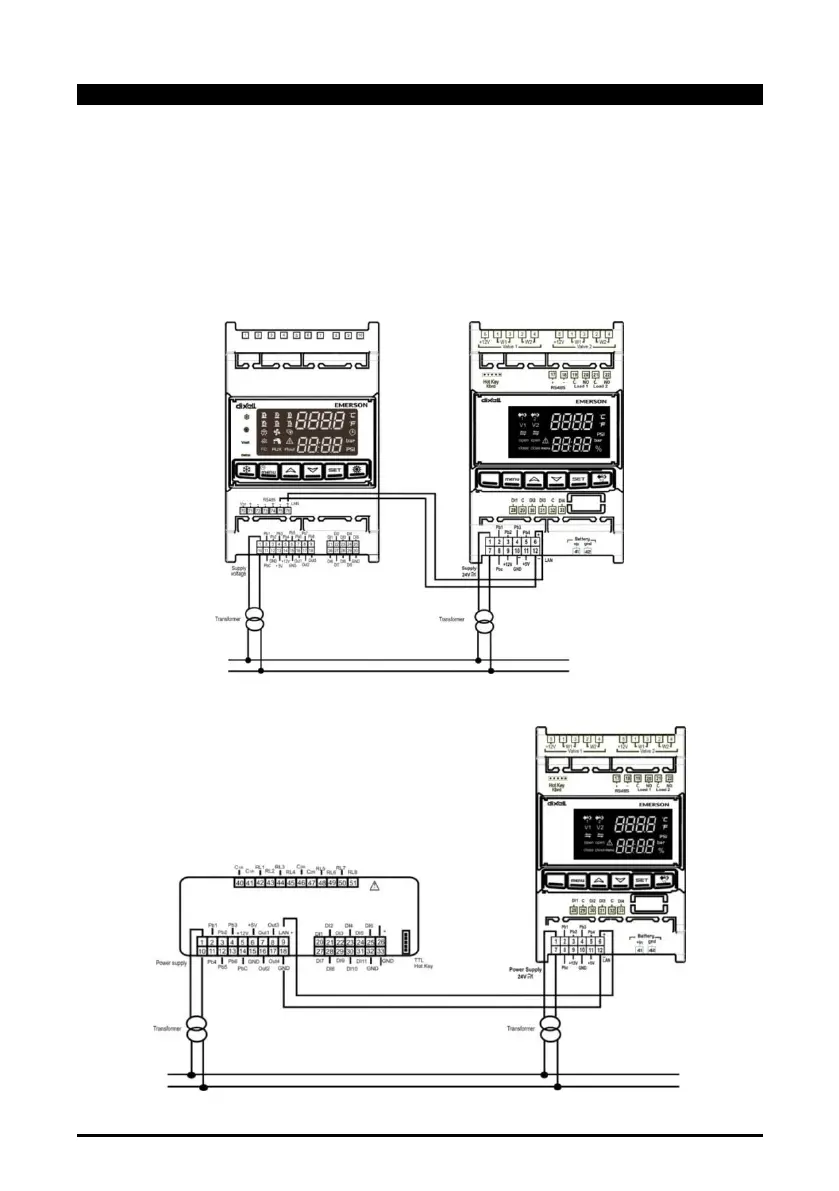

Connection diagram of Ichill 200 EVO 4 DIN and IEV.
Connection diagram of Ichill 200 EVO CX and IEV.
