Press the keys to:

• scroll through the suction temperature, the evaporation pressure, the

superheating value, etc.

• scroll through the parameters and increase/decrease the value of the

parameters being modified

• toggle between the items while browsing the menu

Press this key to access the menu to view the active alarms.

SET +

Press the keys simultaneously for 4 seconds to access the parameter programming

area.

SET +

Press the keys simultaneously to exit from the parameter programming area.

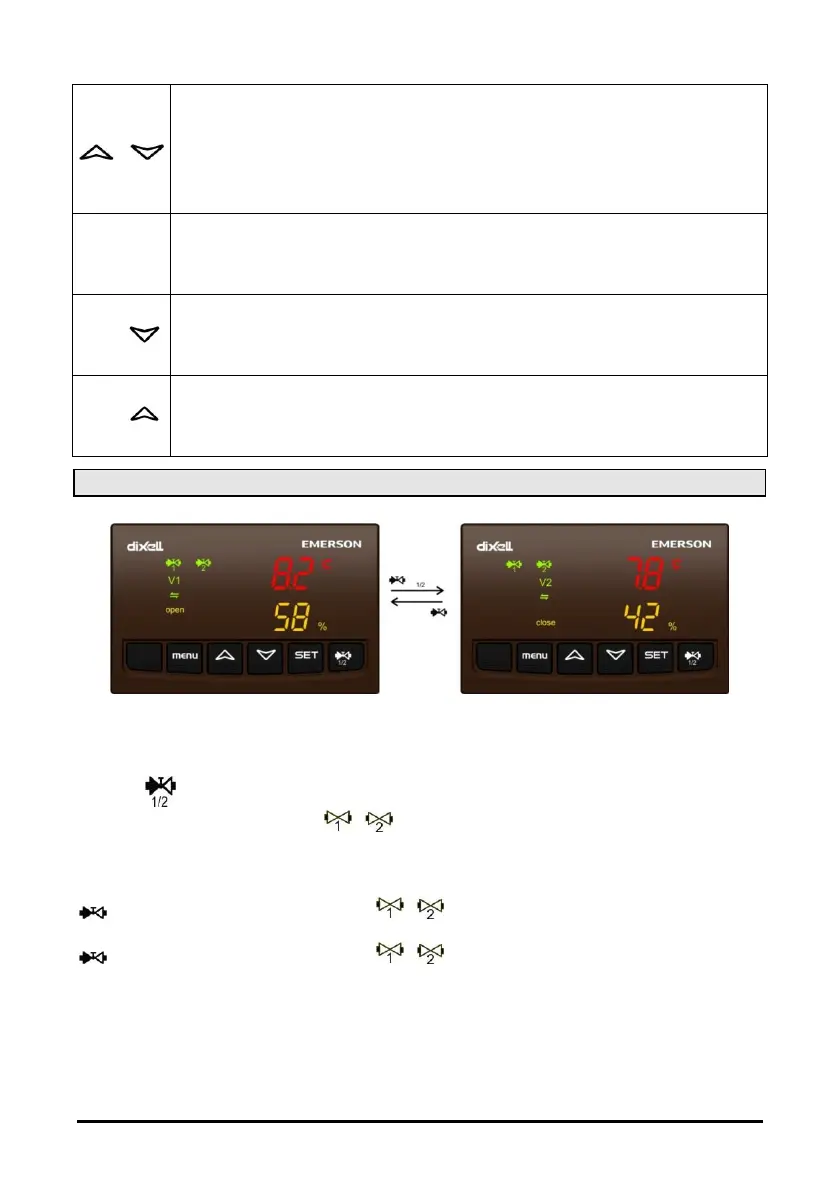

3.3 Screen display

The variables (suction temperature, evaporation pressure, superheating value, opening value of the

valve, etc.) that are to be viewed on the upper and lower displays are selected via the special parameter

(Ec43 and Ec44).

Press the key to view the variables (suction temperature, evaporation pressure, superheating

value, etc.) of valve 1 or valve 2. The icons, which represent the state of the valve (icon ON if

the valve is adjusting), are always displayed, even if the currently displayed variables are those of the

other valve.

If the variables of valve 1 are shown on the display, only the icons belonging to valve 1 are viewed (V1,

, open, close), except for the status icon ( ).

If the variables of valve 2 are shown on the display, only the icons belonging to valve 2 are viewed (V2,

, open, close), except for the status icon ( ).

The alarms are shown in the lower display, regardless whether they belong to valve 1 or 2. The alarms

are shown alternately with the value that appears in the lower display under normal conditions. If the

probe that is to be displayed is in error, "----" appears instead of the value.
