Coplanar Mounting Kit
DANGER
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-
hazardous. Performing this operation in a hazardous area could result in an explosion.

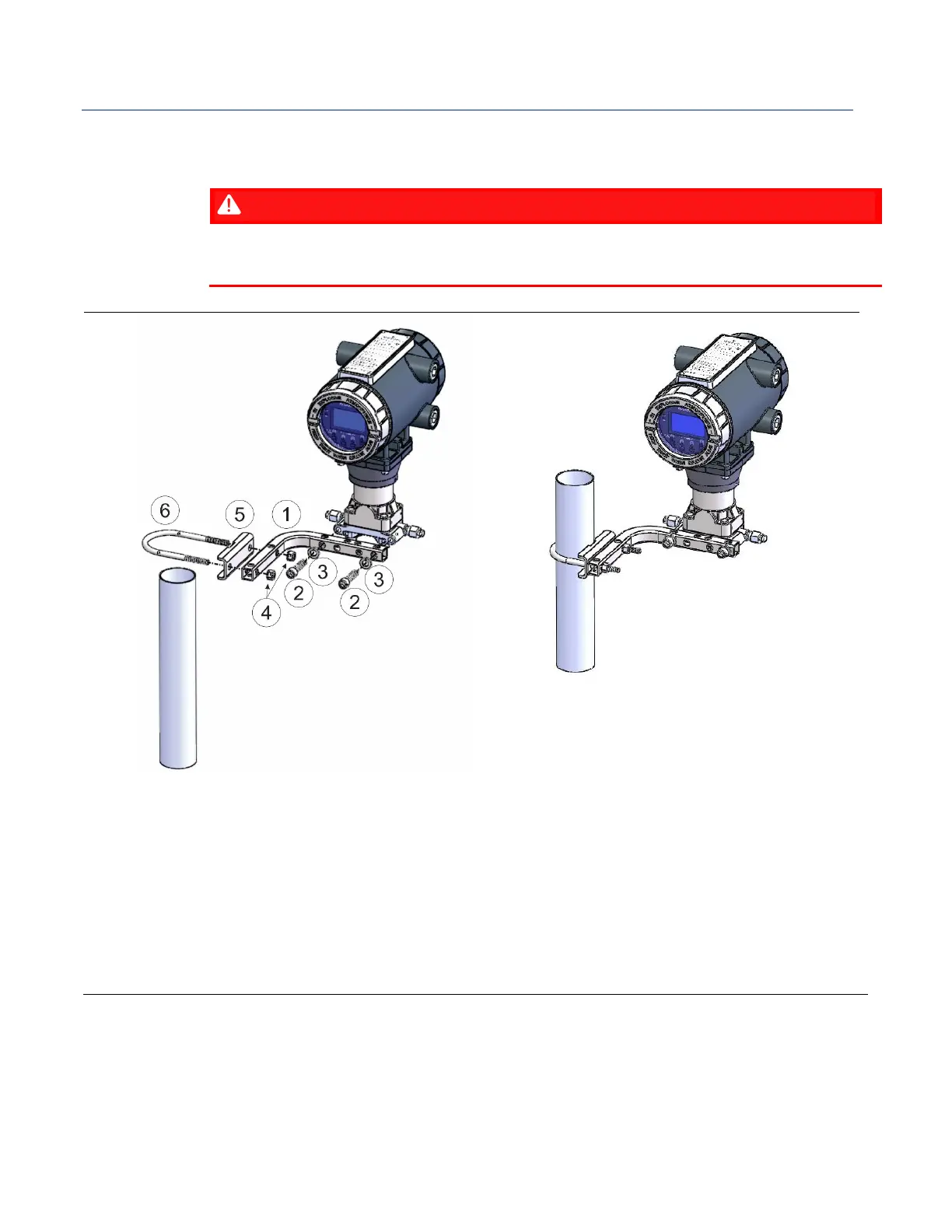

1
Tubular L-shaped bracket
2
3/8-16 x 1 ½ in socket head wire lockable screw (2) – Apply Killark® LUBG-6 anti-seize lubricant to
threads. Torque screws to 30 in-lbs (3.4 N m)
3
Split 3/8 lock washer (2)
4
5/16-18 keps nut (2). Apply Loctite® 222TM Low Strength Purple Threadlocker to nuts. Torque nuts
to 30 in-lbs (3.4 N m)
5
U-bolt bracket
6
2-inch diameter pipe U-bolt
