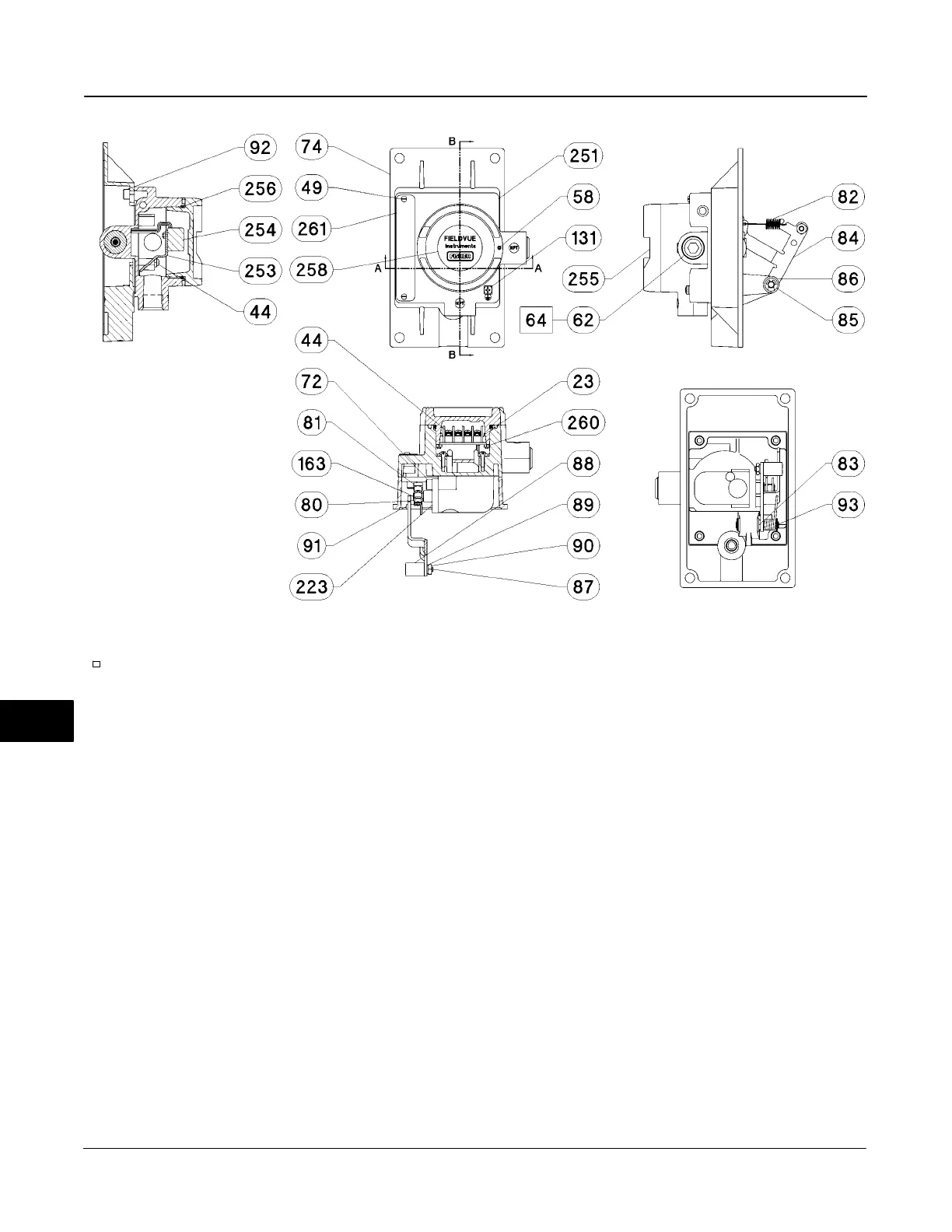

Figure 11-5. Type DVC6025 Digital Valve Controller Assembly
48B7987-A
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
APPLY LUB, SEALANT, THREAD LOCK
SECTION A-A
SECTION B-B
