DVC6000f Series
March 2006
11-14

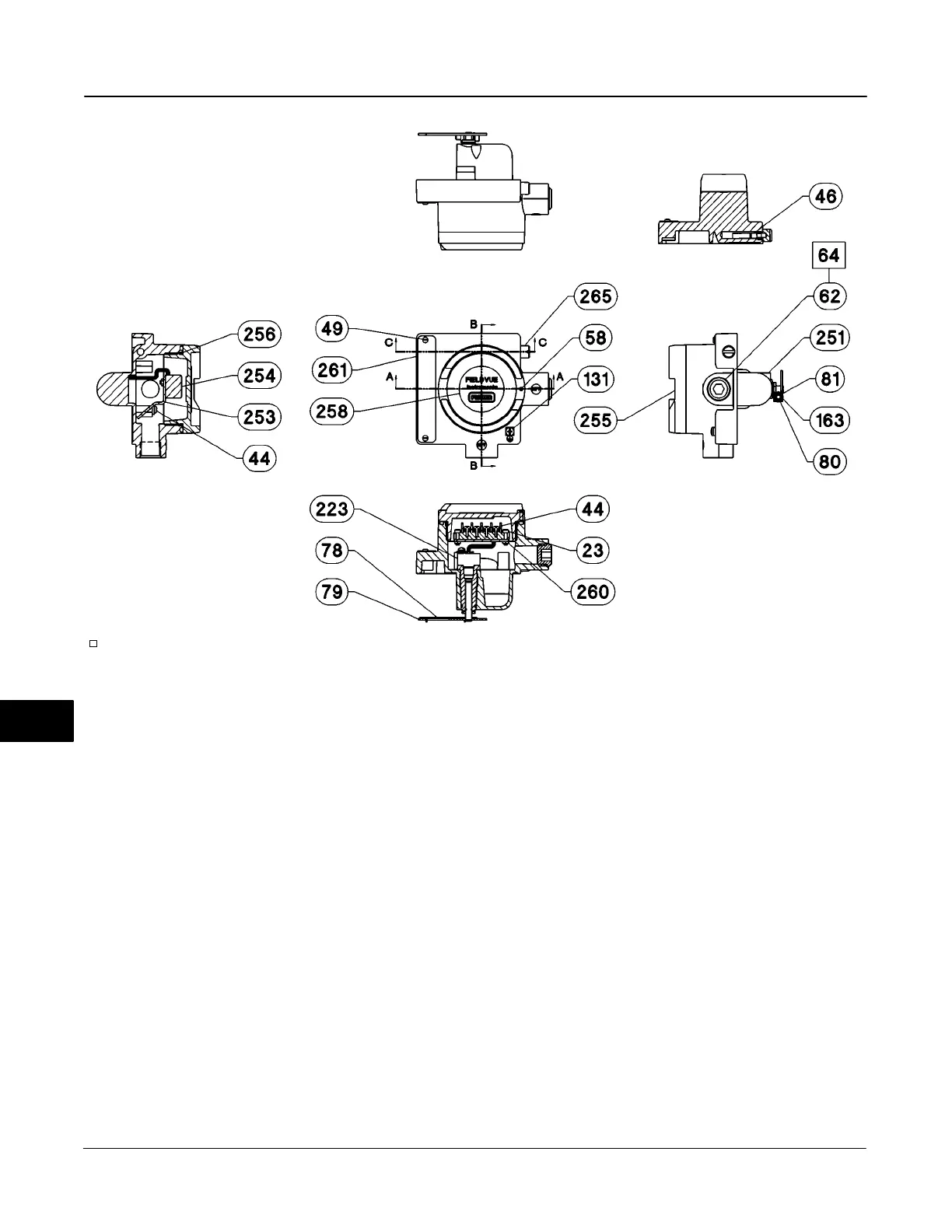

Figure 11-7. Type DVC6035 Digital Valve Controller Assembly
48B7988-A
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
APPLY LUB, SEALANT, THREAD LOCK
SECTION B-B
SECTION A-A
SECTION C-C
11
