Emerson Liebert GXT3 Series User Manual

Installation
16

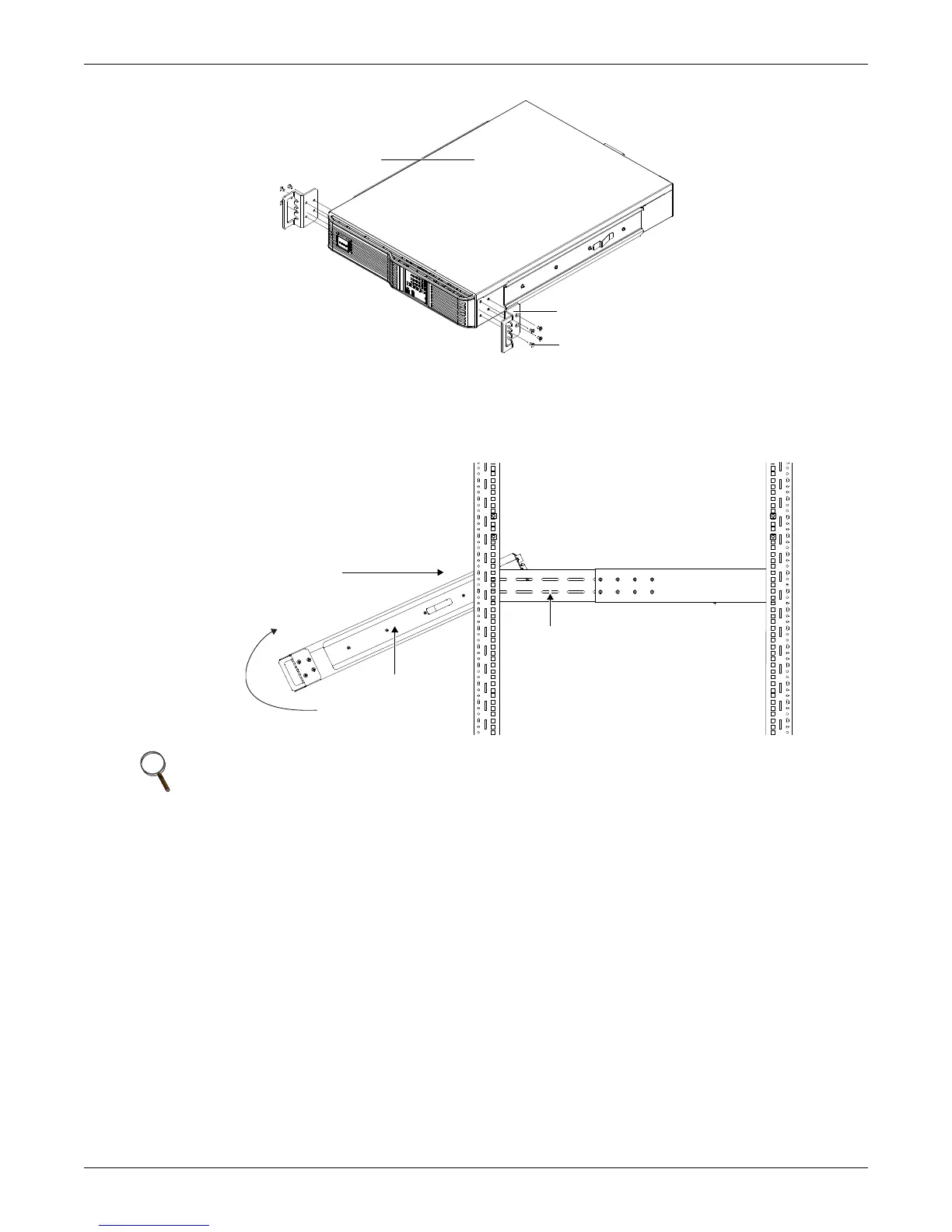

Figure 16 Installing ears
9. Insert the UPS, with inner members attached, into bracket assemblies by inserting top and
bottom edges of inner members into the top and bottom, curved tracks of front members and
sliding the UPS into rack, as shown in Figure 17.
Figure 17 Insert the UPS
10. Through the ears, use M5 screws provided in this kit to secure front of the UPS to rack EIA rails
to prevent the UPS from sliding out of position.
11. If optional Liebert external battery cabinets are connected to the UPS, they can be placed all on
one side of the UPS or stacked beneath the UPS. The installation procedures are the same as
those of the UPS.
NOTE
Ends of inner members are tapered to allow rear of the UPS to be angled upward before
insertion, if space allows.
The UPS should move smoothly into bracket assemblies. If not, recheck alignment of front and
rear members from Steps 4 through 6.
M4 Screw , 8 pieces
Ear, 2pieces
Liebert GXT3 UPS
Inner Member
Front Member
Insert

Emerson Liebert GXT3 Series Specifications

General

Model	Liebert GXT3 Series
Frequency	50/60 Hz
Type	Online Double Conversion
Power Capacity	1kVA to 10kVA
Input Voltage	120V, 208V, 230V (depending on the specific model)
Output Voltage	120V, 208V, 230V (depending on the specific model)
Backup Time	Varies by model and load
Form Factor	Tower/Rackmount
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity	0% to 95% (non-condensing)
Dimensions	Varies depending on the specific model
Weight	Varies by model
Battery Type	Valve-regulated lead acid (VRLA)
