Chapter 1 Overview 3
1.4.2 Mounting Base Dimensions
Mounting base dimensions for horizontal installation
The mounting base figure for horizontal installation is shown in Figure 1-5, and the specific mounting base dimensions
of each model are listed in Table 1-3.
D
D
L'
D
H'
D
Amplified part figure
D
D
Installation holes
(8 holes in total )

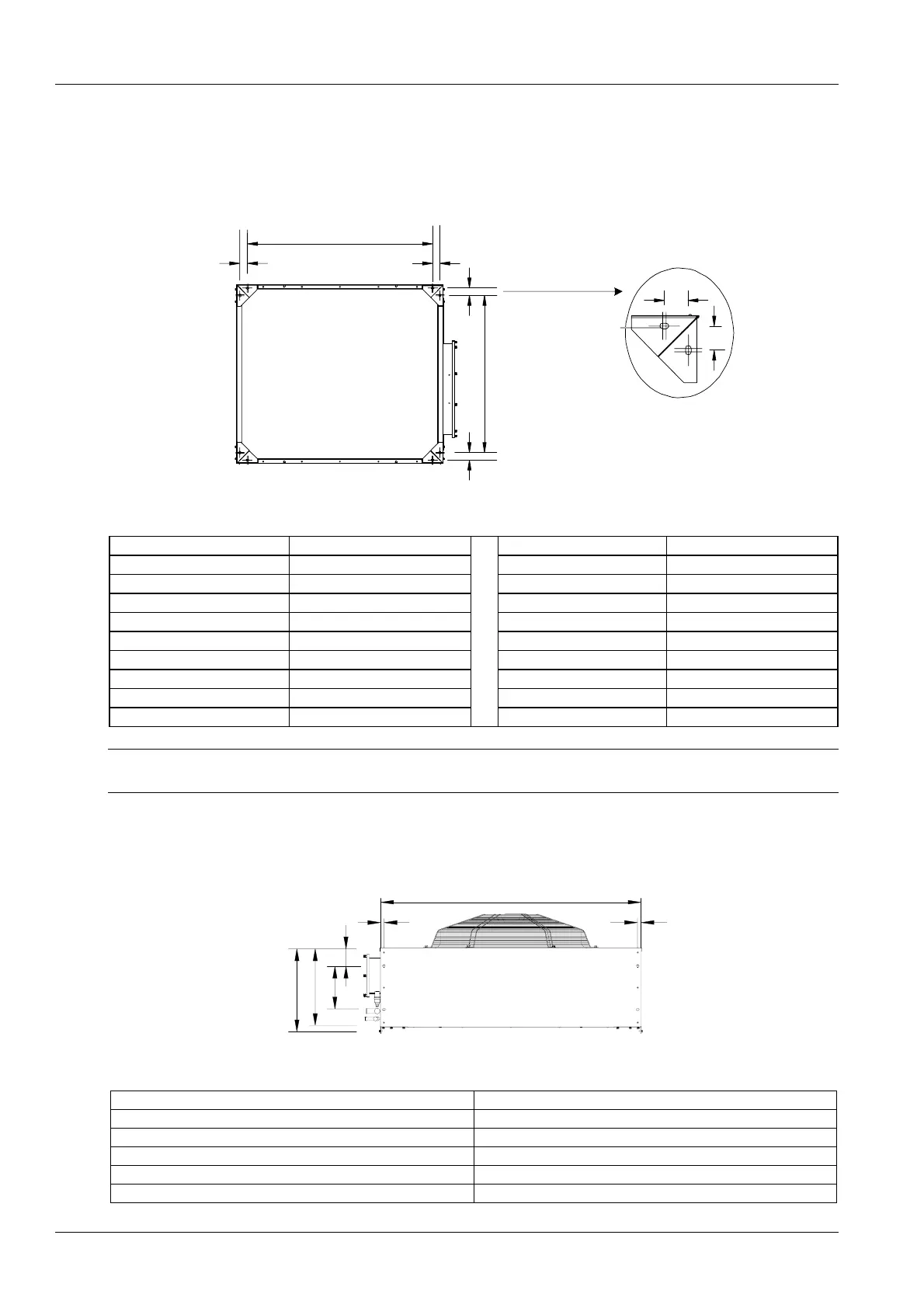

Figure 1-5 Mounting base figure for horizontal installation (unit: mm)
Table 1-3 Mounting base dimensions for horizontal installation (unit: mm)
Model Dimension (L' × H' × D) Model Dimension (L' × H' × D)
LSF12 676 × 837 × 53 LSF76 2126 × 1120 × 53
LSF18 676 × 837 × 53 LSF85 2126 × 1120 × 53
LSF24 1126 × 837 × 53 LDF42 1326 × 1120 × 53
LSF32 1126 × 837 × 53 LDF52 1326 × 1120 × 53
LSF38 1126 × 837 × 53 LDF62 1826 × 1120 × 53
LSF42 1326 × 1120 × 53 LDF72 1826 × 1120 × 53
LSF52 1326 × 1120 × 53 LDF76 2126 × 1120 × 53
LSF62 1626 × 1120 × 53 LDF85 2126 × 1120 × 53
LSF72 1626 × 1120 × 53
 Note
The installation holes are long and flat holes. It is recommended to use M10 × 20 bolts to fix the mounting base.
Mounting base dimensions for vertical installation
The mounting base figure for vertical installation is shown in Figure 1-6, and the specific mounting base dimensions of
each model are listed in Table 1-4.
250
102
452
490
a
2020
Figure 1-6 Mounting base figure for vertical installation (top view) (unit: mm)
Table 1-4 Mounting base dimensions for vertical installation (unit: mm)
Model Dimension ‘a’
LSF12, LSF18 830
LSF24, LDF32, LSF38 1280
LSF42, LDF42, LSF52, LDF52 1480
LSF62, LSF72 1780
LDF62, LDF72 1980
