Chapter 2 Installation
This chapter introduces the moving, unpacking, inspection, installation notes, space requirements and installation
procedures.
2.1 Moving, Unpacking And Inspection
Moving
It is recommended to use the mechanical transport equipment such as a forklift or a crane when unloading and
transferring the condenser closest to the installation site.

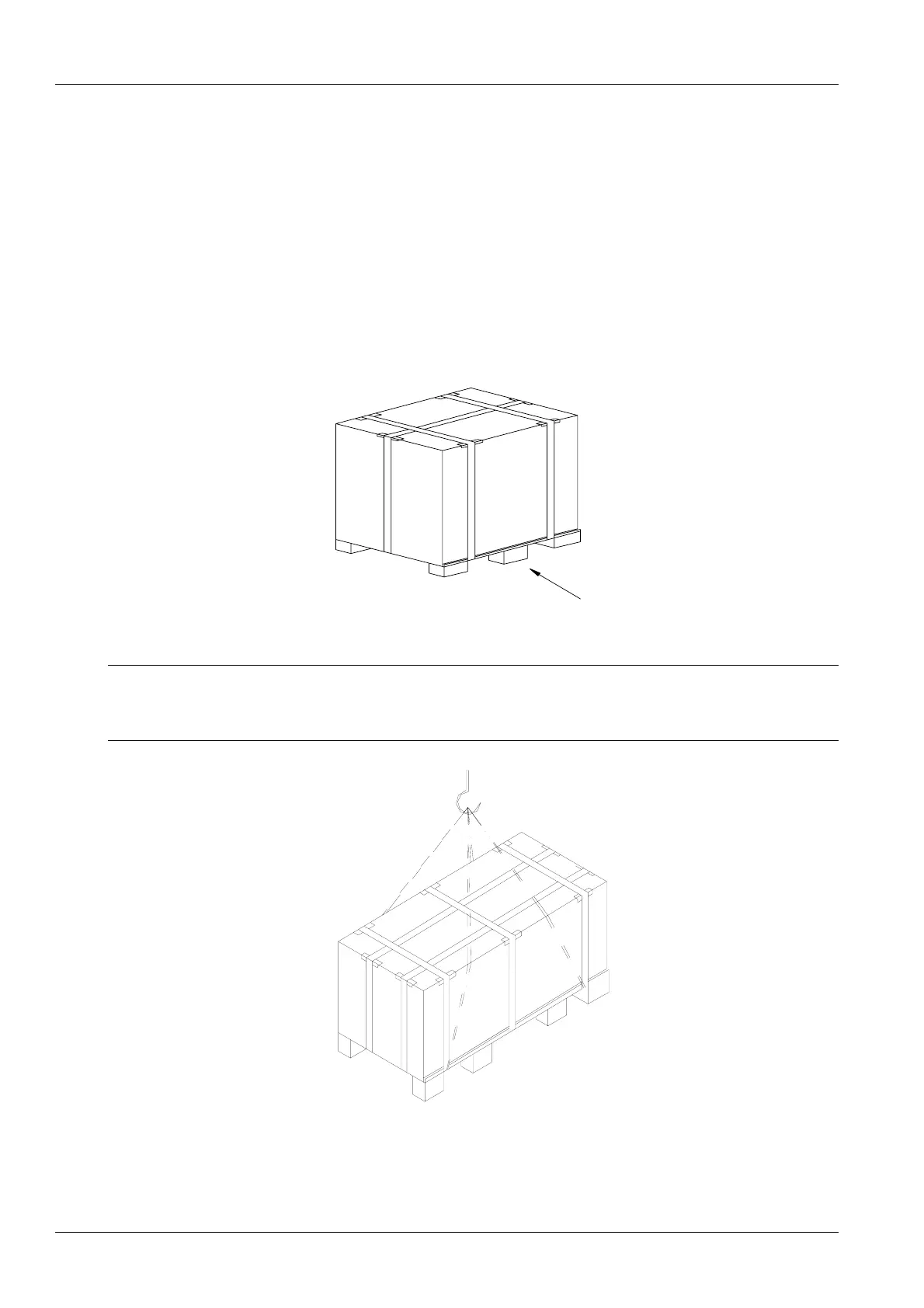

When a forklift is used, insert the tines of the forklift shown in Figure 2-1 (taking the single fan condenser for example).
F
o
r
kl
i
f
t
d
i
r
e
ct
i
o
n
Figure 2-1 Forklift direction
When a crane is used, refer to Figure 2-2 to lift the package (taking the double fans condenser for example).
 Note
When lifting the package, fix the cable by leading it through the slots located at the bottom of the pallet. Otherwise, the cable
may slide during the lifting process, and the package may fall to the ground, damaging the pipes inside and resulting in system
leakage.
Figure 2-2 Crane lifting
Unpacking
Remove the timber frame package and foam of the condenser but reserve the protection cardboard of fins. The
protection cardboard of fins and the cushion pad of U tube located at the end of the condenser should be removed
after the condenser is in its installation position.
Liebert.PEX Condenser User Manual
