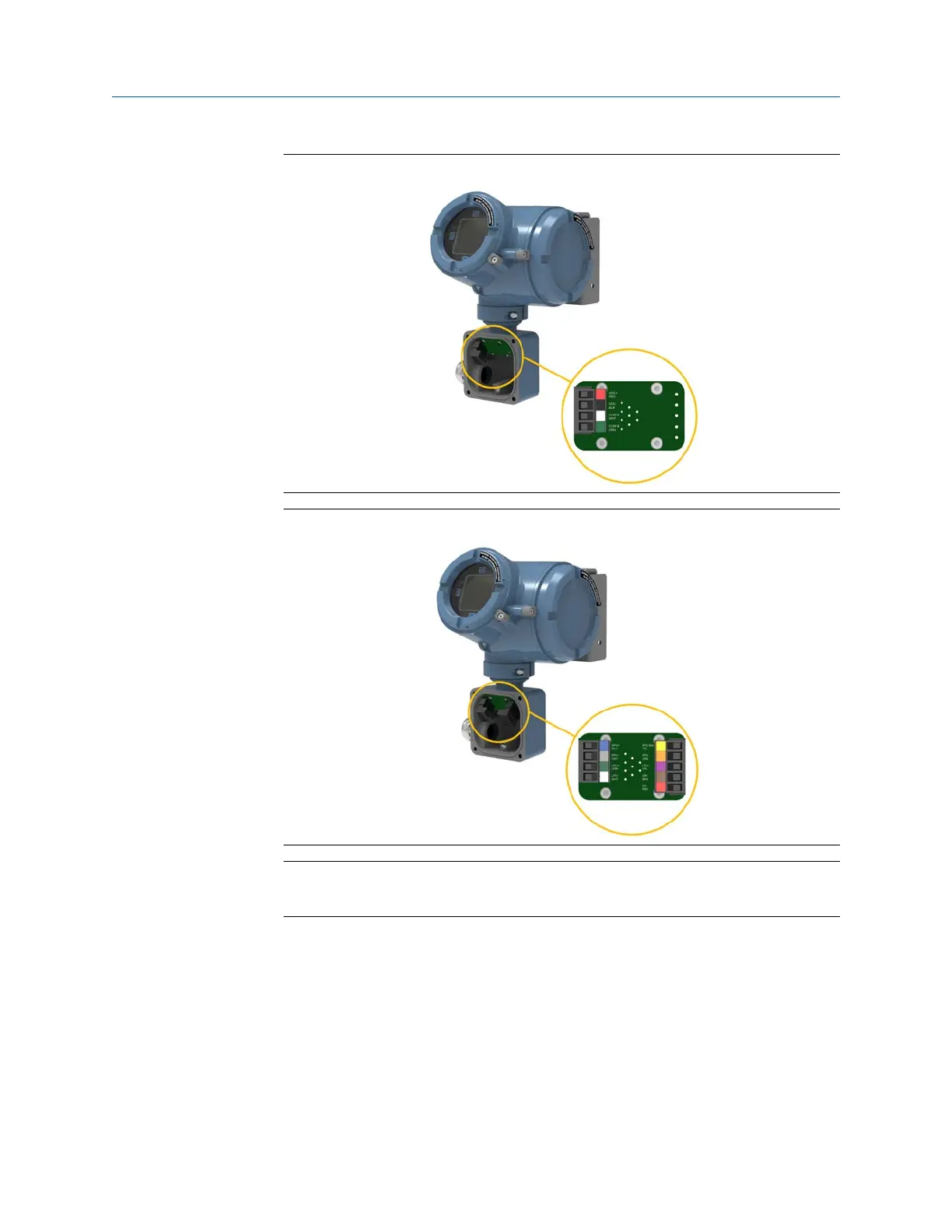

Figure 2-6: Four-wire transmitter-to-sensor wiring connections
Figure 2-7: Nine-wire transmitter-to-sensor wiring connections
Note
Connect the four drain wires in the nine-wire cable to the ground screw located
inside the junction box.
4. Replace the transmitter-to-sensor wiring compartment cover and tighten the screws
to 14in lbf (1.58N m) to 15in lbf (1.69N m).
Mounting and sensor wiring Installation Manual
October2023 00825-0100-5710
16 Micro Motion 4700 CIO Transmitter
