3.3.1 Wire the mA output (internally powered)
Procedure
Wire to the appropriate output terminal and pins.

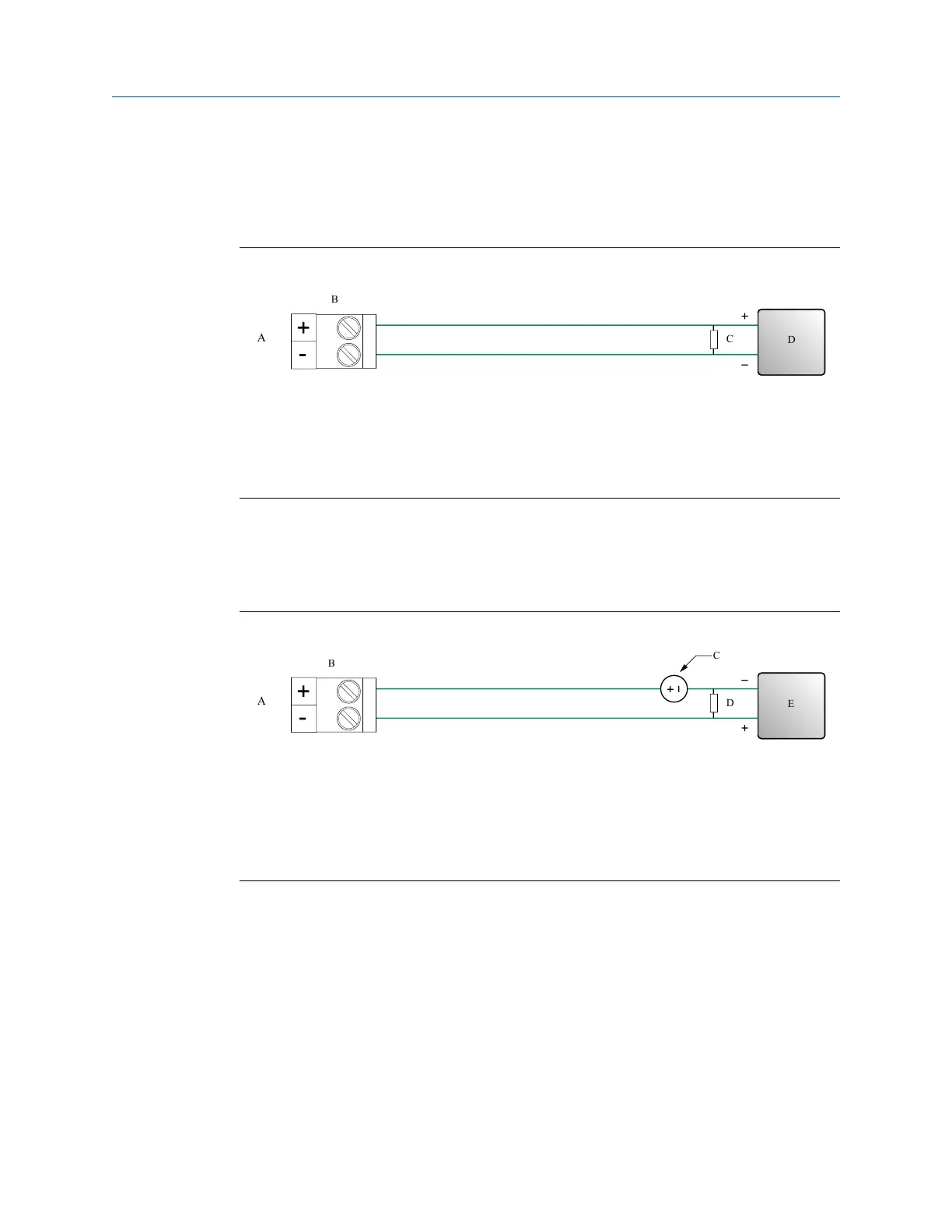

Figure 3-4: mA output wiring (internally powered)
A
D
C
B
A. mA output
B. Channel A or B
C.
820 Ω maximum loop resistance
D. Signal device
3.3.2 Wire the mA output (externally powered)
Procedure
Wire to the appropriate output terminal and pins.
Figure 3-5: mA output wiring (externally powered)
A
E
D
C
B
A. mA output
B. Channel A or B
C.
5–30 VDC (maximum)
D. See Figure 3-6 for maximum loop resistance
E. Signal device
