Table 1-1: Installation types for 4700 transmitters
Code Description
I Integral mount painted aluminum
R Remote mount 4-wire
C Remote mount 9-wire

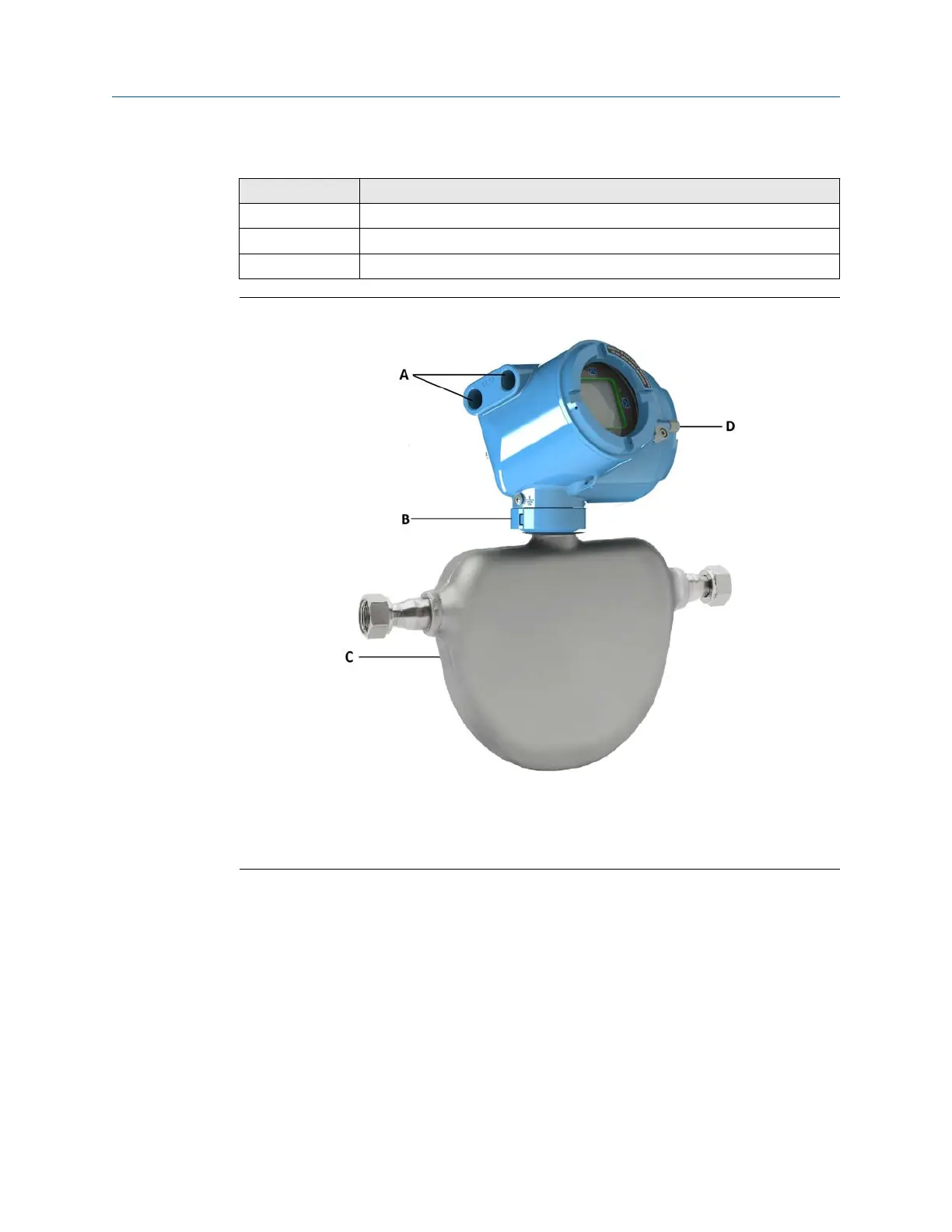

Figure 1-2: 4700 transmitter painted aluminum -- Integral mount
A. Conduit openings
B. Clamping ring
C.
Sensor case
D. Transmitter housing cover (hidden from view)
The transmitter is installed directly on the sensor.
Planning Installation Manual
October2023 00825-0100-5710
