Procedure
Expand the main process pipe using any of the following options.
Vertical pipe with concentric reducer Figure 3-2
Horizontal pipe with concentric reducer Figure 3-3
Horizontal pipe with eccentric reducer Figure 3-4

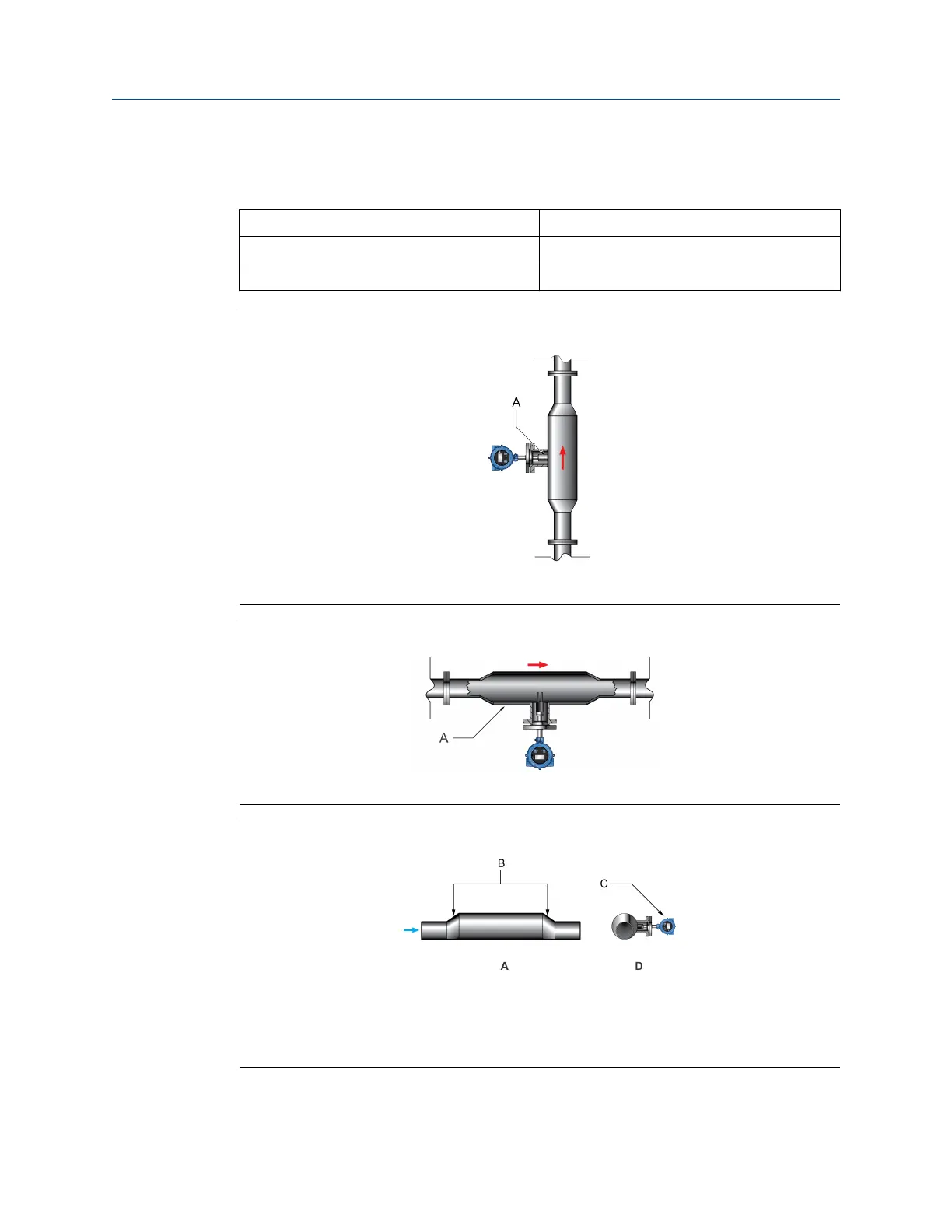

Figure 3-2: Option 1: Vertical pipe with a concentric reducer
A. FDM directly inserted into the flow
Figure 3-3: Option 2: Horizontal pipe with concentric reducers
A. Top view of horizontal pipeline
Figure 3-4: Option 3: Horizontal pipe with eccentric reducers
A. Side view of horizontal pipe (meter is on the opposite side)
B. Eccentric expanders/reducers
C. Meter inserted into the flow in an expanded pipe
D. Inside view of pipe and meter
Installation Manual
Mounting
MMI-20020989 May 2019
Installation Manual 19
