Emerson Micro Motion FDM

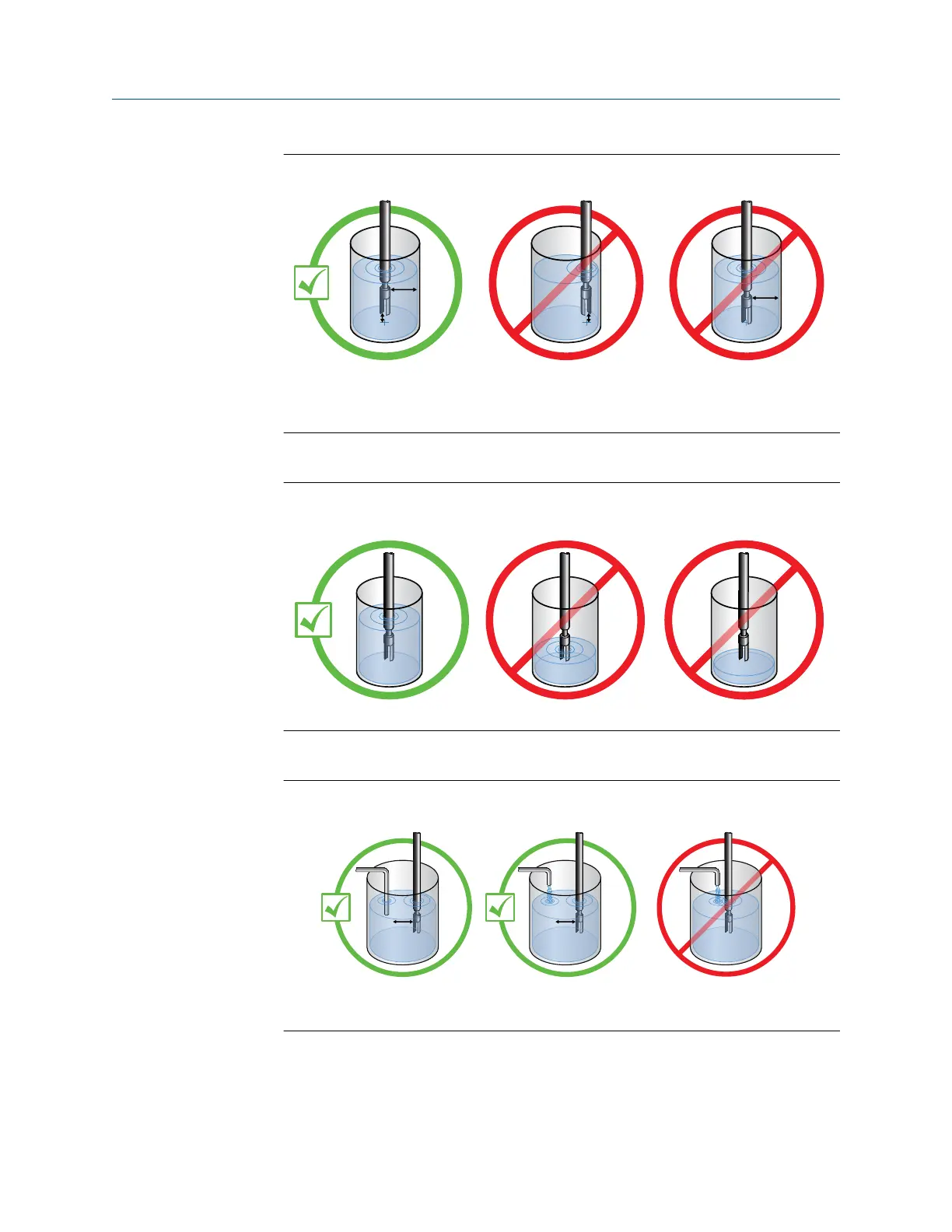

Figure 3-13: Meter placement (away from tank wall)
B
A
A
B
A. 2 in (51 mm)
B. 7.87 in (200 mm)
3. Confirm the meter tines are immersed in fluid.
Figure 3-14: Meter placement (immersed in fluid)
4. Confirm the meter tines are placed away from objects and disturbed flow.
Figure 3-15: Meter placement (distance from objects and disturbed flow)
AA
A. 7.87 in (200 mm)
5. If flow exists, confirm the meter tines are aligned so that the flow is directed
towards or through the gap between the tines.
Mounting
Installation Manual
May 2019 MMI-20020989
30 Micro Motion Fork Density Meter
