Model D and DT Sensors Instruction Manual 59
Appendix
B Rupture Disk
Using the rupture disk
The primary reason for having a rupture disk is to vent process fluid from
inside the sensor case, should the sensor flow tube rupture in a high-
pressure application. Some users, such as those measuring high-
pressure gases, install a pipeline at the rupture disk fitting, to help
contain escaping process fluid. This provides additional protection
should a rupture occur.
For more information, contact the Micro Motion Customer Service
Department:
• In the U.S.A., phone 1-800-522-MASS (1-800-522-6277), 24 hours
• In Canada and Latin America, phone +1 303-527-5200 (U.S.A.)
• In Asia, phone +65 6777-8211 (Singapore)
• In the U.K., phone 0870 240 1978 (toll-free)
• Outside the U.K., phone +31 (0) 318 495 555 (The Netherlands)
• Or visit our website at www.micromotion.com.

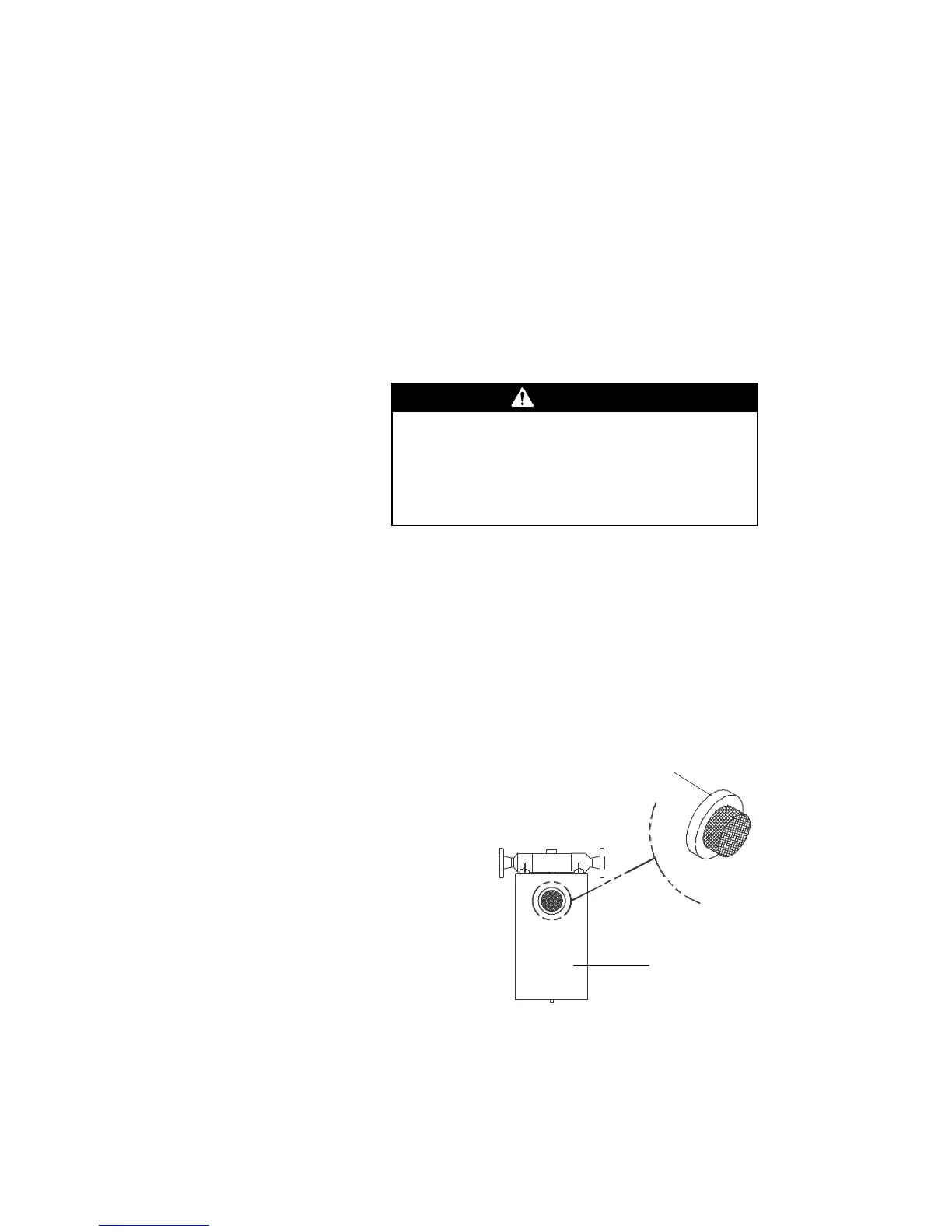

Rupture disk
WARNING
Pressure Relief Zone.
Escaping high-pressure fluid can cause severe injury
or death.
Stay clear of rupture disk pressure-relief area.
Rupture disk
assembly
Sensor
case
